Simplex 4005 Manual

ALARM

RED LED FLASHES AND TONE-ALERT PULSES

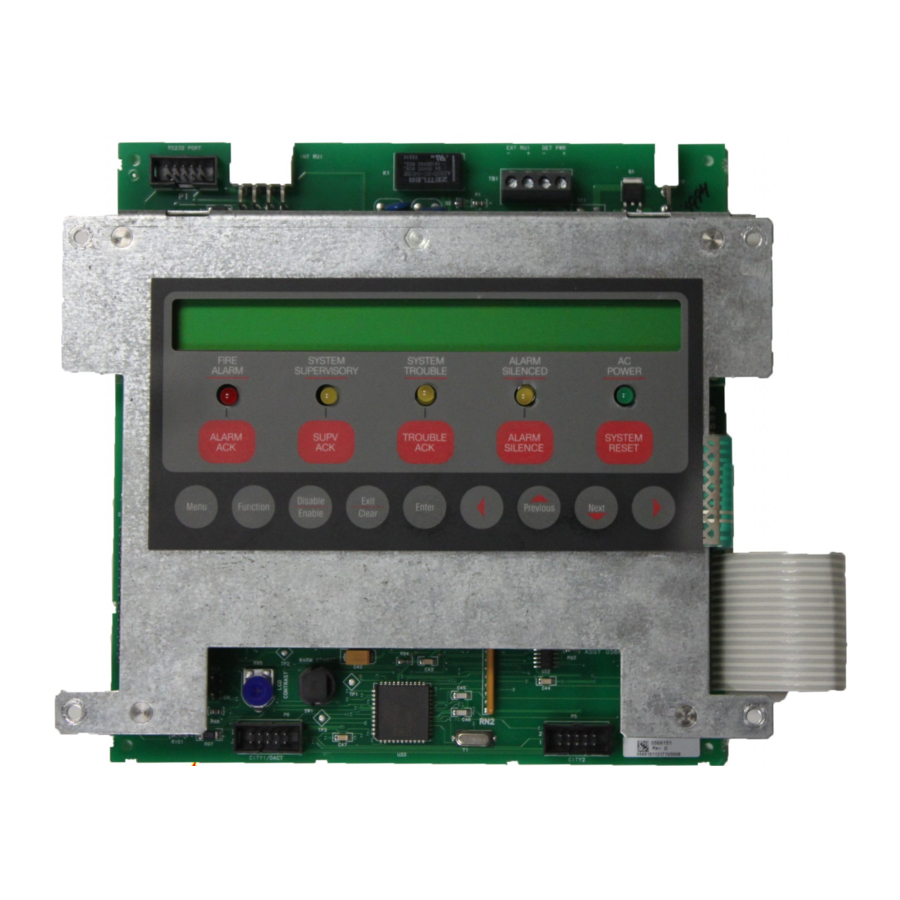

1. Unlock and open the panel door. Read and follow the instructions on the display. It will toggle between Screens 1 and 2.
   SCREEN 1

   SCREEN 2

2. Press the (ALARM ACK) key under the flashing red LED. Read the alphanumeric display.
   • The tone-alert is silenced and the display shows pertinent report information, such as shown in Screen 3.
     SCREEN 3

3. Read the Alarm Information on the display. Summon appropriate personnel to respond.
   HOW TO SILENCE THE SIGNALS
4. Press the (ALARM SILENCE) key and read the display. The alphanumeric display shows signal status.
   • ALARM SILENCED LED turns ON.

HOW TO RESET THE SYSTEM

5. When the alarm condition has been cleared, restore or replace all affected devices (smoke detectors, pull stations, etc.) in accordance with the instructions provided with each device.
6. Reset the system.
   • Press the (SYSTEM RESET) key.
     The system displays Screen 4 after a completed System Reset with no alarms present.
     SCREEN 4

7. Press any key to return to the SYSTEM NORMAL screen.

TROUBLE/SUPERVISORY

YELLOW LED FLASHES AND TONE-ALERT SOUNDS

Note: A Trouble Condition is described in this example. A Supervisory Condition is handled in a similar manner.

1. Unlock and open panel door. Read and follow the instructions on the display (see Screen 1 for an example).
   SCREEN 1

2. Press the (TROUBLE ACK) key under the flashing yellow LED. Read the Trouble information on the display (see Screen 2 for an example).
   SCREEN 2

3. Summon appropriate personnel to respond.
4. Ensure that response personnel restores or replaces the defective device (switch, wire, notification appliance, etc.) in accordance with device instructions.
   • If necessary, press (SYSTEM RESET) when the abnormal condition has been corrected.
   • After a short delay, the system returns to normal and displays a screen similar to Screen 3.
     SCREEN 3


Note: If your system configuration does not match this sheet, consult Simplex for specific operations. Simplex is listed in the Yellow Pages.
THESE INSTRUCTIONS ARE INTENDED TO BE FRAMED AND MOUNTED ADJACENT TO THE CONTROL PANEL FOR READY REFERENCE.
