UL, ULC, CSFM Listed;
FM, NYC Fire Dept Approved*
Features
Flexible standard combination of addressable
initiation and addressable notification
4.3" (109 mm) Diagonal color touchscreen display:
 Convenient and intuitive user interface provides detailed
system status and individual point information
 Supports dual language selection, including unicode
character languages
 A custom background display appears when operation is
normal (see page 7 for details)
Includes a 3 A IDNAC SLC (signaling line circuit)
output power supply that provides enhanced power
delivery to addressable notification appliances:
 A constant 29 VDC source voltage is maintained during
alarm, even during battery operation, allowing strobes to
operate at higher voltage with lower current and ensuring
a consistent current draw and voltage drop margin under
both primary power and secondary battery standby
 Efficiencies include lower strobe currents, wiring
distances up to 2 to 3 times farther than with conventional
notification, support for more appliances per IDNAC SLC,
and smaller gauge wiring. This provides installation and
maintenance savings. with high assurance that appliances
will operate as normal during worst case alarm conditions
 IDNAC SLCs are compatible with both TrueAlert ES and
TrueAlert addressable notification appliances, and remote
4009 IDNAC Repeaters to extend power and wiring
distance even farther and provide for up to 127 addressable
notification appliances
 Power supply provides battery backup charging of up to
33 Ah; up to 18 Ah for cabinet mounted batteries and up
to 33 Ah batteries for mounting in close-nippled remote
battery cabinet
Electrically isolated IDNet+ addressable initiating
device SLC:
 Provides built-in short circuit isolation for monitoring
and control of TrueAlarm analog sensors and IDNet
communications monitoring and control devices; for use
with either shielded or unshielded, twisted or untwisted
single pair wiring; outputs are Class A or Class B
 Standard panel SLC provides up to 100 addressable
points; optional additional loop expansion modules
provide an additional isolated loop with short circuit
isolation for the IDNet+ channel; each loop expansion
module also provides an additional 75 addressable points
to the IDNet+ channel capacity for a total of up to 250
addressable points
Software Feature Summary:
 Current and previous panel configuration are both
maintained in on-board memory to allow easy selection
of desired revision
 An internal Ethernet service port and an internal serial
service port are available for service computer
connections to perform configuration updates,
downloads and uploads; report downloads, and system
software updates (Ethernet port only); the serial port
provides the connection for the optional TrueInsight
Module
4007ES Fire Control Panels
Fire Detection and Control with Addressable
Initiation and Addressable Notification

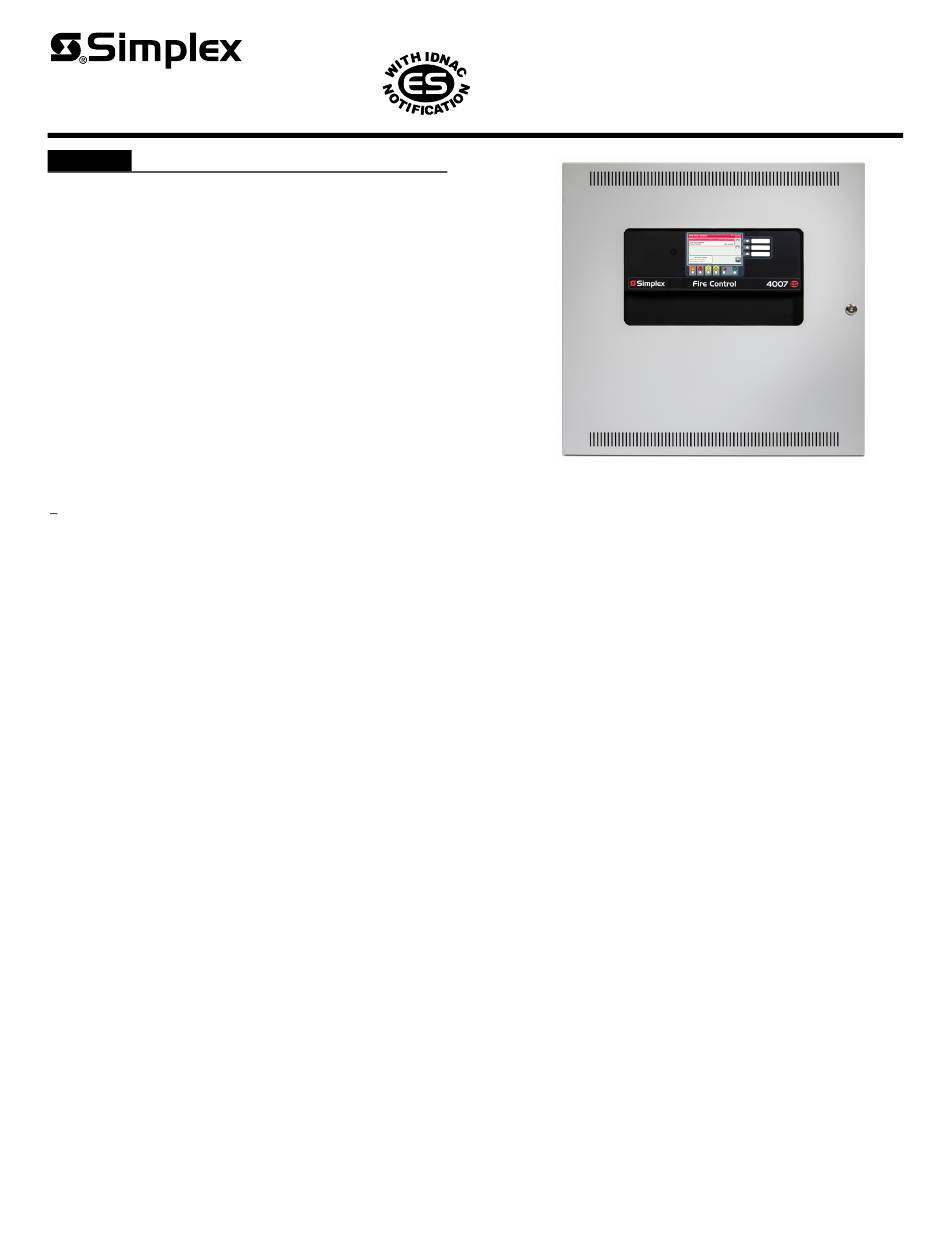

4007ES Panel Front View
Software Feature Summary (Continued):
 An internal USB interface allows a compatible portable
memory device (memory stick/thumb drive) to store job
revisions, update revised jobs and panel software, and
save detailed system reports from the panel without
requiring a service computer
Optional modules and connections include:
 Point or Event DACT assembly that is compatible with
IP Communicators
 Up to two additional IDNet+ addressable device output
loop connections with short circuit fault protection and
with 75 additional point capacity each
 Front mounted 48 LED annunciator with custom label
inserts provides 24 Yellow LEDs, 20 Red LEDs, and
4 Red/Green LEDs; LEDs are programmable for up to
24 IDC zones of alarm and trouble annunciation or as
required for custom annunciation requirements
 Dual Class A IDNAC Isolator (DCAI)
 Remote LED annunciator support via RUI (remote unit
interface) communications port for use with unshielded,
twisted pair wiring (UTP)
 Eight Point Zone/Relay Modules individually selectable
as IDC or relay rated 2 A @ 30 VDC (resistive)
 Alarm relays and auxiliary relays
 City connections, with or without disconnect switch
 4003EC Voice Control Panels
 4009 Series IDNAC Repeaters
 Battery brackets for seismic area protection (see page 2)
General Mechanical:
 Compact red or platinum cabinet for convenient surface
or semi-flush mounting; rated NEMA 1 and IP30
4007ES Listings reference:
 UL 864, Fire Detection and Control (UOJZ)
 ULC S527, Control Units for Fire Alarm Systems
* This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listing
7165-0026:0378 for allowable values and/or conditions concerning material presented in this
document. NYC Fire Dept COA #6151. Additional listings may be applicable; contact your
local Simplex product supplier for the latest status. Listings and approvals under Simplex
Time Recorder Co. are the property of Tyco Fire Protection Products.
S4007-0002-6 11/2015
