Eclipse Additional Information
If you want to edit an existing test sequence, select it from Selected protocol, instead of selecting New. You
have the option to save an edited test with a new protocol name, thus preserving the original protocol.
If you have started the process of creating or editing a test and you want to abort the action press Cancel.
To delete an automated test sequence from the list of predefined tests you must select it in the Selected
protocol window, and then press Delete.
Press OK to save the new test sequence after you have designed it. If you want to abort this setup box with-
out causing any changes what so ever, press Cancel in the lower right corner.

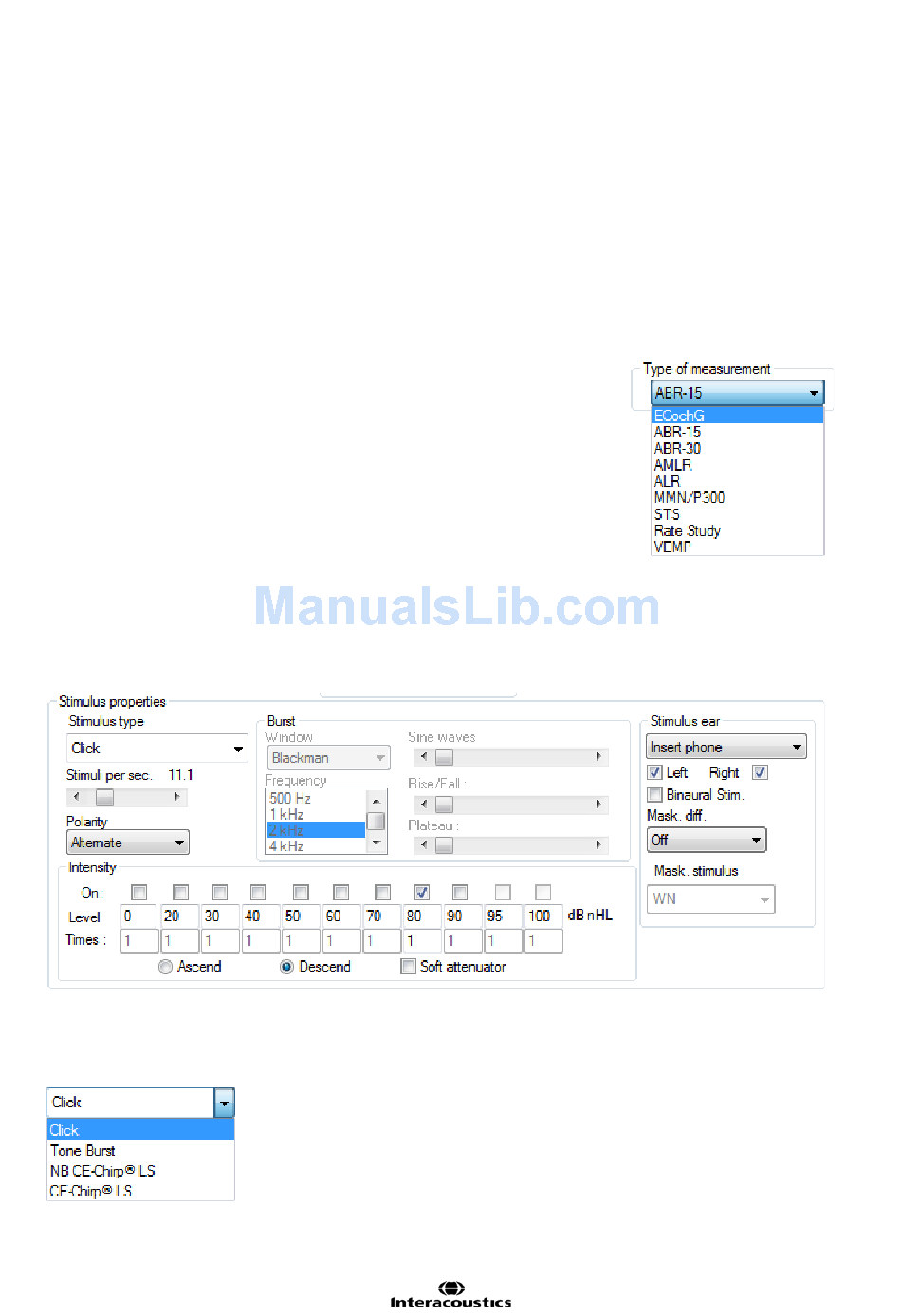

3.7.1.2 Type of measurement

This is where you assign which type of test you want. The tests vary in features available as well as the
length of the recording window: the maximum recording window (epoch) associated with each test type are
as follows:
ECochG: 15ms
ABR-15: 15ms
ABR-30: 30ms
AMLR: 150ms (only if it is included in your license)
ALR: 980ms (only if it is included in your license)
MMN/P300: 980ms (only if it is included in your license)
STS: 45ms recording window with multiple stimuli, each 5 ms apart
(only if it is included in your license)
VEMP: 150ms (only if it is included in your license)

3.7.1.3 Print Wizard

The Print Wizard lets you modify the print out for the selected protocol. Please refer to the section Printing for
a detailed description of the functionally for the Print Wizard.

3.7.1.4 Stimulus properties

Stimulus type
From the drop down four different stimulus options are available. The NB CE-Chirp® LS and CE-Chirp® LS
are optional for the EP15 module and included in the EP25 module. If you have added wavefiles yourself
they will appear from the list (only if the research license is bought).
Page 37
