Eclipse Additional Information
Depending on the settings in the Auto Protocol Setup the display of X, Y and Z or I', III' or V' can be
selected instead of CR, RA and INC.
3. Rearrange curves arrange curves with equal distance between them.
4. Extending test time: The test time can be extended with a number of sweeps.

3.4.5.3 Right click on the curve handle

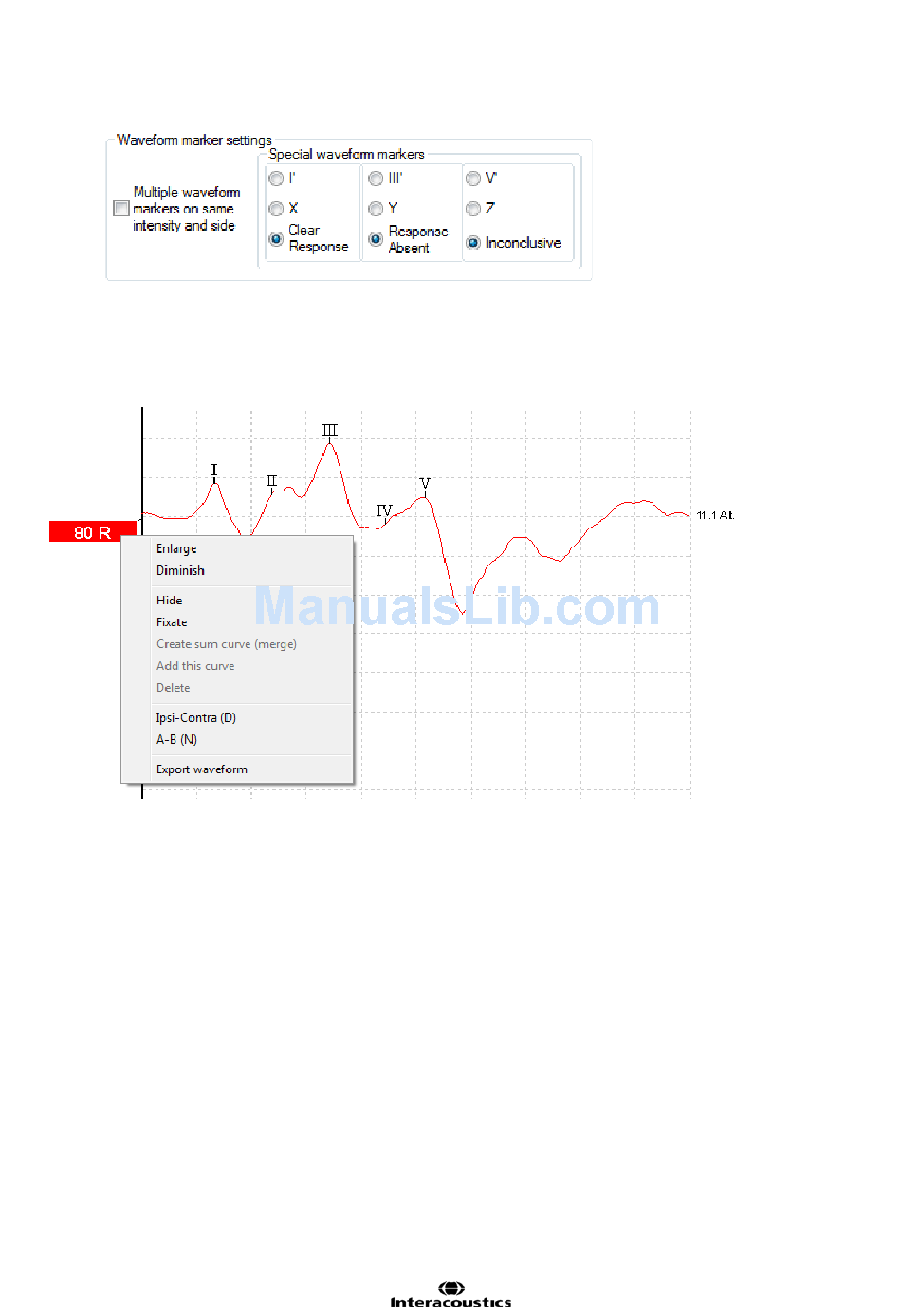

The following appears when right clicking on the curve handle.
Enlarge and Diminish (Changing Display Gain for this Curve only): This is a handy feature to apply
when closely examining a single curve. Other curves on the screen will remain unchanged so as to not im-
pinge on the curve under examination.
Identical functions are available by using Crtl + the arrow keys on the keyboard following the right click and
selection of Enlarge or Diminish.
Hide (Hiding a Curve): This will hide the curve from the screen. The handle remains to indicate the pres-
ence of the hidden curve. Repeating the operation will bring the curve back on the screen.
Fixate (Comparing a Curve to a previous historic session): The fixated curve may be compared to previ-
ous sessions which are brought forward by selecting the PgUp or PgDn keys on the keyboard or by toggling
between sessions with the arrows in the toolbar (see picture below). This function is not available if you have
entered Edit mode directly from the database. A fixated curve will appear with "n" added to the curve handle
e.g. 60n R and the curve will be grey. Only data sessions that are comparable to the fixed curve will be
shown when toggling. To display all sessions again the fixated curves must be "unfixated" by right clicking on
the handle and clicking on "unfixate".
Page 26
