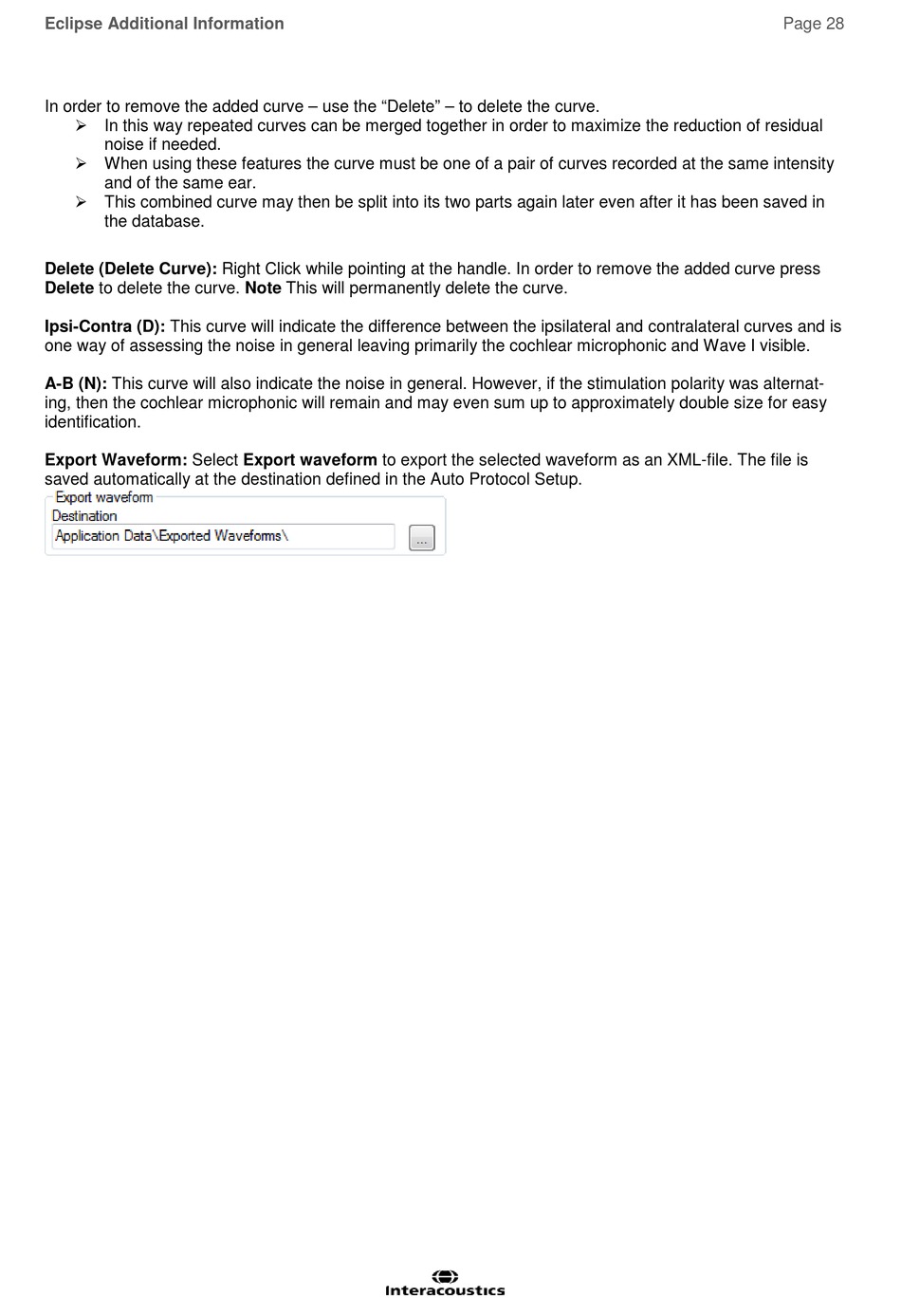

Interacoustics Eclipse Additional Information page 38

Eclipse Additional Information
In order to remove the added curve – use the "Delete" – to delete the curve.
 In this way repeated curves can be merged together in order to maximize the reduction of residual
noise if needed.
 When using these features the curve must be one of a pair of curves recorded at the same intensity
and of the same ear.
 This combined curve may then be split into its two parts again later even after it has been saved in
the database.
Delete (Delete Curve): Right Click while pointing at the handle. In order to remove the added curve press
Delete to delete the curve. Note This will permanently delete the curve.
Ipsi-Contra (D): This curve will indicate the difference between the ipsilateral and contralateral curves and is
one way of assessing the noise in general leaving primarily the cochlear microphonic and Wave I visible.
A-B (N): This curve will also indicate the noise in general. However, if the stimulation polarity was alternat-
ing, then the cochlear microphonic will remain and may even sum up to approximately double size for easy
identification.
Export Waveform: Select Export waveform to export the selected waveform as an XML-file. The file is
saved automatically at the destination defined in the Auto Protocol Setup.
Page 28
