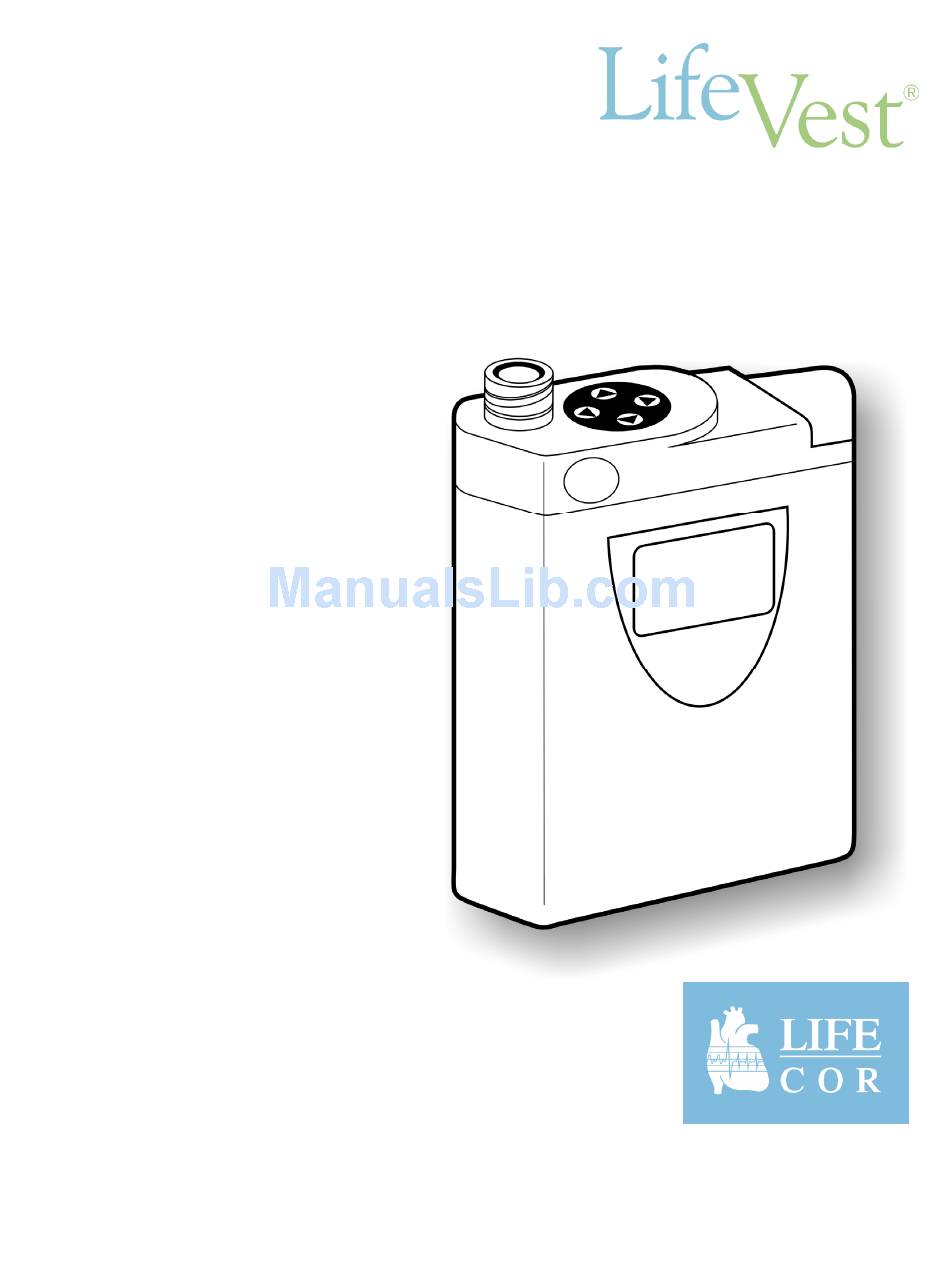

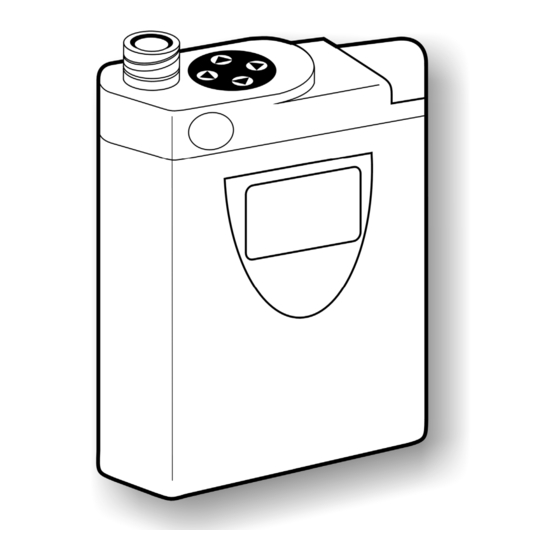

  • Page 1 Model WCD 3100 Training Manual Prerequisite: WCD 3000 training Rev B...

  • Page 2: Table Of Contents

    LifeVest System WCD 3100 Training Manual Contents 1: Introduction ..........................1-1 About this manual ......................1-1 What you will learn ......................1-1 What’s in this manual ....................... 1-1 2: What’s new and different? .....................2-1 Overview of the changes ....................2-1 Response buttons relocated .................... 2-1 Navigation buttons new....................

  • Page 3: 1: Introduction

    Introduction 1: Introduction About this manual This manual: is for ZOLL Lifecor PSRs and Sales Representatives. ® ™ covers the differences between the LifeVest 3100 wearable defibrillator system and the previous generation WCD 3000 system. supplements what you already know about the WCD 3000 system.
  • Page 4 LifeVest System WCD 3100 Training Manual This page intentionally left blank. Page 1-2 ZOLL Lifecor internal use only...

  • Page 5: 2: What's New And Different

    2: What’s new and different? Overview of the changes The WCD 3100 is our next generation of wearable defibrillator. The essential difference is that there’s no more alarm module. The functions that were on the alarm module have either been incorporated into the monitor or eliminated.

  • Page 6: Simplified Patient Interface

    LifeVest System WCD 3100 Training Manual Simplified patient interface The other controls and indicators that were on the alarm module have been eliminated. For instance, there is no RECORD button, no TRANSMIT button, and no OK button. These functions are handled in other ways, explained later in this manual.

  • Page 7: 3: Patient Training

    The device is still monitoring the patient. The device should only be removed by someone who is prepared to perform cardiopulmonary resuscitation, such as an EMS technician or hospital ER personnel. ZOLL Lifecor internal use only Page 3-1...

  • Page 8: Main Points To Teach The Patient

    LifeVest System WCD 3100 Training Manual Main points to teach the patient When you instruct the patient, stress the following points, explained below and on the following page: If you get a siren alarm, hold the response buttons. If you get a gong alarm, read the message.

  • Page 9: Summary Of Operating Modes

    Various messages can Patient needs to take Read monitor and do what it appear, for example: action. says. Siren alarm An arrhythmia is Press and hold the response being detected. buttons if conscious. ZOLL Lifecor internal use only Page 3-3...

  • Page 10: Demonstrating The Alarms

    LifeVest System WCD 3100 Training Manual Demonstrating the alarms Demonstrate the alarms to help the patient learn how to respond. Follow the procedures below to: Place the system in training mode, then Simulate alarm conditions. How to enter training mode View the navigation buttons from the top of the monitor with the display facing you.
  • Page 11 Press the response buttons again. The monitor is now in training mode, with these messages alternating. Press the response buttons to silence the gong alarm. The monitor is ready to demonstrate the noise and arrhythmia alarms. ZOLL Lifecor internal use only Page 3-5...
  • Page 12 LifeVest System WCD 3100 Training Manual Connect patient for training mode Outfit the patient with the electrode belt and garment. Connect the electrode belt to the monitor. Continue with the procedures on the next page. Page 3-6 ZOLL Lifecor internal use only...
  • Page 13 The alarms stop as long as the patient holds the response buttons. Tell the patient to release the response buttons to show that the alarm sequence resumes. To stop the arrhythmia demonstration, press ▼. ZOLL Lifecor internal use only Page 3-7...
  • Page 14 LifeVest System WCD 3100 Training Manual How to demonstrate a noise alarm With this screen displayed, press ▲. Tell the patient what to do when the gong alarm sounds: Read the display. This particular message states that ECG signal is not clear. The ECG electrodes are not sending a good signal to the monitor.
  • Page 15 Patient training How to exit training mode Remove and reinsert the battery. Press the response buttons as normal. Monitor resumes normal operation. ZOLL Lifecor internal use only Page 3-9...
  • Page 16 LifeVest System WCD 3100 Training Manual This page intentionally left blank. Page 3-10 ZOLL Lifecor internal use only...

  • Page 17: 4: New Patient Setup

    If you need to change any other settings, see Appendix B on advanced programming. What you need to know Programming the WCD 3100 is almost the same as programming the 3000. The main difference is that you use the navigation buttons to move around the menus and options.

  • Page 18: Menu Structure

    LifeVest System WCD 3100 Training Manual Menu structure Page 4-2 ZOLL Lifecor internal use only...

  • Page 19: How To Put The Monitor In Setup Mode

    The main menu displays, showing that the monitor is in setup mode. You may now proceed to program the monitor. See page 4-5 for details on setting up a new patient. ZOLL Lifecor internal use only Page 4-3...
  • Page 20 LifeVest System WCD 3100 Training Manual When you are finished programming the monitor, do one of the following to return to normal operation: Navigate back to the main menu, select EXIT, then press ►. Wherever you are in any menu, remove and reinsert the battery.

  • Page 21: How To Program For A New Patient

    Repeat to change the other value. To save the new values, press the response buttons. Press ► or ◄ to select OK, then press the response buttons. Remove and reinsert the battery to return to normal operation. ZOLL Lifecor internal use only Page 4-5...

  • Page 22: How To Baseline A Patient

    LifeVest System WCD 3100 Training Manual How to baseline a patient As with the WCD 3000, the 3100 monitor’s arrhythmia detection algorithm uses the patient’s baseline ECG as a template to help determine if a treatable arrhythmia exists. When you set up a new patient, the monitor automatically goes into the baseline mode when you exit the setup mode or the next time the system powers up.
  • Page 23 If problems continue, the patient may have a rhythm that is difficult for the monitor to learn. If so, discontinue attempting to baseline the patient and call ZOLL Lifecor. ZOLL Lifecor internal use only Page 4-7...
  • Page 24 LifeVest System WCD 3100 Training Manual This page intentionally left blank. Page 4-8 ZOLL Lifecor internal use only...

  • Page 25: 5: Other Procedures

    Detected arrhythmias and treatments will be automatically recorded. Hold the response buttons for 3 seconds. Release response buttons when you see this message. The monitor automatically records for 30 seconds, then resumes normal operation. ZOLL Lifecor internal use only Page 5-1...

  • Page 26: How To Send Data

    LifeVest System WCD 3100 Training Manual How to send data Since there’s no TRANSMIT button, how do you send data? The answer: the system automatically sends data when you connect it to a modem. Instruct patients to connect the modem in the right order. Here’s how: FIRST connect the modem to the phone line.
  • Page 27 Data could not be sent. Disconnect the modem from the An error code will monitor. Wait a few minutes. Then appear. reconnect the modem. If problem continues, write down the error code, then contact ZOLL Lifecor. ZOLL Lifecor internal use only Page 5-3...

  • Page 28: How To Test The Monitor

    LifeVest System WCD 3100 Training Manual How to test the monitor This procedure is done when refurbishing the system for another patient. Patients do not do this procedure. The pulse test checks the monitor’s ability to generate and deliver a pulse.
  • Page 29 Press ▲ or ▼ to select PULSE TEST, then press ►. 6 Connect the test plug to the monitor. Leave the test plug connected until the test is complete. ZOLL Lifecor internal use only Page 5-5...
  • Page 30 LifeVest System WCD 3100 Training Manual Press the response buttons to start the test. A message tells you the time remaining to finish the test. The monitor sounds a loud alarm near the end of the test. If you want to stop the test before completion, press both response buttons.
  • Page 31 If you have a problem testing the system If you have a problem testing the system, use this chart to determine how to correct the problem. If you have any other problem testing the system, call ZOLL Lifecor. Message What it means...
  • Page 32 LifeVest System WCD 3100 Training Manual This page intentionally left blank. Page 5-8 ZOLL Lifecor internal use only...

  • Page 33: Appendix A: Quick Charts

    Quick charts Appendix A: Quick charts Overview of new patient setup Program monitor for new patient Fit patient with garment and electrode belt ZOLL Lifecor internal use only Page A-1...
  • Page 34 LifeVest System WCD 3100 Training Manual Train patient To view patient data Page A-2 ZOLL Lifecor internal use only...
  • Page 35 To change language or second language To change patient name (after initial setup) To change detection settings (rate threshold, pulse energy, response time, etc.) To change country To change dialer settings To enter or change clinical center ZOLL Lifecor internal use only Page A-3...
  • Page 36 LifeVest System WCD 3100 Training Manual To enter or change time zone or DST To change connectivity settings (connection method, modem type, etc.) Basic troubleshooting procedure Page A-4 ZOLL Lifecor internal use only...
  • Page 37 Quick charts Troubleshooting from messages Maintenance while device is in storage ZOLL Lifecor internal use only Page A-5...
  • Page 38 LifeVest System WCD 3100 Training Manual This page intentionally left blank. Page A-6 ZOLL Lifecor internal use only...

  • Page 39: Appendix B: Advanced Programming

    Appendix B: Advanced programming About this section This section covers programming beyond the basic monitor setup. This section applies to the WCD 3100 equipped with software version 5.1. For basic programming when setting up a new patient, see section 4. Menu structure...
  • Page 40 LifeVest System WCD 3100 Training Manual About the menus Menu What it lets you select or enter When to use it New patient menu Patient’s name and VT/VF rate threshold To set up a new patient. See Operator’s Manual. settings (in beats per minute).

  • Page 41: Menu Navigation

    To save the displayed value, press the response buttons. To select a menu option Press ▲ or ▼ to highlight a menu option. Press ► to select the highlighted option. ZOLL Lifecor internal use only Page B-3...
  • Page 42 LifeVest System WCD 3100 Training Manual To change a value Have the menu displayed with the value you want to change. Press the response buttons so they light, putting the monitor in edit mode. If more than one value is displayed, press the response buttons to select the value to be changed.
  • Page 43 If you need to insert a pause for modem dialing, use the comma. Each comma inserts a 1-second pause. You can insert multiple commas if you need a longer pause. ZOLL Lifecor internal use only Page B-5...
  • Page 44 LifeVest System WCD 3100 Training Manual How to put the monitor in setup mode Before doing any of the monitor setups described in this section, follow this procedure to put the monitor in setup mode. Remove and reinsert the battery.
  • Page 45 How to select First name Patient’s first name. Enter patient’s first name that will be used on patient records. Last name Patient’s last name. Enter patient’s last name that will be used on patient records. ZOLL Lifecor internal use only Page B-7...
  • Page 46 LifeVest System WCD 3100 Training Manual How to change language settings Follow this procedure to set the patient’s language for the displays and voice prompts. A secondary language can also be selected for bystanders. With the monitor in setup mode (see page B-6), press ▲ or ▼ to select PATIENT, then press ►.
  • Page 47 Select from list of languages or for voice prompts to advise select off. Any language can be bystanders (in addition to the selected except what has been primary language). chosen for Language Preference. ZOLL Lifecor internal use only Page B-9...
  • Page 48 LifeVest System WCD 3100 Training Manual How to change treatment settings Follow this procedure to change rate thresholds (in beats per minute), response time (how many seconds until the device delivers the defibrillating shock), pulse energy (in joules), and other treatment options.
  • Page 49 Optional. Can be set to any message treatment shock. alphanumeric message you want to display after the patient receives treatment. For example, can be set to display “CALL 911” or other phone number for the patient to call. ZOLL Lifecor internal use only Page B-11...
  • Page 50 LifeVest System WCD 3100 Training Manual Dialer menu and settings Menu Menu option What it means How to select Patient dial prefix Prefix number that may be required Select any number, based on what to dial out from primary location is required.
  • Page 51 Can be any combination of letters and numbers, limited to 75 characters. Determined by device provider and does not normally need to be changed. Contact ZOLL Lifecor for assistance before changing this setting. Time zone Allows choosing local time zone in Select from the list of time zones.
  • Page 52 LifeVest System WCD 3100 Training Manual Connectivity menu and settings Menu Menu option What it means How to select Connection method Determines how monitor Select the type of dialing method during accesses LifeVest Network, installation. Defaults to the type of...

  • Page 53: Default Settings

    Defined by country Modem type Defined by country Modem initialization string override Blank, use only as directed by ZOLL Lifecor Primary dialing number override Blank, use only as directed by ZOLL Lifecor Primary login override Blank, use only as directed by ZOLL Lifecor...
  • Page 54 LifeVest System WCD 3100 Training Manual This page intentionally left blank. Page B-16 ZOLL Lifecor internal use only...

  • Page 55: Index

    A-1 send, 5-2 gong alarm, 3-2 data management quick chart, A-2 data transfer message, 5-3 heart rhythm data transfer problems, 5-3 record, 5-1 daylight savings time (DST) hospital dialing mode, B-14 ZOLL Lifecor internal use only Index-1...
  • Page 56 LifeVest System WCD 3100 Training Manual modem type changing, B-16 instructing patient, 3-1 monitor setup for new patient introduction, 1-1 quick chart, A-1 language name changing, B-10 changing, B-8 defaults, B-17 menu, B-8 menu, B-11 quick chart, A-3 quick chart, A-3...
  • Page 57 5-3 setup quick charts, A-1 setup for a new patient, 4-1 setup mode, 4-3, B-7 view patient data quick chart, A-3 quick chart, A-2 shock, 3-2 VT/VF settings siren alarm, 3-2 changing, B-12 storage ZOLL Lifecor internal use only Index-3...
