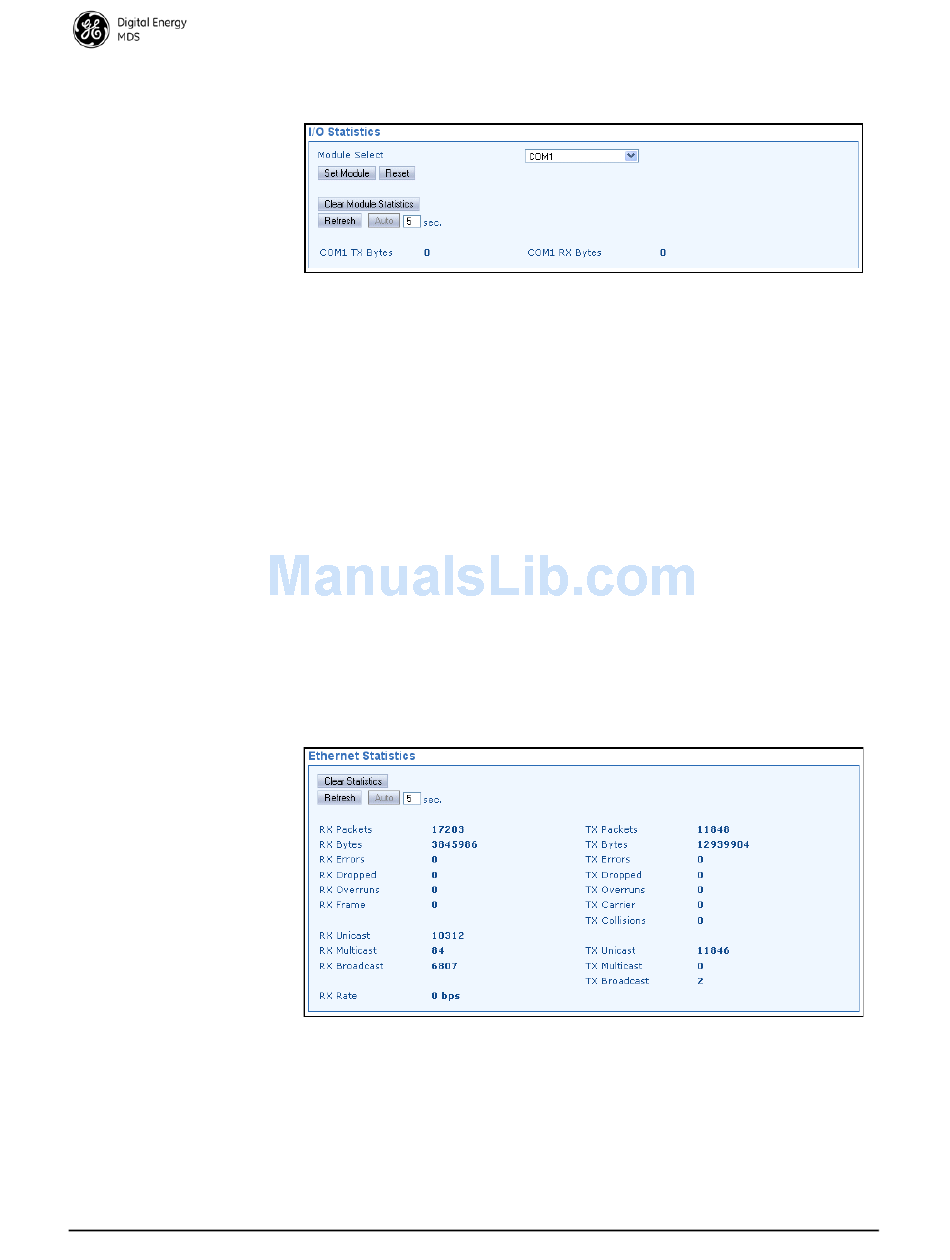

I/O Statistics
Ethernet Statistics
72
This screen allows viewing transmitted and received bytes on any of the
transceiver interface modules.
Module Select
• —The drop-down box to the right of this area allows
selection of any of the transceiver interface modules:
Access Controller
Reprogram
. Once a module is selected, click
summary of TX and RX bytes, along with the number of packets
missed, retries, and number of blocks (as applicable, depending
on the interface selected). The display continually refreshes to
show the latest information, and may be cleared at any time by
Clear Module Statistics
selecting
Refresh
• —Clicking this button updates the displayed statistics on
demand.
Auto
• —Initiates automatic updating of statistics. A time (in sec-
onds) may be entered in the box provided, to specify how often
the display is updated.
This screen presents a detailed summary of packets received and trans-
mitted, dropped packets, errors, overruns of the buffer, RX data rate
(bps), and RX/TX data for Unicast, Multicast, and Broadcast transmis-
sions.
Clear Statistics
• —Clicking this button resets the displayed statistic
counts.
Refresh
• —Clicking this button updates the displayed statistics on
demand.
Auto
• —Initiates automatic updating of statistics. A time (in sec-
onds) may be entered in the box provided, to specify how often
the display is updated.
SD Series Technical Manual
Port(s) COM1 COM2 IP Payload Port 1
, , , ,
.
All Media
,
2 3 Remote
, , ,
Set Module
to view a
MDS 05-4846A01, Rev. F
