2.0 PRODUCT DESCRIPTION

The SD Transceiver is a software-configurable, industrial radio for use
in licensed data acquisition networks. It may be interfaced with a variety
of data control equipment including remote terminal units (RTUs), pro-
grammable logic controllers (PLCs), flow computers, and similar
devices. Data interface connections may be made for both serial
(RS-232/RS-485) and Ethernet protocols. It is designed for use with
both polled networks and report-by-exception (push) systems.
The radio employs digital signal processing (DSP) technology and a
fully digital transmit and receive IF chain to provide robust communica-
tions even under adverse conditions. DSP technology also helps elimi-
nate the effects of component variations or temperature changes,
resulting in optimized performance at all times.

2.1 Front Panel Connectors and Indicators

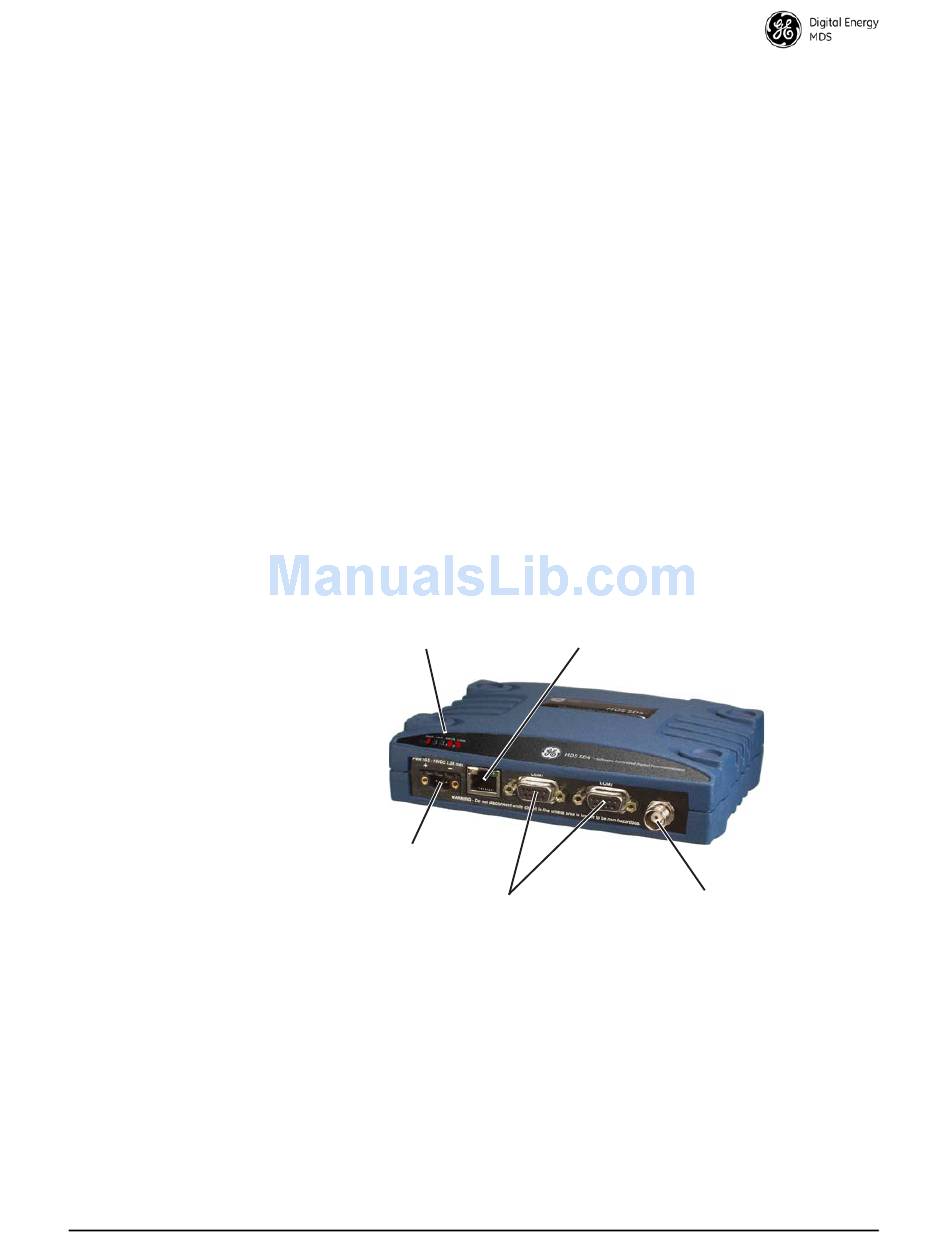

Figure 2 shows the transceiver's front panel connectors and indicators.
These items are referenced in the installation steps and in various other
locations in the manual. The transceiver's LED functions are described
in Table 10 on Page 31.
LED INDICATOR
PANEL
DC INPUT
POWER
SERIAL DATA
CONNECTORS (DB-9)
COM1 used for radio management
Figure 2. Front Panel Connectors & Indicators
SD Series Technical Manual
Invisible place holder
ETHERNET
CONNECTOR (RJ-45)
ANTENNA
CONNECTOR (TNC)
