Initial Startup & Checkout - GE MDS SD4A Technical Manual

Using the Remote
Management Wizard
Getting an Overview
of Radio Settings
30

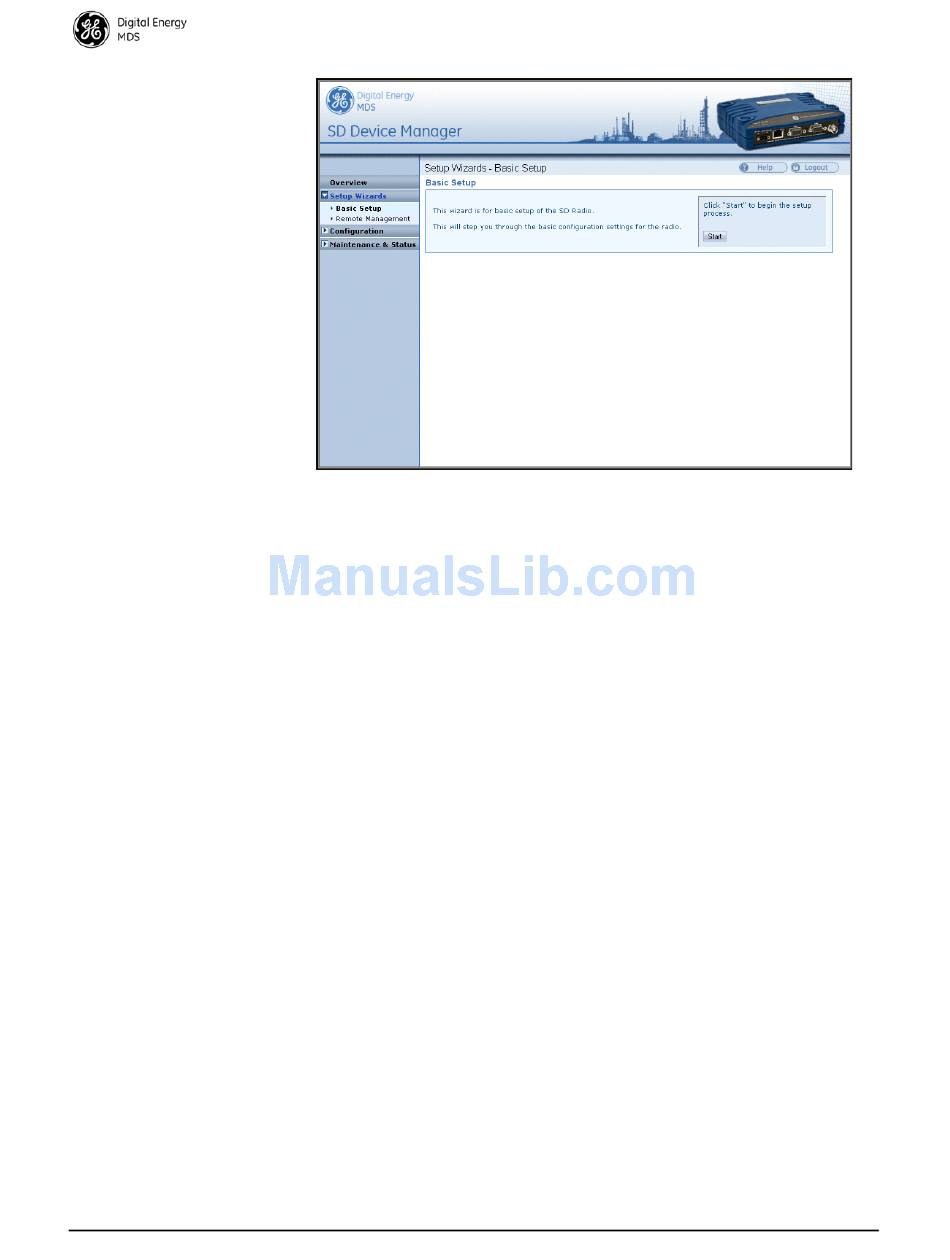

Figure 22. Basic Setup Wizard
5. At the conclusion of the wizard, click
complete for the connected radio. Log out of the Device Manager by
Logout
clicking in the upper right hand side of the screen. If desired,
you may proceed with the additional functions described below.
To program the key settings of other radios installed in the wireless net-
Setup Wizards>>Remote Management
work, select
contained in that tool. At the conclusion of the wizard, click
figuration
, followed by
To get a top-level view of the key settings and operating parameters for
Overview
the radio, select
log out of the Device Manager by clicking
side of the screen.
5.2 Initial Startup & Checkout
In-service operation of the transceiver is completely automatic. Once
the unit has been properly installed and configured as described above,
operator actions are limited to observing the front panel LED indicators
for proper operation.
If all parameters are correctly set, operation of the radio can be started
by following these steps:
1. Apply DC power.
2. Observe the LED status panel for proper indications (Table 10).
SD Series Technical Manual
