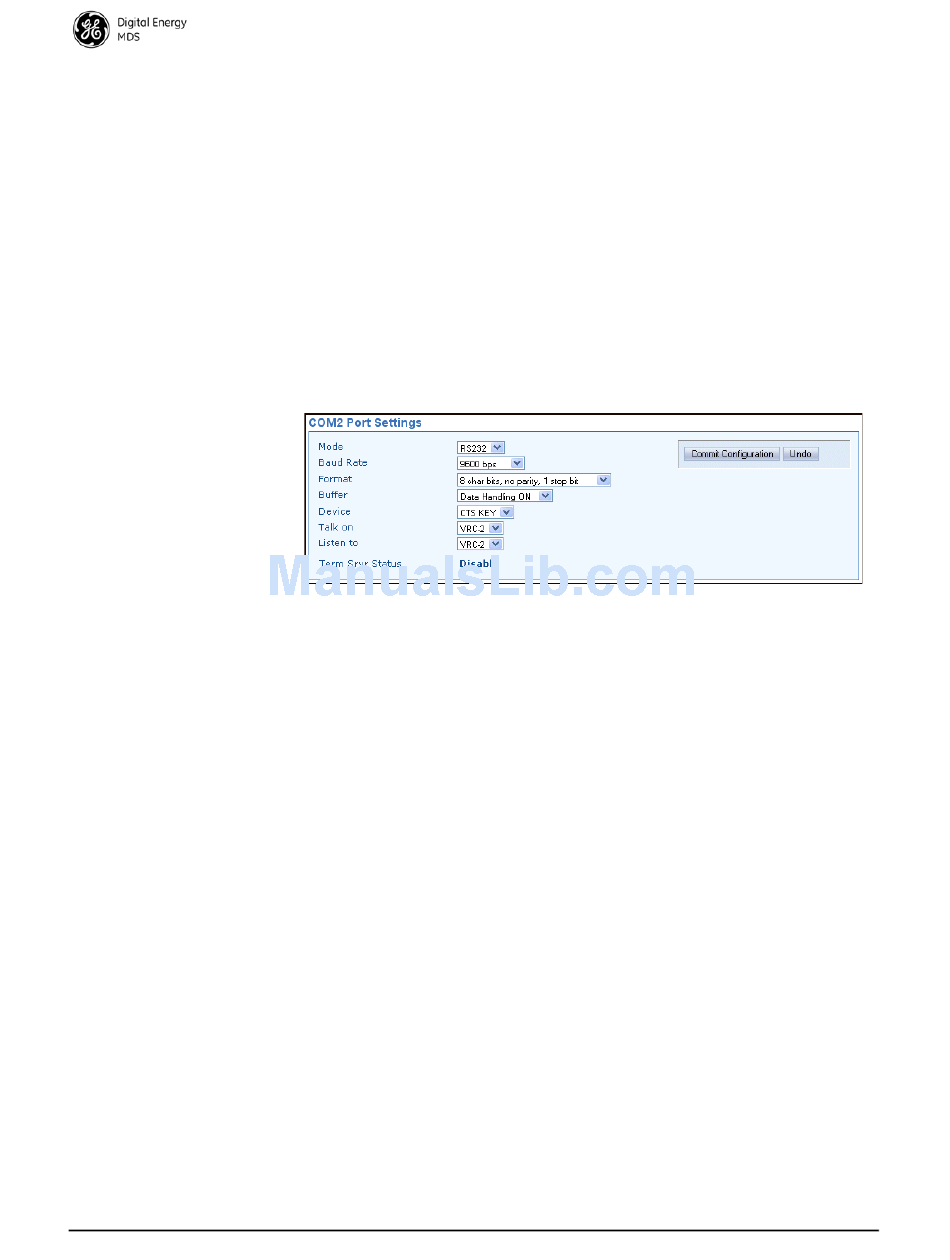

COM2 Port Settings
64
7 character bits, odd parity, 1 stop bit
7 character bits, odd parity, 2 stop bits
7 character bits, even parity, 1 stop bit
7 character bits, even parity, 2 stop bits
Talk on/Listen to
• —Any combination of the three Virtual Radio
Channels may be entered in these fields. Refer to the SD
Serial/Telnet Management Supplement, Part No. 05-6193A01 for
more information.
Term Srvr Status
• —Indicates whether the radio's terminal server is
enabled or disabled.
COM2
is the standard port used for connection of serial payload data.
COM2 Port Settings
The
configured to suit the needs of your system.
COM2
Mode
• —The
mode. The default is RS-232.
Baud Rate
• —The default data rate for
be set to any of the following speeds: 300, 1200, 2400, 4800,
9600, 19200, 38400, 57600, 115200.
Data Format
• —The default data format for the transceiver is 8 char-
acter bits, no parity, and 1 stop bit (8N1). A number of settings are
possible as listed below:
8 character bits, no parity, 1 stop bit (Default)
8 character bits, no parity, 2 stop bits
8 character bits, odd parity, 1 stop bit
8 character bits, odd parity, 2 stop bits
8 character bits, even parity, 1 stop bit
8 character bits, even parity, 2 stop bits
7 character bits, no parity, 1 stop bit
7 character bits, no parity, 2 stop bits
