Installing the NetBackup appliance into a rack

To install the rack rails
1 Identify the one U on each side of the rack where you decided to install the
rails.
2 Verify that there is one complete U available under the U used for rail
installation.

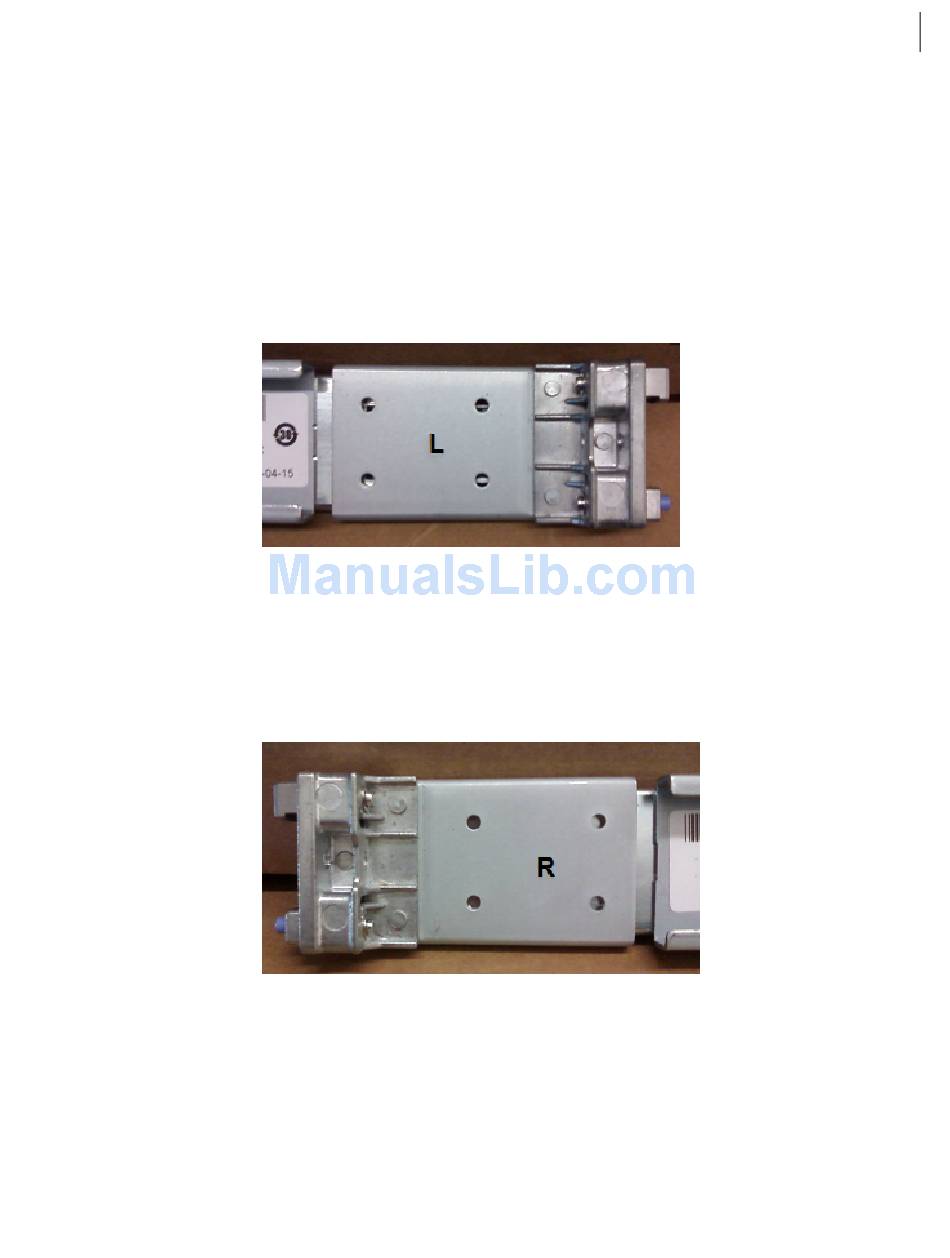

3 Locate the left rail, with the L at the front end. The L faces the left side wall of
the rack, not the inside of the rack.
4
Guide the rail into the two holes in the one U that you selected.
5 Hook the silver peg on the front of the rail into the top hole in the U.
6
Snap the blue peg on the front of the rail into the bottom hole in the U.
7 Repeat steps 3 to 6 for the rail on the right side of the rack.
8 Verify that both rails are parallel and fastened securely.
See "Installing the NetBackup appliance into a rack"
The appliance should be installed above any storage shelves. This configuration
allows proper weighting of the rack.
Installing hardware into racks
Installing the NetBackup appliance into a rack
on page 37.
