Installing the Symantec Storage Shelf into a rack

Installing the NetBackup appliance guide rails
5
Align the screw holes in the rail with the snap-in cage nut that you installed in
the rack.
6 Insert M5 screws and tighten. Screws are shipped with the unit.
7 Repeat Steps 1 through
installed at the same height.
Caution: Due to the weight of the units, Symantec recommends that storage shelves
be installed at or near the bottom of the rack.
Warning: A Symantec Storage Shelf weighs about 71.7 lbs (32.5 kg). Use appropriate
practices, techniques, and tools when handling these components.
To install the Symantec Storage Shelf into a rack
1 Verify that the guide rails are properly installed and securely fastened in the
rack.

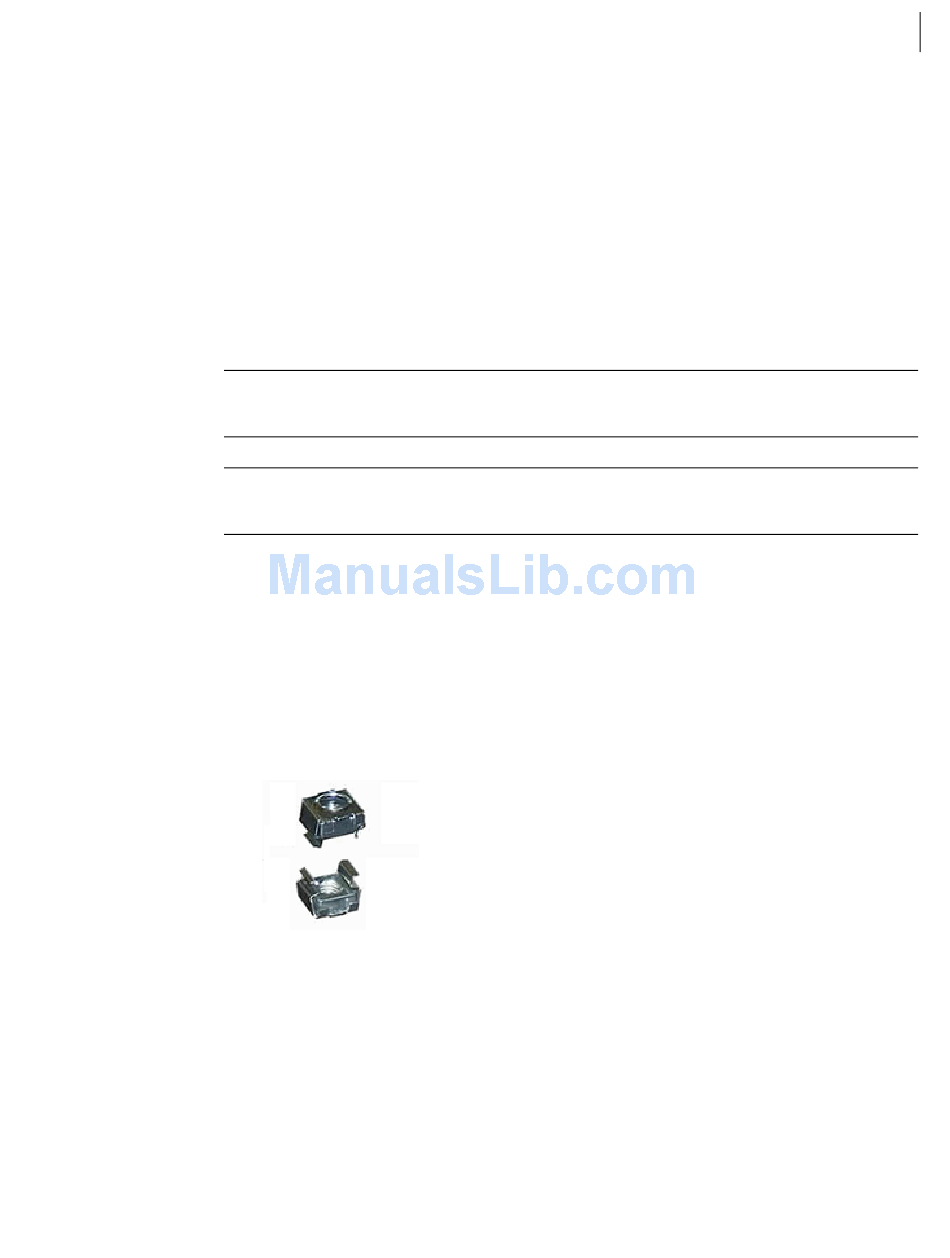

2 Insert snap-in cage nuts in cutouts on both sides of the front of the rack to
secure the storage shelf. The snap-in cage nuts must align with the
through-holes in top third of each ear on the storage shelf when the storage
shelf is installed in the rack.
3 Slide the storage shelf along the mounting rails into the rack cabinet.
4 Insert M5 screws in the through-holes in the ears of the front panel and tighten.
The through-holes must align with the snap-in cage nuts installed earlier.
See "Installing the NetBackup appliance guide rails"
Before you install the devices in a rack:
Installing the Symantec Storage Shelf into a rack
6 for the right mounting rail. Be sure that rails are
Installing hardware into racks
on page 35.
