Connecting the VGA cable

Connecting the network cables
PS/2 to USB adapter cable
■
KVM cable
■
When the appliance is initialized, a monitor can be connected to the Video Graphics
Array (VGA), and a keyboard can be attached to the USB port. Alternatively, you
can connect the VGA to a Keyboard Video Mouse (KVM) adapter or switch.
To connect the VGA Cable
1 Insert the connector of a VGA (DB15) cable into the video port on the rear
panel of the NetBackup appliance.
See "Appliance rear panel"
2 Connect the other end of the cable directly to a monitor, or to a KVM adapter,
or KVM switch.

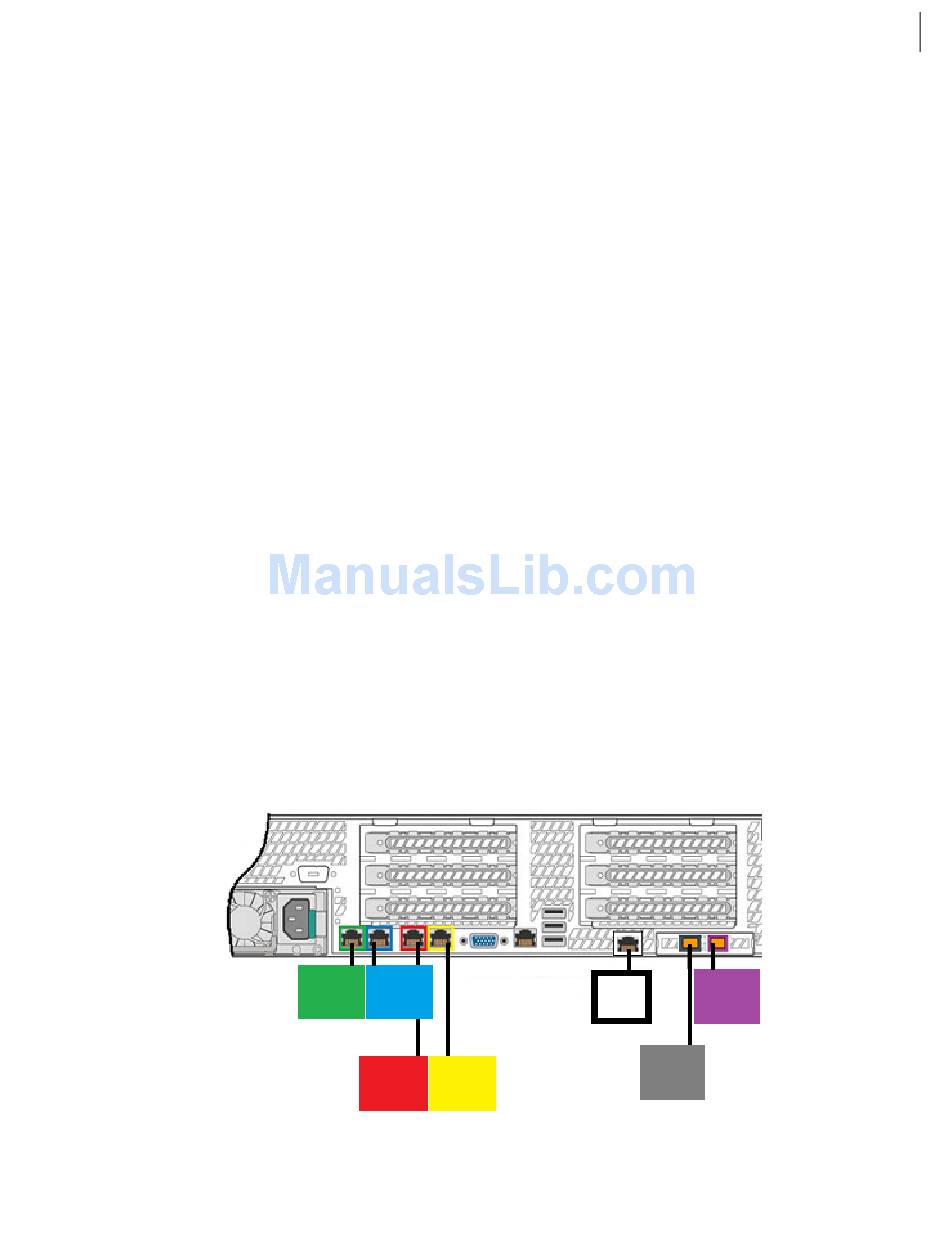

The networking ports are accessed on the rear panel of the device. The remote
management port is for use by Symantec Technical Support staff or by approved
field service technicians. The following picture shows the layout of the network
ports. It includes the four 1 Gb Ethernet ports on the left and the two 10 Gb Ethernet
ports on the right. The remote management (IPMI) port is located to the left of the
10 Gb Ethernet ports.
NIC2/
NIC1/
ETH1
ETH0
NIC3/
ETH2
Ethernet ports NIC2/eth1, NIC3/eth2, NIC4/eth3, NIC5/eth4, and NIC6/eth5 can be
connected to public networks.
on page 12.
IPMI
NIC4/
ETH3
Cable connections
Connecting the VGA cable
NIC6/
ETH5
NIC5/
ETH4
