Installing the NetBackup appliance into a rack

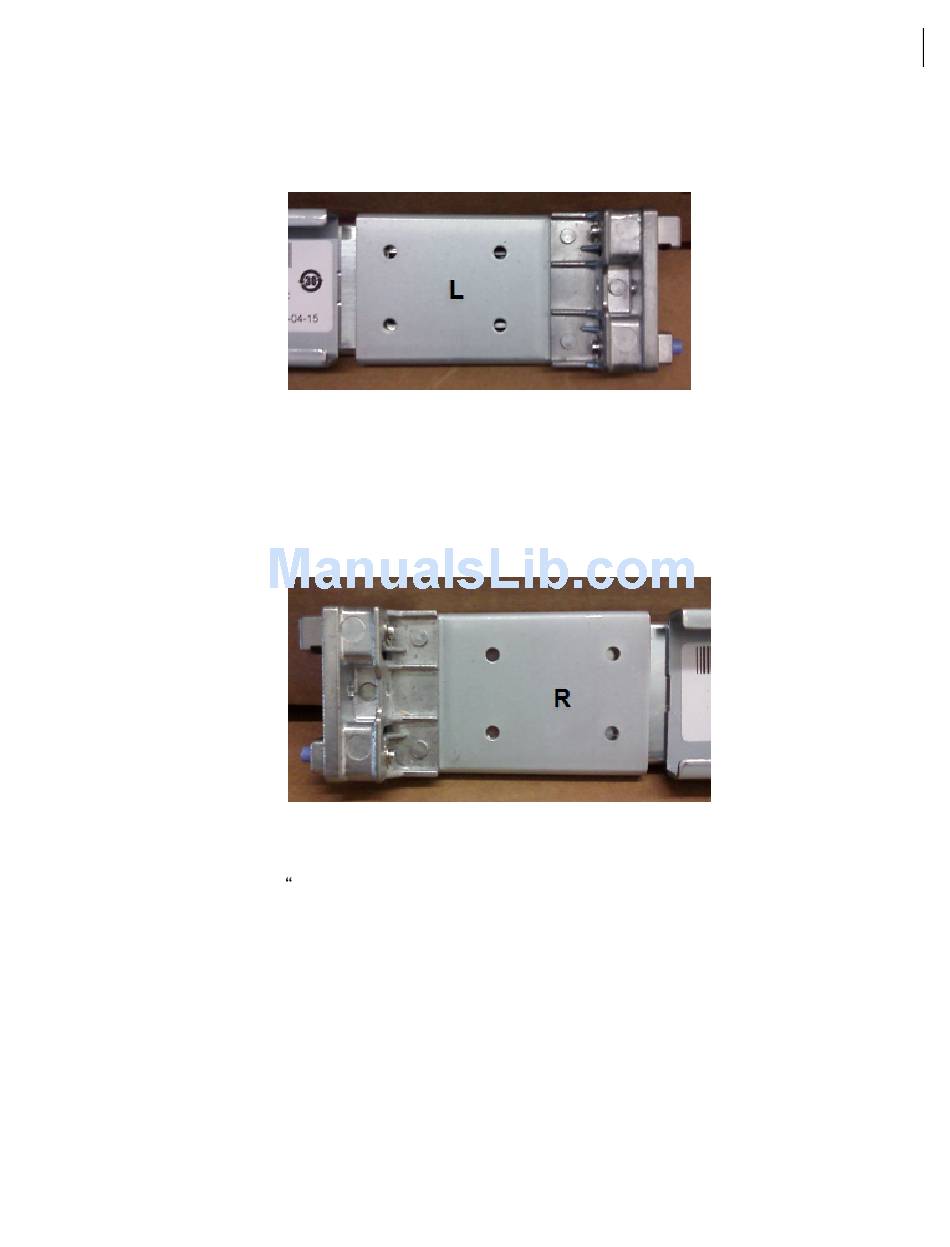

3 Locate the left rail, with the L at the front end. The L faces the left side wall
of the rack, not the center of the rack.
4 Guide the rail into the two holes in the one RU that you selected.
5 Hook the silver peg on the front of the rail into the top hole in the RU.
6
Snap the blue peg on the front of the rail into the bottom hole in the RU.
7
Repeat steps 3 to 6 for the rail on the right side of the rack.
8 Verify that both rails are parallel and fastened securely.
See Installing the NetBackup appliance into a rack" on page 35.
The appliance should be installed above any storage shelves. This configuration
allows proper weighting of the rack.
