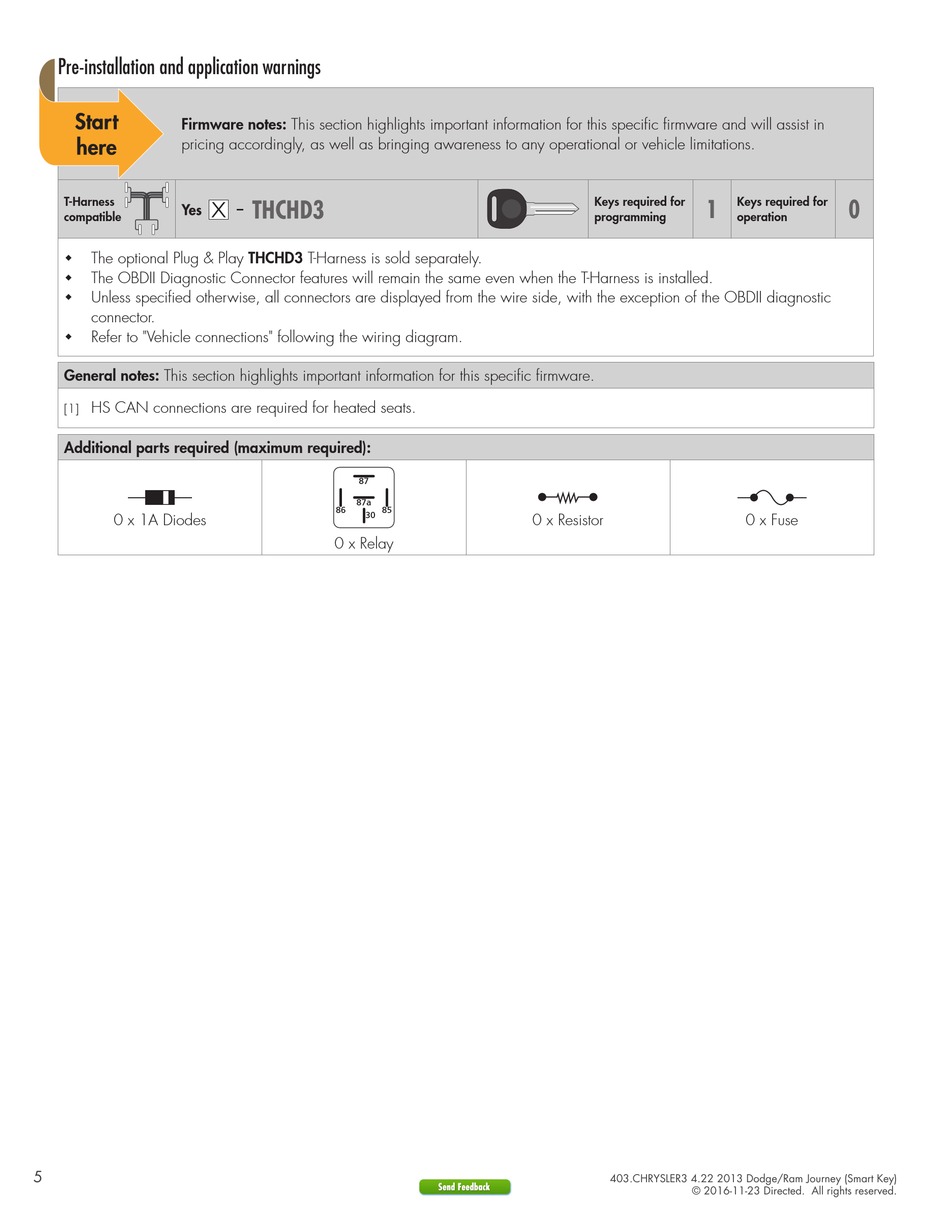

Pre-installation and application warnings

Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
The optional Plug & Play THCHD3 T-Harness is sold separately.
Š
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
Š
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
Š
connector.
Refer to "Vehicle connections" following the wiring diagram.
Š
General notes: This section highlights important information for this specific firmware.
HS CAN connections are required for heated seats.
[1]
Additional parts required (maximum required):
Diode 6A
0 x 1A Diodes
5
THCHD3
87
87a
86 85
30
0 x Relay
Keys required for
programming
Resistor 100Ω
0 x Resistor
403.CHRYSLER3 4.22 2013 Dodge/Ram Journey (Smart Key)
