Soft reset

A module reset will only erase the steps perfomed in "Module programming". The firmware and settings flashed to the module
will not be affected.
D2D installation

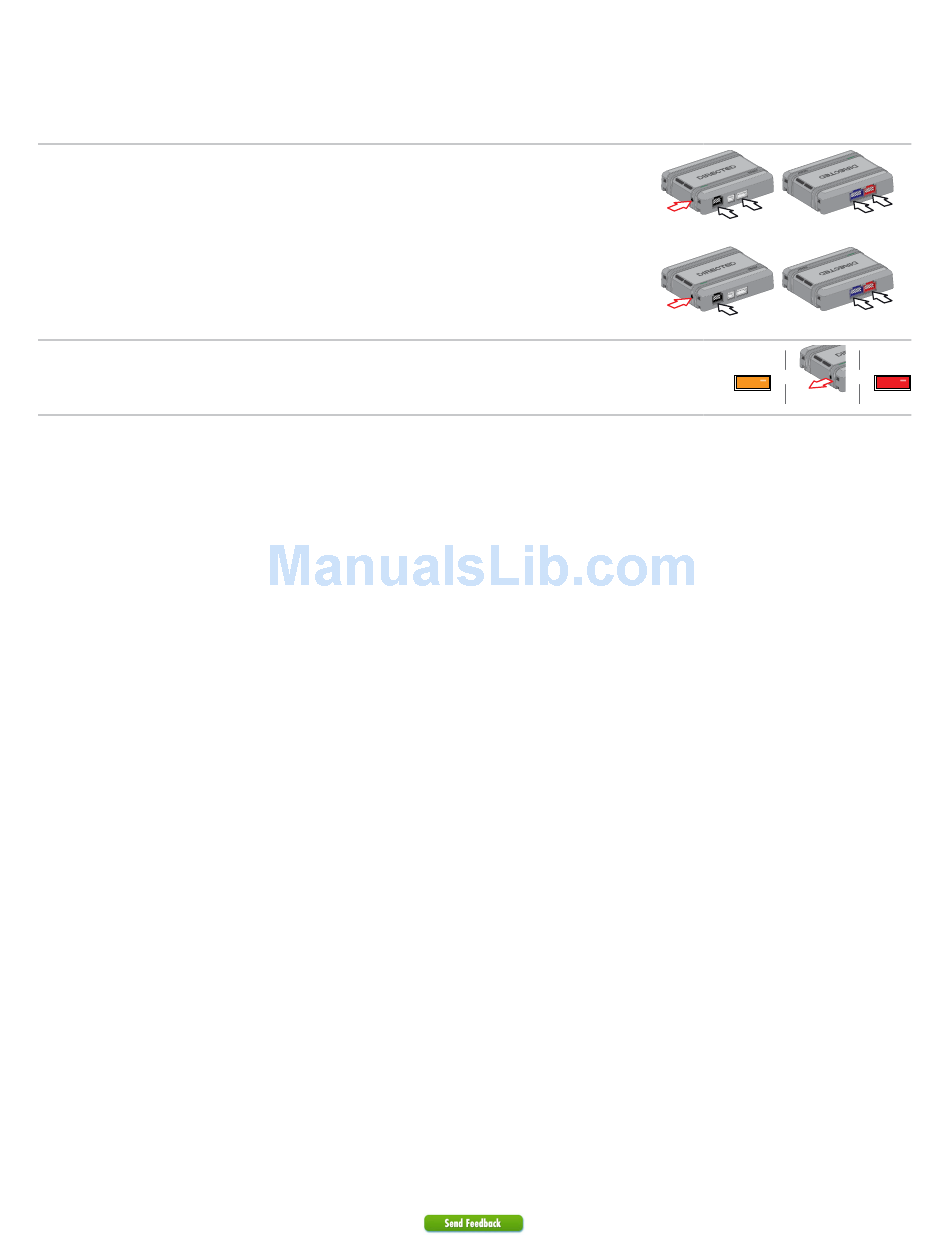

Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness.
1
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange then release the programming button.
2
The LED turns ON solid red.
14
5 th
4 th
1 st
(D2D)
(Button)
(10-pin)
3 rd
1 st
(Button)
(10-pin)
&
Solid
403.CHRYSLER3 4.22 2013 Dodge/Ram Journey (Smart Key)
