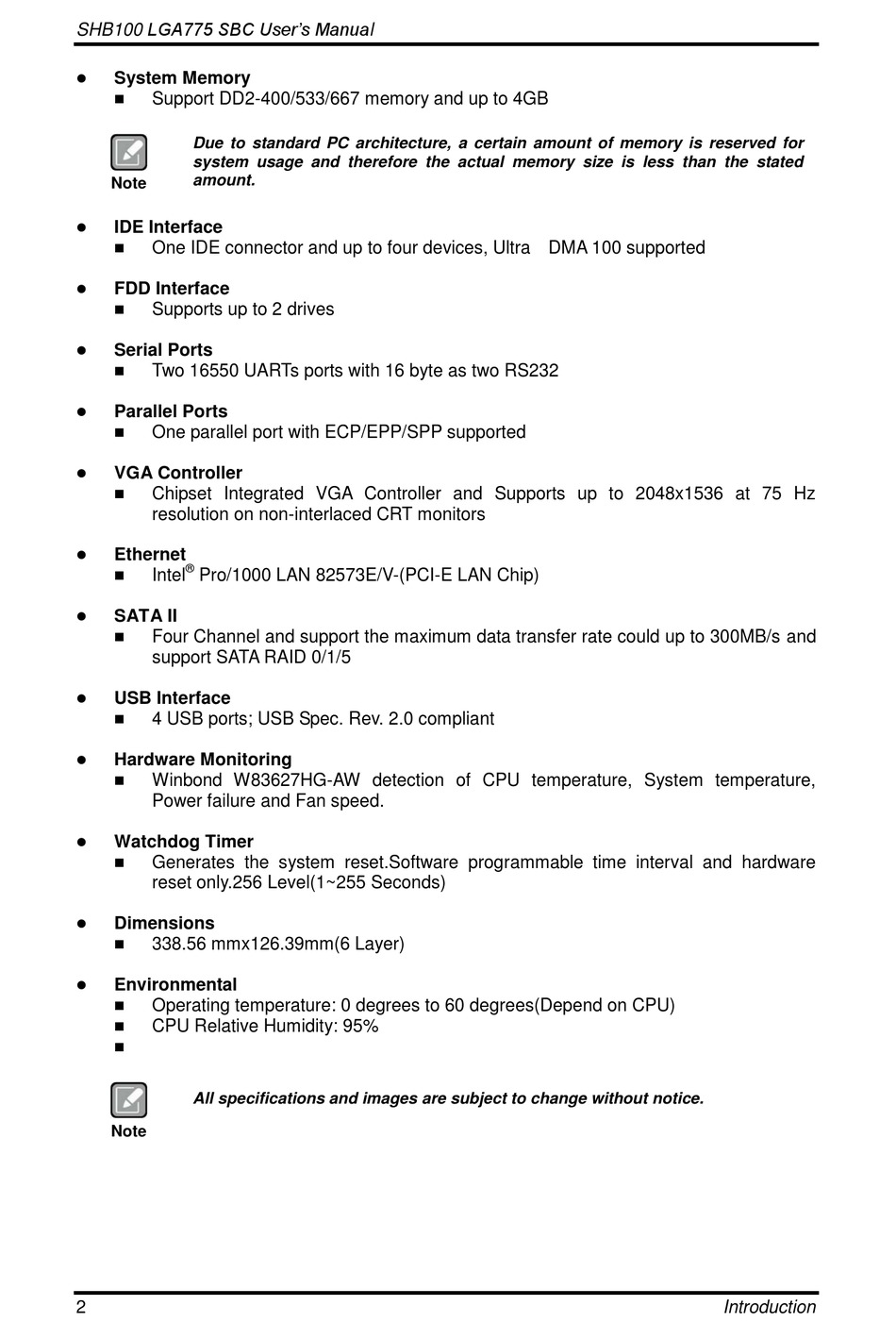

SHB100 LGA775 SBC User's Manual
 System Memory
 Support DD2-400/533/667 memory and up to 4GB
Due to standard PC architecture, a certain amount of memory is reserved for
system usage and therefore the actual memory size is less than the stated
amount.
Note
 IDE Interface
 One IDE connector and up to four devices, Ultra DMA 100 supported
 FDD Interface

Supports up to 2 drives
 Serial Ports
 Two 16550 UARTs ports with 16 byte as two RS232

Parallel Ports
 One parallel port with ECP/EPP/SPP supported
 VGA Controller
 Chipset Integrated VGA Controller and Supports up to 2048x1536 at 75 Hz
resolution on non-interlaced CRT monitors

Ethernet
®
 Intel Pro/1000 LAN 82573E/V-(PCI-E LAN Chip)
 SATA II
 Four Channel and support the maximum data transfer rate could up to 300MB/s and
support SATA RAID 0/1/5

USB Interface
 4 USB ports; USB Spec. Rev. 2.0 compliant
 Hardware Monitoring
 Winbond W83627HG-AW detection of CPU temperature, System temperature,
Power failure and Fan speed.

Watchdog Timer
 Generates the system reset.Software programmable time interval and hardware
reset only.256 Level(1~255 Seconds)
 Dimensions
 338.56 mmx126.39mm(6 Layer)

Environmental
 Operating temperature: 0 degrees to 60 degrees(Depend on CPU)
 CPU Relative Humidity: 95%

All specifications and images are subject to change without notice.
Note
2 Introduction
