SHB100 LGA775 SBC User's Manual

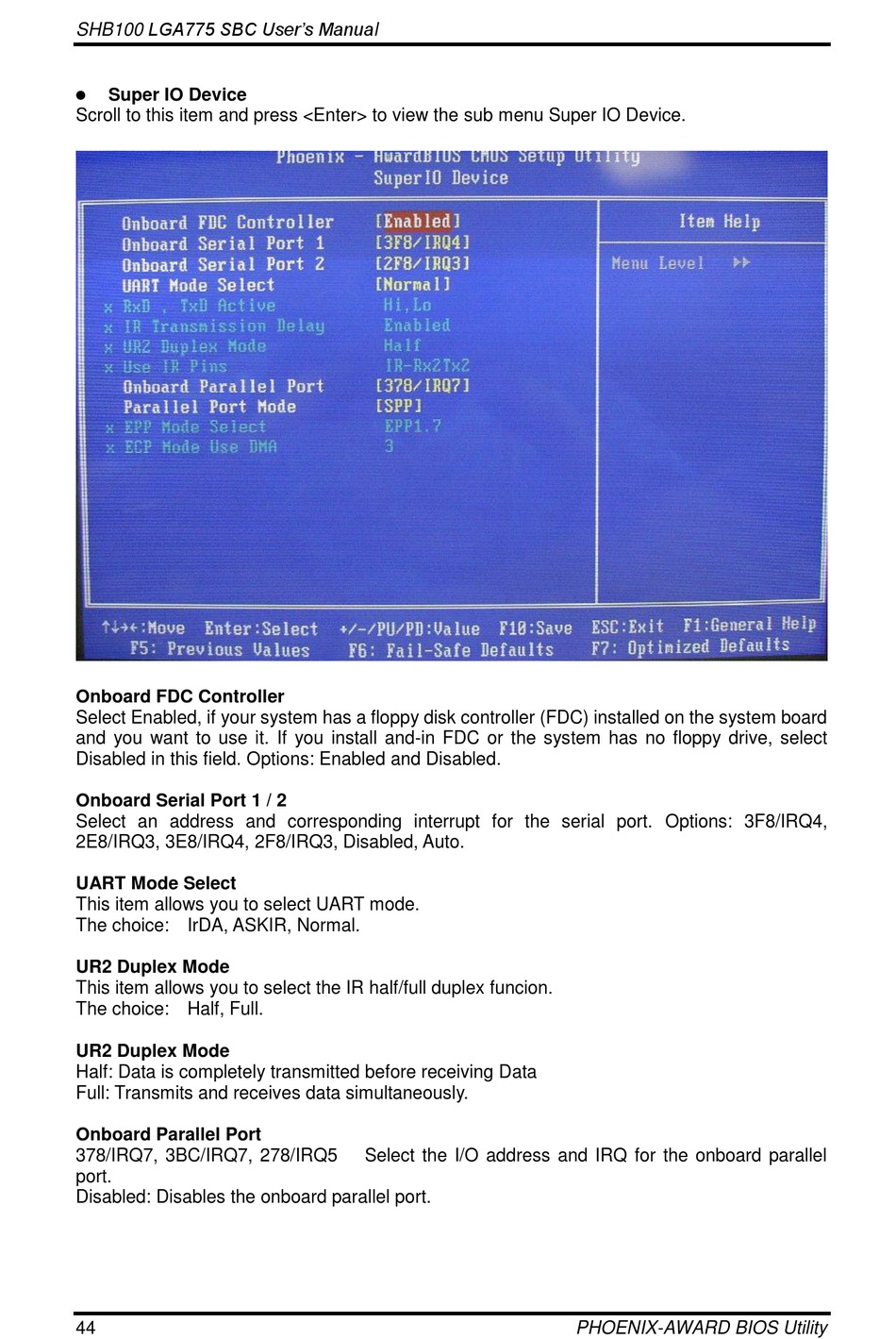

 Super IO Device
Scroll to this item and press <Enter> to view the sub menu Super IO Device.
Onboard FDC Controller
Select Enabled, if your system has a floppy disk controller (FDC) installed on the system board
and you want to use it. If you install and-in FDC or the system has no floppy drive, select
Disabled in this field. Options: Enabled and Disabled.
Onboard Serial Port 1 / 2
Select an address and corresponding interrupt for the serial port. Options: 3F8/IRQ4,
2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.
UART Mode Select
This item allows you to select UART mode.
The choice: IrDA, ASKIR, Normal.
UR2 Duplex Mode
This item allows you to select the IR half/full duplex funcion.
The choice: Half, Full.
UR2 Duplex Mode
Half: Data is completely transmitted before receiving Data
Full: Transmits and receives data simultaneously.
Onboard Parallel Port
378/IRQ7, 3BC/IRQ7, 278/IRQ5 Select the I/O address and IRQ for the onboard parallel
port.
Disabled: Disables the onboard parallel port.
