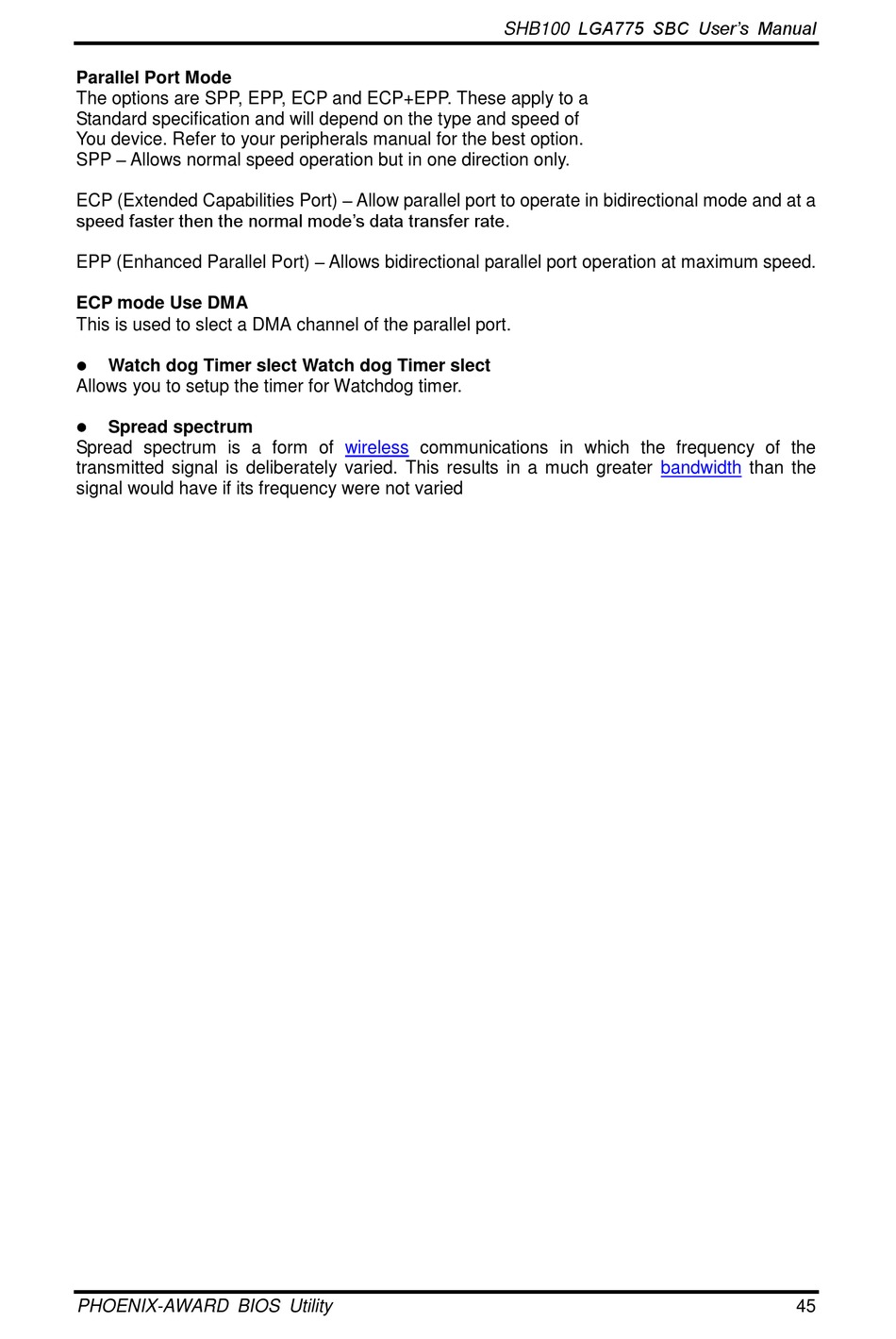

Parallel Port Mode
The options are SPP, EPP, ECP and ECP+EPP. These apply to a
Standard specification and will depend on the type and speed of
You device. Refer to your peripherals manual for the best option.
SPP – Allows normal speed operation but in one direction only.
ECP (Extended Capabilities Port) – Allow parallel port to operate in bidirectional mode and at a
speed faster then the normal mode's data transfer rate.
EPP (Enhanced Parallel Port) – Allows bidirectional parallel port operation at maximum speed.
ECP mode Use DMA
This is used to slect a DMA channel of the parallel port.
 Watch dog Timer slect Watch dog Timer slect
Allows you to setup the timer for Watchdog timer.
 Spread spectrum
Spread spectrum is a form of
transmitted signal is deliberately varied. This results in a much greater
signal would have if its frequency were not varied
PHOENIX-AWARD BIOS Utility
SHB100 LGA775 SBC User's Manual
wireless communications in which the frequency of the
bandwidth than the
