2.4.5

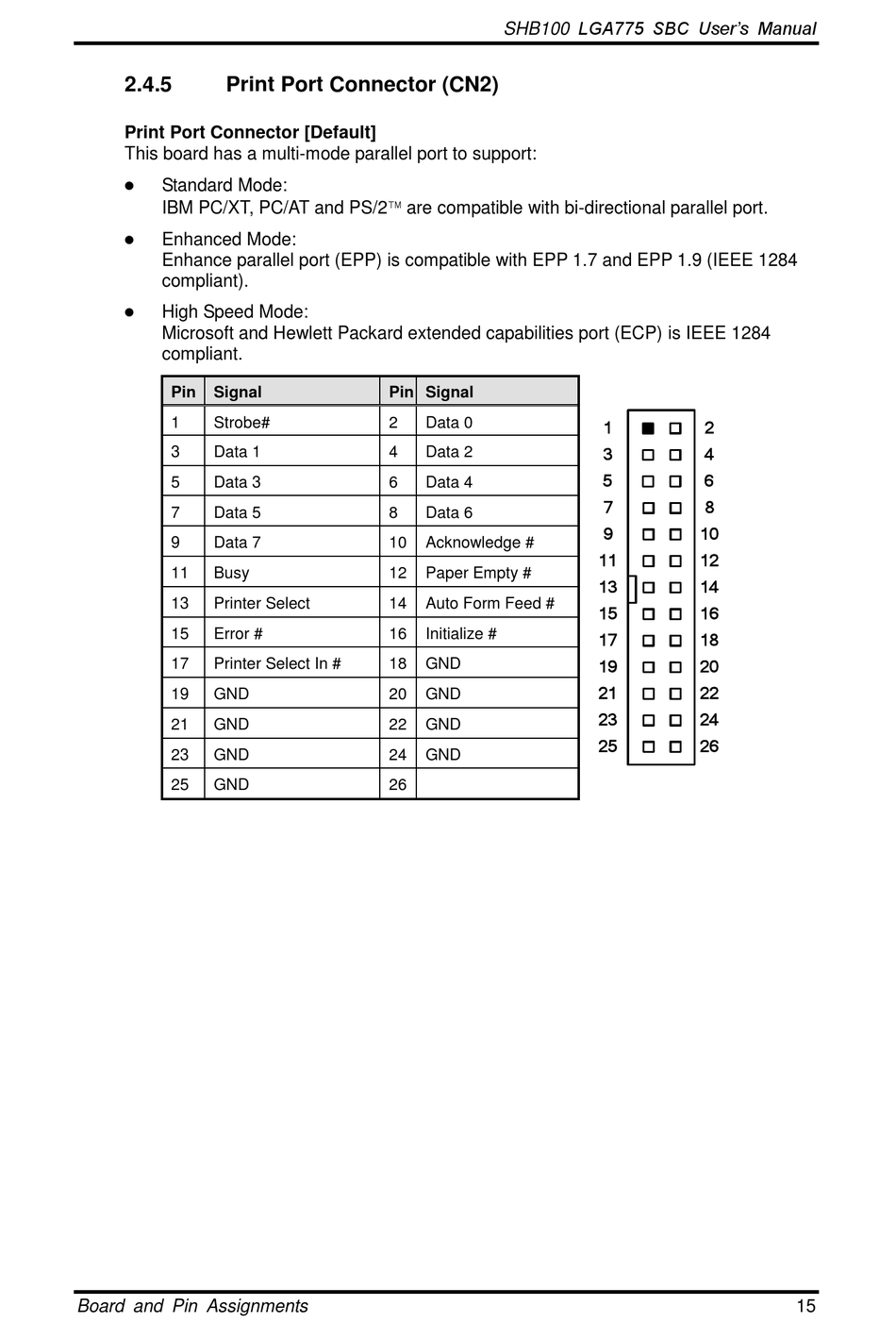

Print Port Connector (CN2)

Print Port Connector [Default]
This board has a multi-mode parallel port to support:

Standard Mode:
IBM PC/XT, PC/AT and PS/2 are compatible with bi-directional parallel port.
 Enhanced Mode:
Enhance parallel port (EPP) is compatible with EPP 1.7 and EPP 1.9 (IEEE 1284
compliant).
 High Speed Mode:
Microsoft and Hewlett Packard extended capabilities port (ECP) is IEEE 1284
compliant.
Pin Signal
1 Strobe#
3 Data 1
5 Data 3
7 Data 5
9 Data 7
11 Busy
13 Printer Select
15 Error #
17 Printer Select In #
19 GND
21 GND
23 GND
25 GND
Board and Pin Assignments
SHB100 LGA775 SBC User's Manual
Pin Signal
2 Data 0
4 Data 2
6 Data 4
8 Data 6
10 Acknowledge #
12 Paper Empty #
14 Auto Form Feed #
16 Initialize #
18 GND
20 GND
22 GND
24 GND
26
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
15
