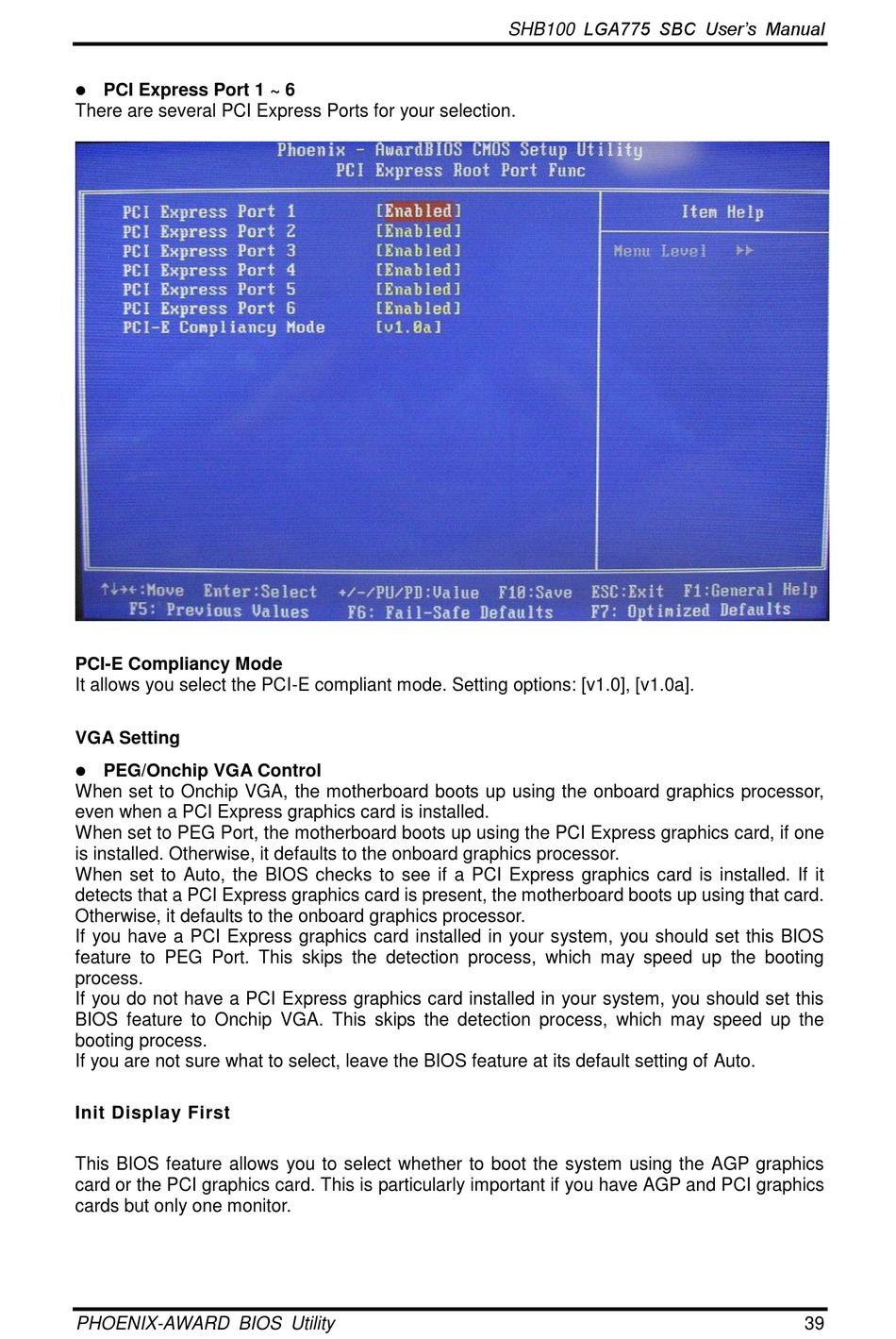

 PCI Express Port 1 ~ 6
There are several PCI Express Ports for your selection.
PCI-E Compliancy Mode
It allows you select the PCI-E compliant mode. Setting options: [v1.0], [v1.0a].
VGA Setting
 PEG/Onchip VGA Control
When set to Onchip VGA, the motherboard boots up using the onboard graphics processor,
even when a PCI Express graphics card is installed.
When set to PEG Port, the motherboard boots up using the PCI Express graphics card, if one
is installed. Otherwise, it defaults to the onboard graphics processor.
When set to Auto, the BIOS checks to see if a PCI Express graphics card is installed. If it
detects that a PCI Express graphics card is present, the motherboard boots up using that card.
Otherwise, it defaults to the onboard graphics processor.
If you have a PCI Express graphics card installed in your system, you should set this BIOS
feature to PEG Port. This skips the detection process, which may speed up the booting
process.
If you do not have a PCI Express graphics card installed in your system, you should set this
BIOS feature to Onchip VGA. This skips the detection process, which may speed up the
booting process.
If you are not sure what to select, leave the BIOS feature at its default setting of Auto.
Init Display First
This BIOS feature allows you to select whether to boot the system using the AGP graphics
card or the PCI graphics card. This is particularly important if you have AGP and PCI graphics
cards but only one monitor.
