SHB100 LGA775 SBC User's Manual

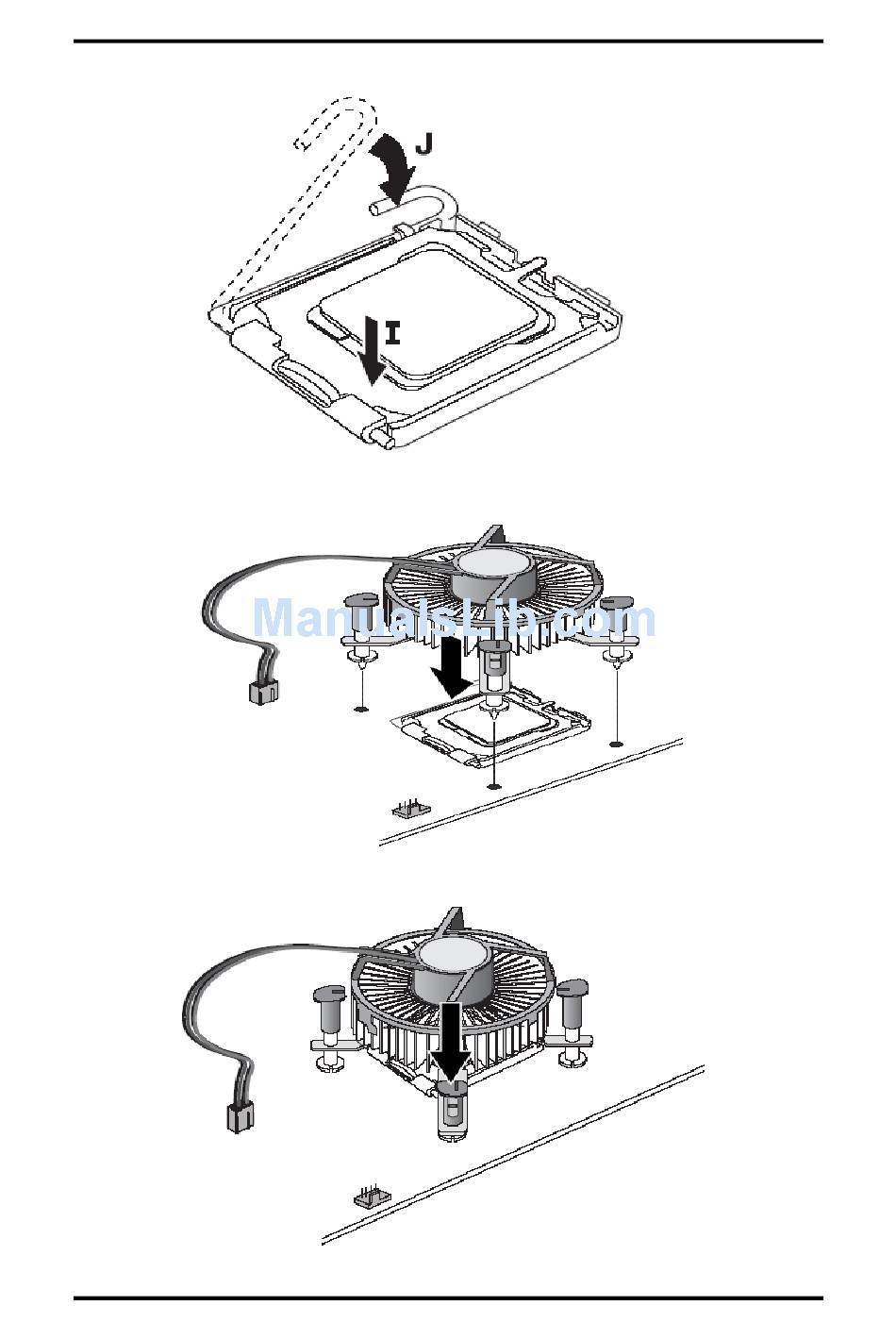

Slightly push down the cover and hook the lever (I~J). The CPU is completely locked.
Orientate the CPU cooling fan to fixing holes on the board.
Screw the CPU cooling fan onto the board.
22
Hardware Installation
