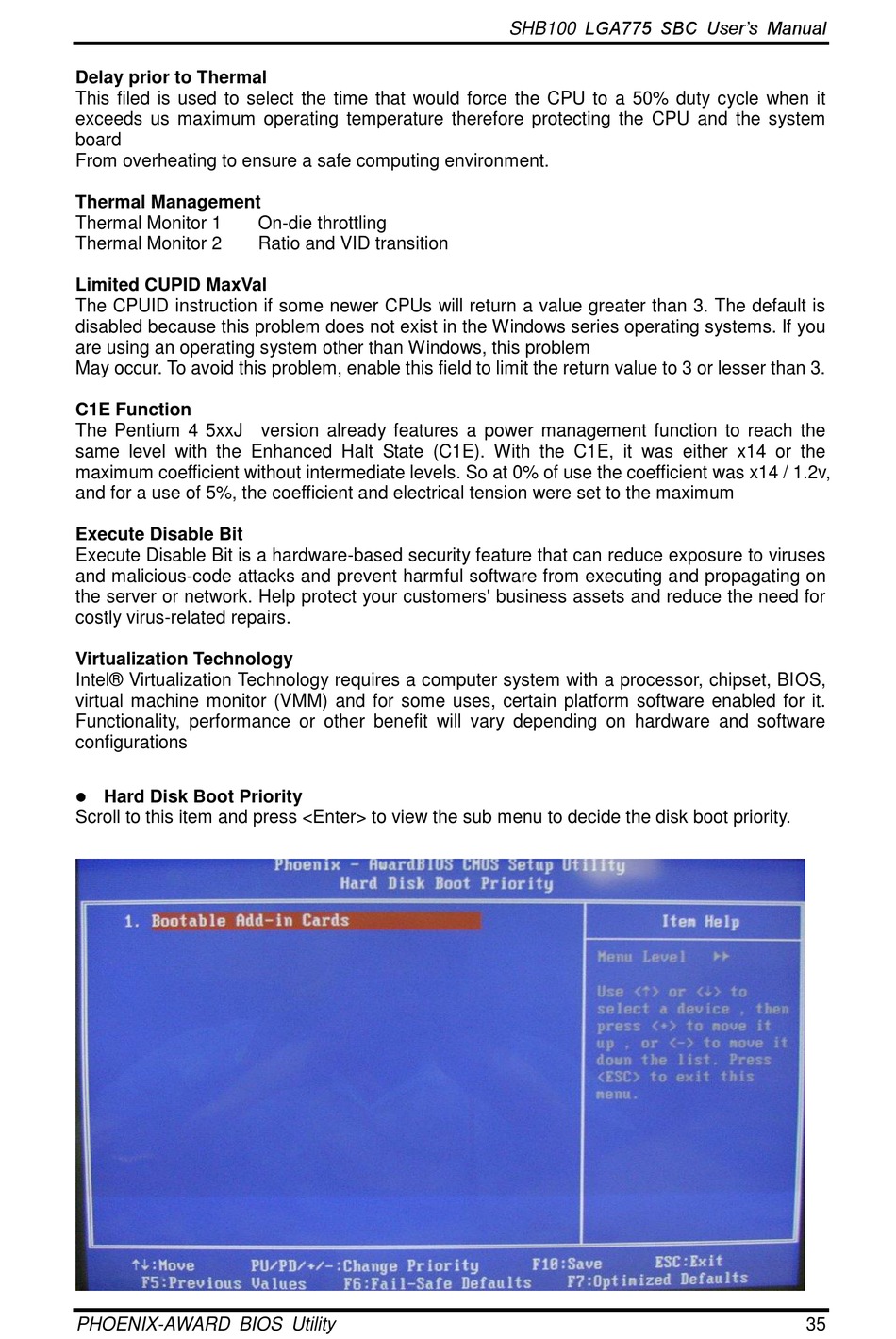

Delay prior to Thermal
This filed is used to select the time that would force the CPU to a 50% duty cycle when it
exceeds us maximum operating temperature therefore protecting the CPU and the system
board
From overheating to ensure a safe computing environment.
Thermal Management
Thermal Monitor 1
Thermal Monitor 2
Limited CUPID MaxVal
The CPUID instruction if some newer CPUs will return a value greater than 3. The default is
disabled because this problem does not exist in the Windows series operating systems. If you
are using an operating system other than Windows, this problem
May occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.
C1E Function
The Pentium 4 5xxJ version already features a power management function to reach the
same level with the Enhanced Halt State (C1E). With the C1E, it was either x14 or the
maximum coefficient without intermediate levels. So at 0% of use the coefficient was x14 / 1.2v,
and for a use of 5%, the coefficient and electrical tension were set to the maximum
Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses
and malicious-code attacks and prevent harmful software from executing and propagating on
the server or network. Help protect your customers' business assets and reduce the need for
costly virus-related repairs.
Virtualization Technology
Intel® Virtualization Technology requires a computer system with a processor, chipset, BIOS,
virtual machine monitor (VMM) and for some uses, certain platform software enabled for it.
Functionality, performance or other benefit will vary depending on hardware and software
configurations
 Hard Disk Boot Priority
Scroll to this item and press <Enter> to view the sub menu to decide the disk boot priority.
PHOENIX-AWARD BIOS Utility
On-die throttling
Ratio and VID transition
