SHB100 LGA775 SBC User's Manual
2.4.1

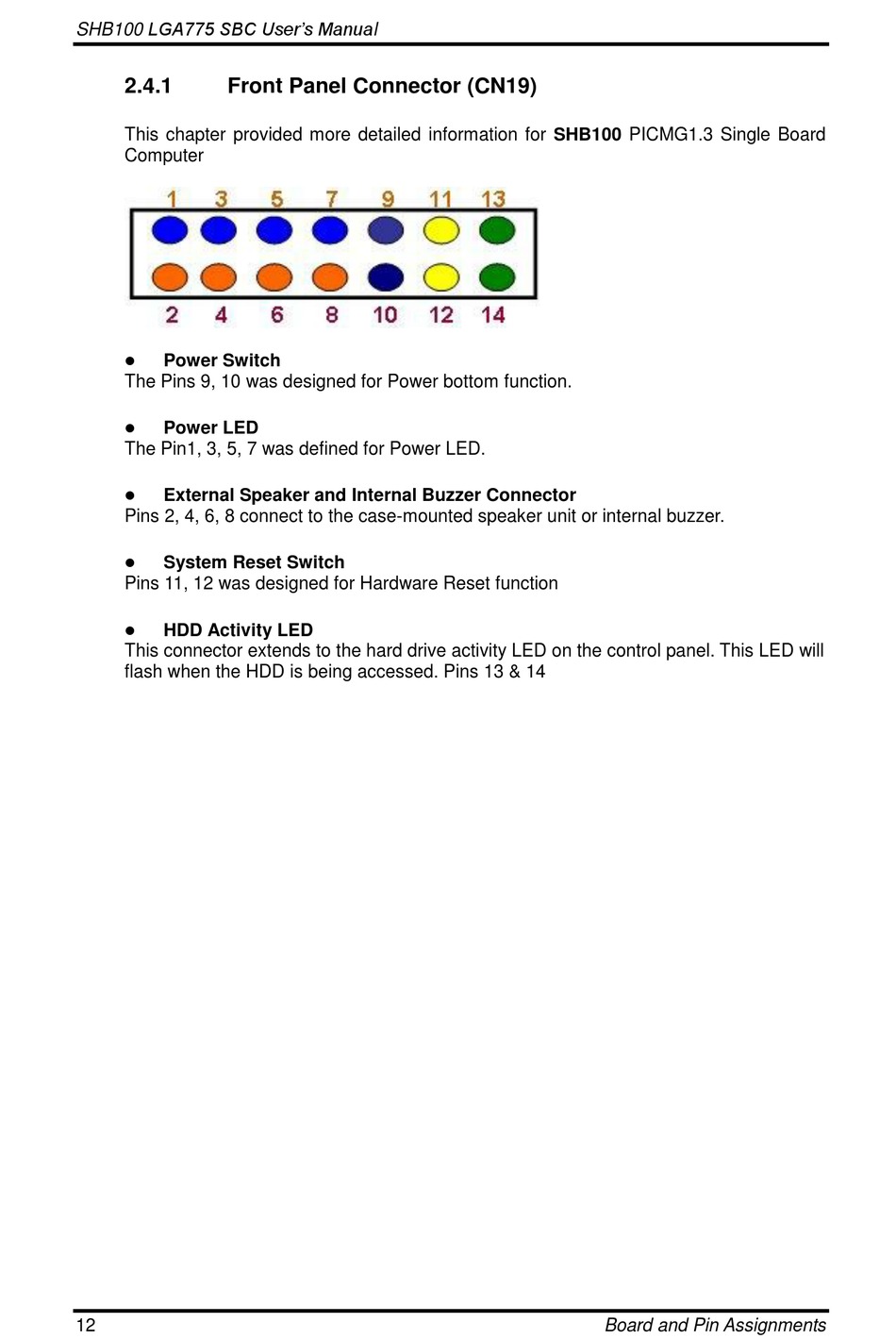

Front Panel Connector (CN19)
This chapter provided more detailed information for SHB100 PICMG1.3 Single Board
Computer
Power Switch
The Pins 9, 10 was designed for Power bottom function.
Power LED
The Pin1, 3, 5, 7 was defined for Power LED.
External Speaker and Internal Buzzer Connector
Pins 2, 4, 6, 8 connect to the case-mounted speaker unit or internal buzzer.
System Reset Switch
Pins 11, 12 was designed for Hardware Reset function
HDD Activity LED
This connector extends to the hard drive activity LED on the control panel. This LED will
flash when the HDD is being accessed. Pins 13 & 14
12
Board and Pin Assignments
