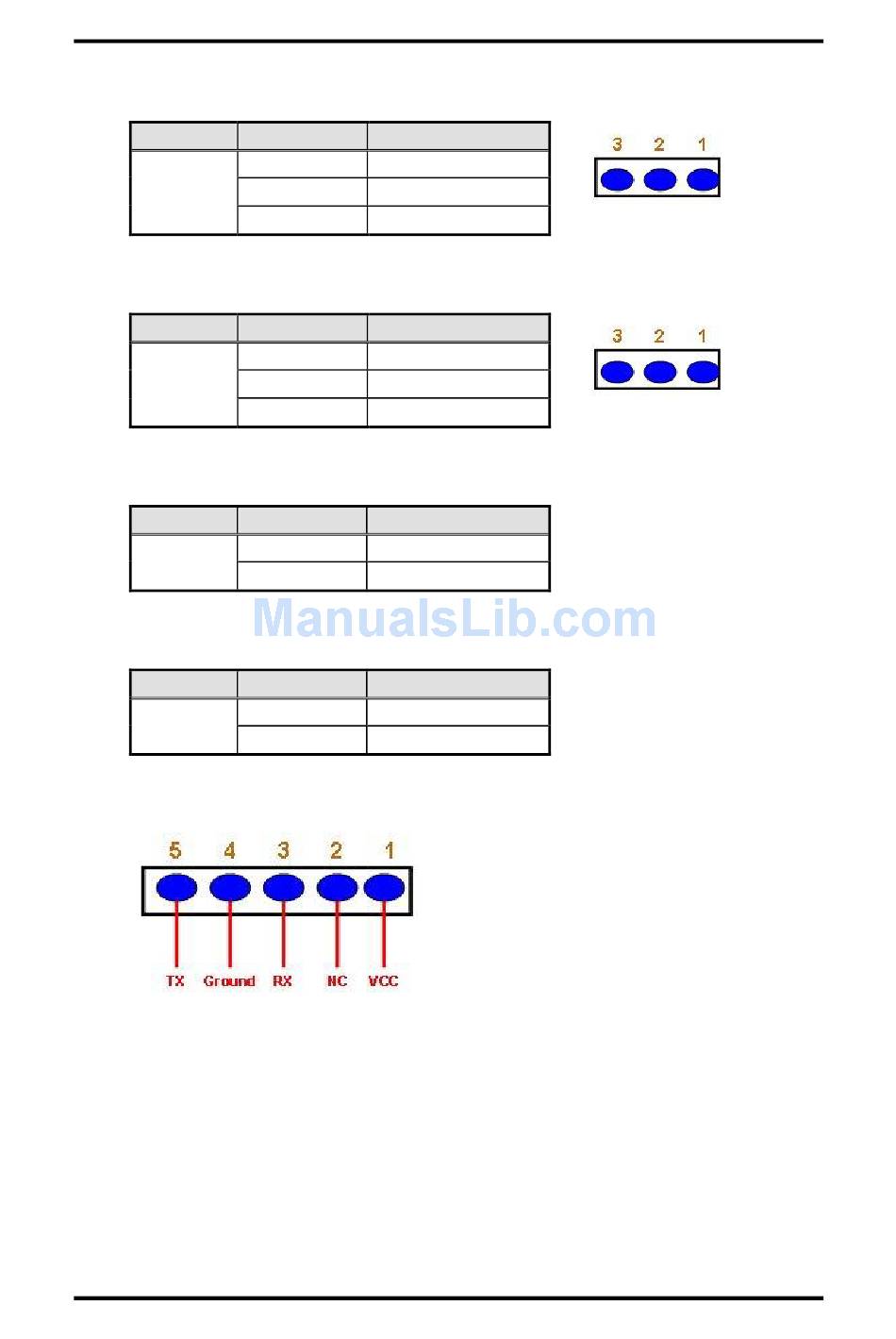

2.3.4

LAN2 Speed Jumper (JP8)

Description
LAN2 Speed
2.3.5 LAN1 Speed Jumper (JP10)
Description
LAN1 Speed
2.3.6 Active LED for LAN2 Jumper (JP11)
Description
Active LED
for LAN2
2.3.7 Active LED for LAN1 Jumper (JP12)
Description
Active LED
for LAN1
2.3.8 IrDA connector (JP13)
Board and Pin Assignments
Function Jumper Setting
Pin 1
100,Low Active
Pin 2
3.3V
Pin 3
Gigibit,Low
Active
Function Jumper Setting
Pin 1
100,Low Active
Pin 2
3.3V
Pin 3
Gigibit,Low
Active
Function Jumper Setting
Pin 1
3.3V
Link active Pin 2
Function Jumper Setting
Pin 1
3.3V
Link active Pin 2
SHB100 LGA775 SBC User's Manual
9
