UNPACKING AND INSTALLATION
3
OF THE UNIT

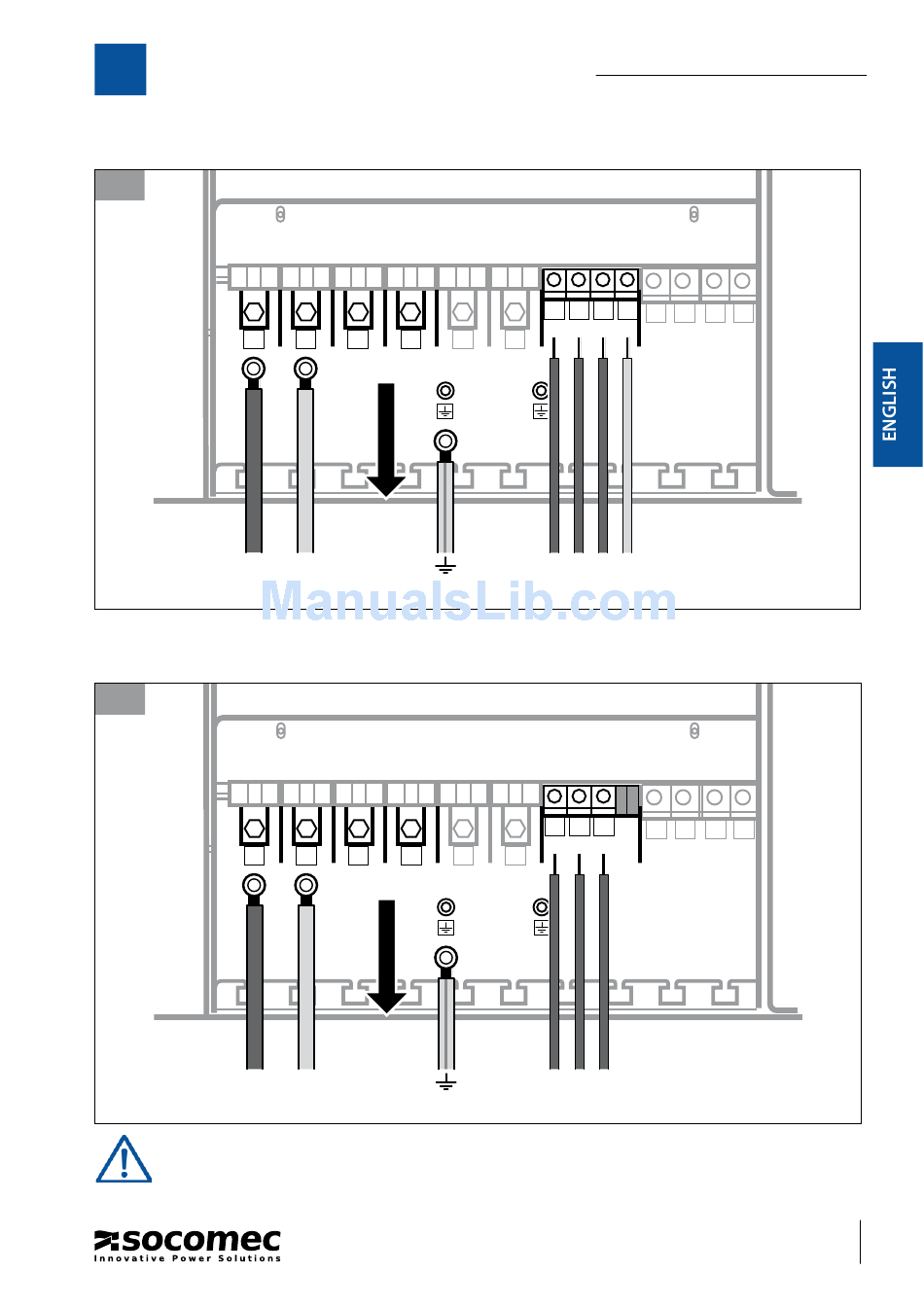

3.6.1 Connections of MAINS and AUX MAINS.
3.6.1-1
L11
AUX MAINS
SUPPLY
L11
ø 95÷120 mm
3.6.2 MAINS and AUX MAINS network connections on UPS without neutral on the main network
3.6.2-1
L11
AUX MAINS
SUPPLY
L11
ø 95÷120 mm
Do not combine the main network and the auxiliary network
N1 L14 N4 L12
OUT TRANSFORMER IN TRANSFORMER
TO
LOAD
N11
2 ø 95÷120 mm
N1 L14 N4 L12
OUT TRANSFORMER IN TRANSFORMER
TO
LOAD
N11
2 ø 95÷120 mm
MASTERYS IP+
L1 L2 L3 N
+B2
MAINS SUPPLY
N2
L1 L2 L3 N
2
2 ø 25÷35 mm
L1 L2 L3
+B2
MAINS SUPPLY
N2
L1 L2 L3
2 ø 25÷35 mm 2
40-60 kVA 3/1
-B2 -B1 +B1
EXT. BATTERY
-B2 -B1 +B1
EXT. BATTERY
