COMMUNICATION
9.2 STANDARD LAN WEB PAGE.
By connecting the UPS to a standard LAN network, the operating status of the UPS can be monitored from any
PC connected to the network through an html page.
9.2.1 Activation.
Comply with the following operations to activate
the monitoring system:

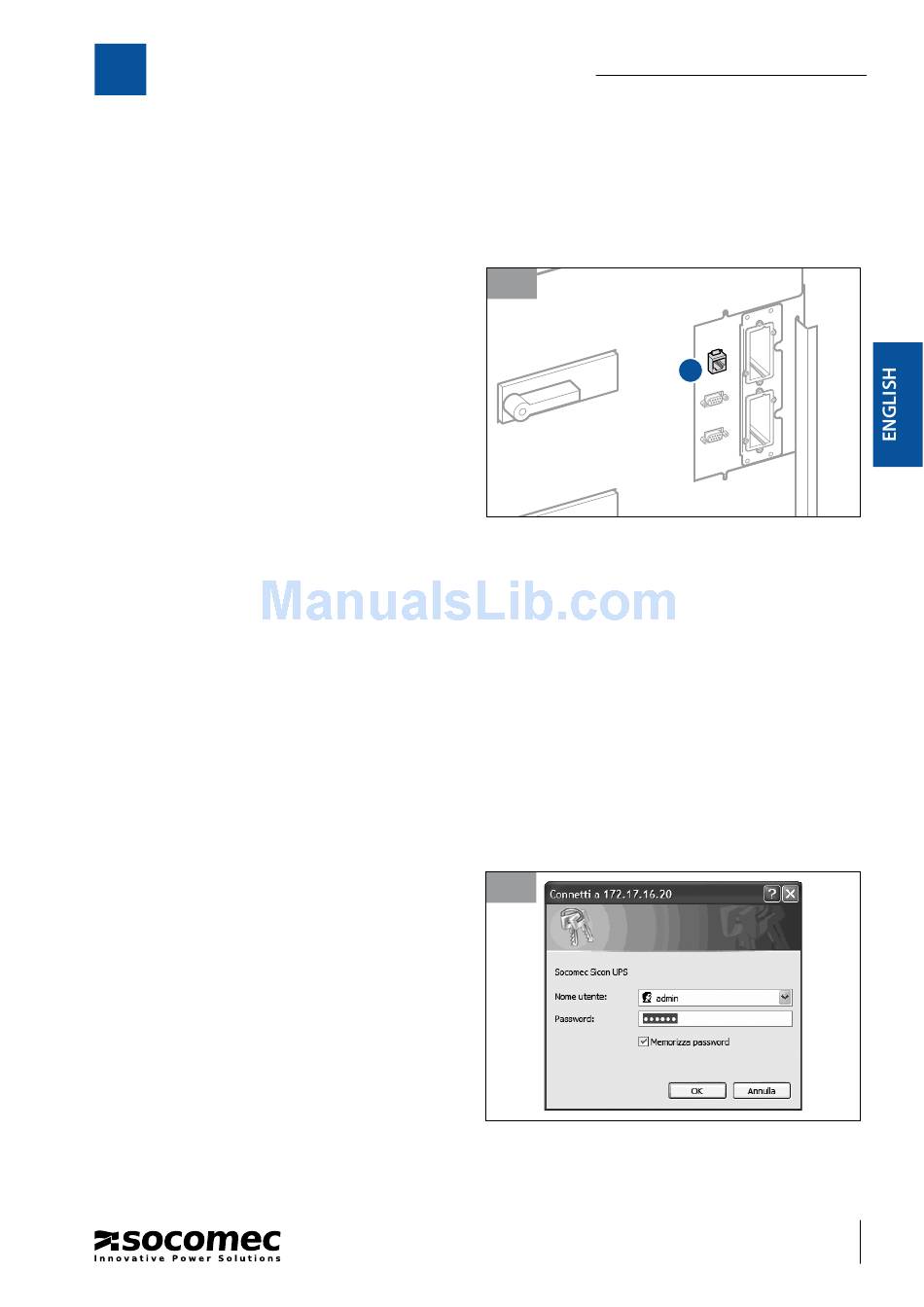

• Connect the UPS to the LAN network (connector
D in Fig. 9.2.1-1).
A. If the DHCP protocol (Dynamic Host Confi gura-
tion Protocol) is enabled in the local network,
check the UPS mimic panel for the IP address in
the menu PARAMETERS > PRESENT CONFIG >
LOCAL AREA NETWORK IP (go on to point C).
B. If the BOOT DHCP protocol is not enabled in the
local network:
Foreword: the following is applicable only if the user is in possession of the administrator rights, otherwise the
procedure indicated below is only valid if using a stand-alone PC (i.e. not in a network of computers with admin-
istrator privileges) and a network twisted cable.
Deactivate DHCP mode in the COMMAND> EXT.COMMAND> DHCP DISABLE menu on the UPS mimic
panel.
Read the IP address given in the PARAMETERS > PRESENT CONFIG > LOCAL AREA NETWORK IP menu
on the UPS mimic panel (by default 192.168.7.19).
From a PC connected to the network add the address read by means of the following command: Route add
192.168.7.19 210.67.192.147 (assuming 210.67.192.147 to be the IP address of the PC being used).
C. Open an internet browser and key in the address http://XXX.XXX.XXX.XXX and press send (where xxx.xxx.
xxx.xxxx is the IP address read on the mimic panel).
D. A login and a password will be requested
(fi g. 9.2.1-2), the default parameters are:
• login: admin
• password: public
Insert data and click OK.
The main web supervisor page will be displayed
and the functions are described in the following
paragraph.
MASTERYS IP+
9.2.1-1
9.2.1-2
40-60 kVA 3/1
D
37
IOMMASIPXX07-GB 02
