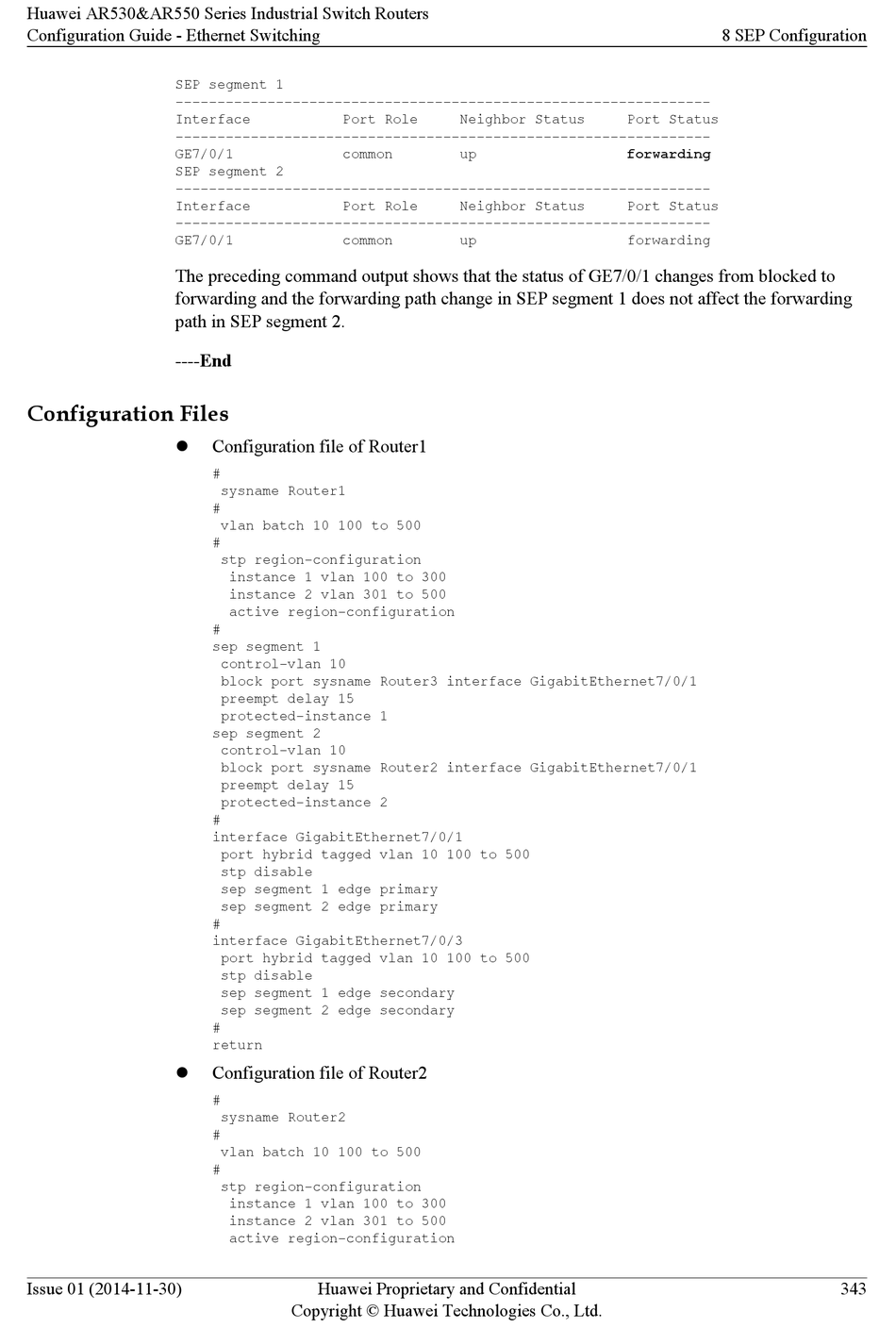

Huawei AR530&AR550 Series Industrial Switch Routers
Configuration Guide - Ethernet Switching
SEP segment 1
----------------------------------------------------------------
Interface
----------------------------------------------------------------
GE7/0/1
SEP segment 2
----------------------------------------------------------------
Interface
----------------------------------------------------------------
GE7/0/1
The preceding command output shows that the status of GE7/0/1 changes from blocked to
forwarding and the forwarding path change in SEP segment 1 does not affect the forwarding
path in SEP segment 2.
----End
Configuration Files
l
l
Issue 01 (2014-11-30)
Port Role
common
Port Role
common
Configuration file of Router1
#
sysname Router1
#
vlan batch 10 100 to 500
#
stp region-configuration
instance 1 vlan 100 to 300
instance 2 vlan 301 to 500
active region-configuration
#
sep segment 1
control-vlan 10
block port sysname Router3 interface GigabitEthernet7/0/1
preempt delay 15
protected-instance 1
sep segment 2
control-vlan 10
block port sysname Router2 interface GigabitEthernet7/0/1
preempt delay 15
protected-instance 2
#
interface GigabitEthernet7/0/1
port hybrid tagged vlan 10 100 to 500
stp disable
sep segment 1 edge primary
sep segment 2 edge primary
#
interface GigabitEthernet7/0/3
port hybrid tagged vlan 10 100 to 500
stp disable
sep segment 1 edge secondary
sep segment 2 edge secondary
#
return
Configuration file of Router2
#
sysname Router2
#
vlan batch 10 100 to 500
#
stp region-configuration
instance 1 vlan 100 to 300
instance 2 vlan 301 to 500
active region-configuration
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Neighbor Status Port Status
up forwarding
Neighbor Status Port Status
up forwarding
8 SEP Configuration
343
