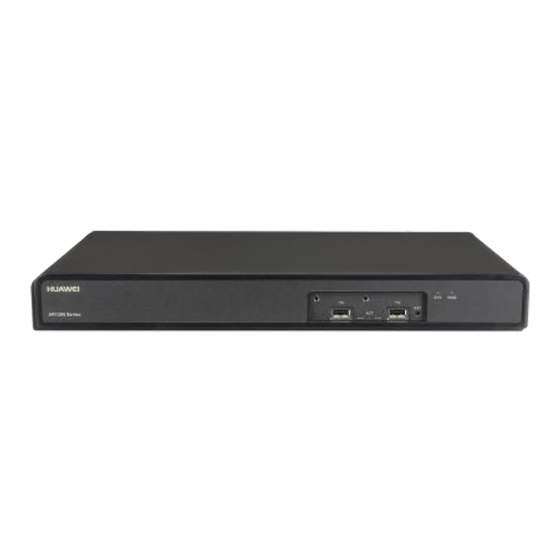

Huawei Vodafone AR1220 Installation Manual
Hide thumbs
Also See for Vodafone AR1220:
- Brochure (13 pages) ,
- Compliance and safety manual (31 pages) ,
- Hardware description (218 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Huawei Vodafone AR1220
Summary of Contents for Huawei Vodafone AR1220
- Page 1 Huawei AR1220 router installation guide...
- Page 2 AR1220 You have received a package ordered by your delivery coordinator. The package should contain the following: o Huawei AR1220 Router o RJ11 cable (white) o Power lead o Cat 5 RJ45 Ethernet cable (blue) - NOT REQUIRED o Microfilter...
- Page 3 AR1220 An Openreach engineer has installed a brand new access line for your One Net solution. The faceplate for the socket comes in two variants: single and dual. Dual-socket faceplate Single-socket faceplate Doesn’t require a microfilter Requires a microfilter 18 October 2018 C2 General...
- Page 4 AR1220 Depending on the type of faceplate, connect the RJ11 cable as shown below: Dual-socket faceplate Single-socket faceplate With RJ11 alone With microfilter and RJ11 18 October 2018 C2 General...
- Page 5 AR1220 Depending on your access line type, the port is labelled ADSL (for the ADSL line type) or VDSL (for FTTC line type). The connection instructions are exactly the same. 18 October 2018 C2 General...
- Page 6 AR1220 1. Take the RJ11 cable (white). 2. Connect the RJ11 cable to the port marked ADSL or VDSL. 3. Once connected, power on both the router and the modem. You should see LEDs light up at the top of your modem and at the back of your router.
- Page 7 AR1220 The router installation is now complete! Inform your delivery coordinator so they can perform the necessary checks on your router. 18 October 2018 C2 General...
