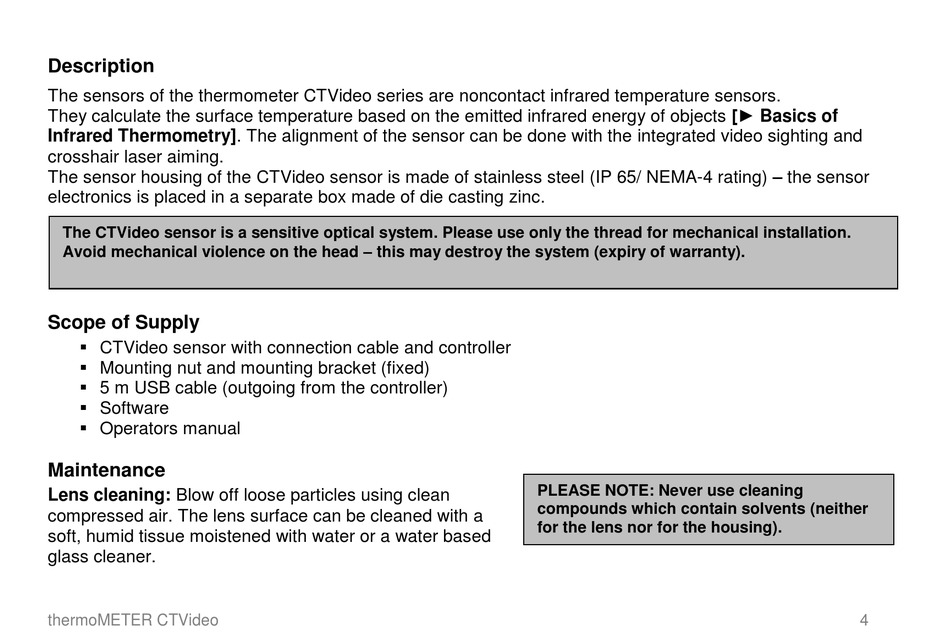

Description

The sensors of the thermometer CTVideo series are noncontact infrared temperature sensors.
They calculate the surface temperature based on the emitted infrared energy of objects [► Basics of
Infrared Thermometry]. The alignment of the sensor can be done with the integrated video sighting and
crosshair laser aiming.
The sensor housing of the CTVideo sensor is made of stainless steel (IP 65/ NEMA-4 rating) – the sensor
electronics is placed in a separate box made of die casting zinc.
The CTVideo sensor is a sensitive optical system. Please use only the thread for mechanical installation.
Avoid mechanical violence on the head – this may destroy the system (expiry of warranty).

Scope of Supply

 CTVideo sensor with connection cable and controller
 Mounting nut and mounting bracket (fixed)
 5 m USB cable (outgoing from the controller)
 Software
 Operators manual

Maintenance

Lens cleaning: Blow off loose particles using clean
compressed air. The lens surface can be cleaned with a
soft, humid tissue moistened with water or a water based
glass cleaner.
thermoMETER CTVideo
PLEASE NOTE: Never use cleaning
compounds which contain solvents (neither
for the lens nor for the housing).
