MICRO-EPSILON CTVM-1L Instruction Manual page 27

Designation
+8 ... 36 VDC
Power supply
GND Ground (0 V) of power supply
GND Ground (0 V) of internal in- and outputs
AL2 Alarm 2 (Open collector output)
OUT-TC Analog output thermocouple (J or K)
OUT-mV/mA Analog output object temperature (mV or mA)
F1-F3 Functional inputs
GND Ground (0 V)
3V SW BLACK/ Power supply Laser (+)
GND GREY/ Ground Laser (–)
ORANGE Temperature probe sensor (NTC)
BLUE Sensor ground
PURPLE Sensor power
YELLOW Detector signal
Power supply
Please use a separate, stabilized power supply unit with an output voltage of 5 – 28 VDC
which can supply 160 mA. The ripple should be max. 200 mV.
Please use shielded cables only for all power and data lines.
The sensor shield has to be grounded.
CAUTION: Please do never connect a supply voltage to the analog outputs as this will destroy the output!
The CTVideo is not a 2-wire sensor !
thermoMETER CTVideo

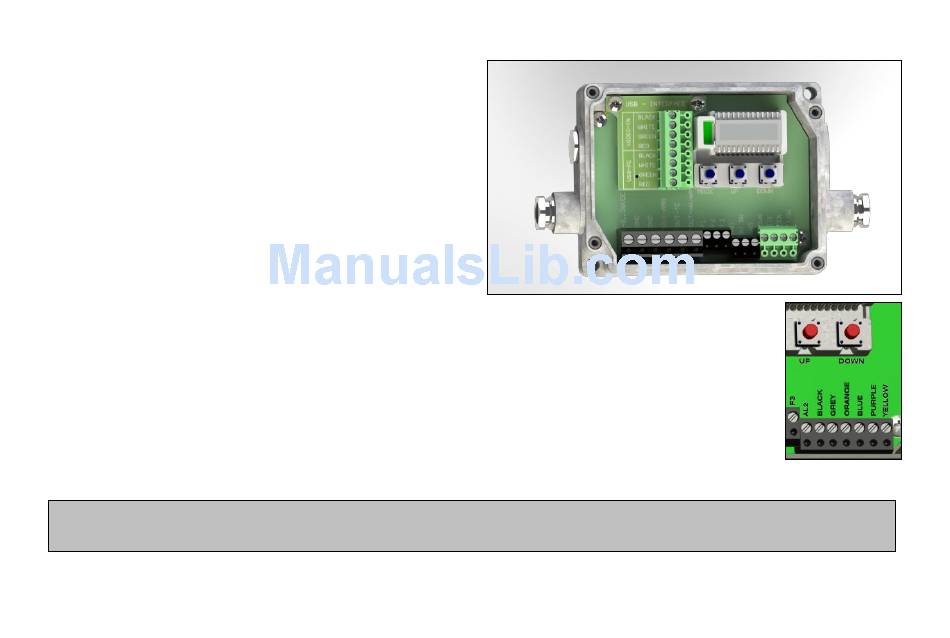

Opened controller
with terminal connections
