Focusing and Video Sighting

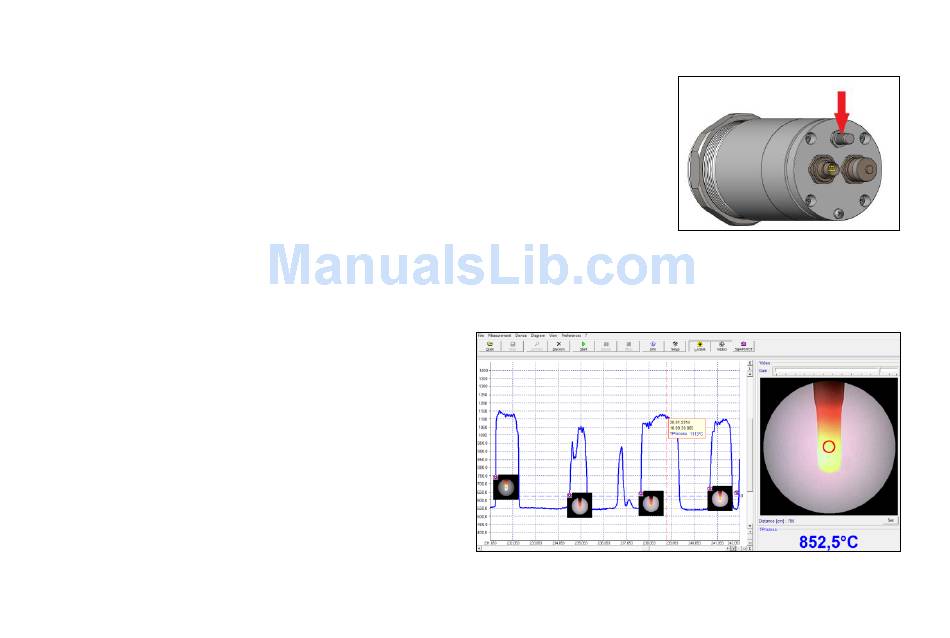

On the back plane of the sensor you will find a rotary button for focusing of the
optics.
To set the focus to the desired measurement distance you have to connect
the sensor with a PC using the USB cable. Please start the software. You will
see the video beside the temperature-time diagram. The position of the
measurement spot is indicated by a circle inside the video picture. The size of
this circle is equivalent to the IR spot size.
By turning the rotary button clockwise you will change the focus in direction
far. By turning counterclockwise you will change the focus in direction close.
After a successful focusing please enter the measurement distance (distance sensor front – object) in the
according field in the software (underneath the video picture).
You will find a detailed description of the video
settings in the software description which you can
call via the menu [?/ Help...].
thermoMETER CTVideo 39
