Electrical Installation

Cable Connections

The CTVideo sensors are equipped with connectors in the backplane. Therefore an opening of the sensor
for assembling or disassembling is not necessary. An USB cable (5 m) is already connected on the controller
and can be used for linking to a computer.

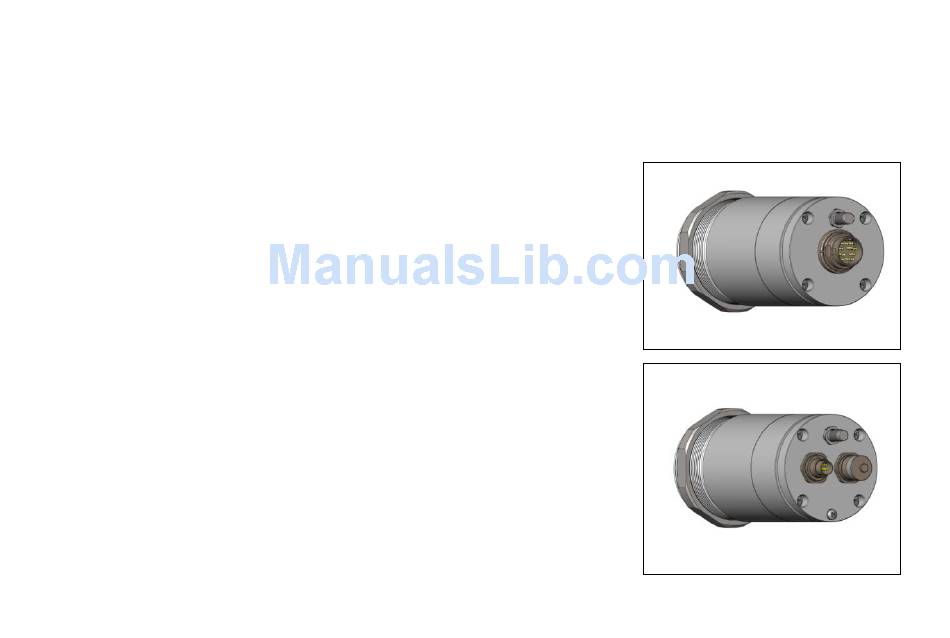

Basic version
The standard version of the CTVideo has a 12-pin connector which is
integrated in the sensors backplane. The connection to the controller is
done by the blue sensor cable. Cable lengths of 3 m, 5 m and 10 m are
available.
High temperature version
The high temperature version of the CTVideo has two connectors
(7-pin and 5-pin), which are integrated in the sensor backplane. The
connection sensor – controller will be done in this case via:
a 7-core high temperature cable (sensor signals, laser) and
a 4-core high temperature cable (video signal).
Cable lengths of 3 m, 5 m and 10 m are available.
thermoMETER CTVideo 23
