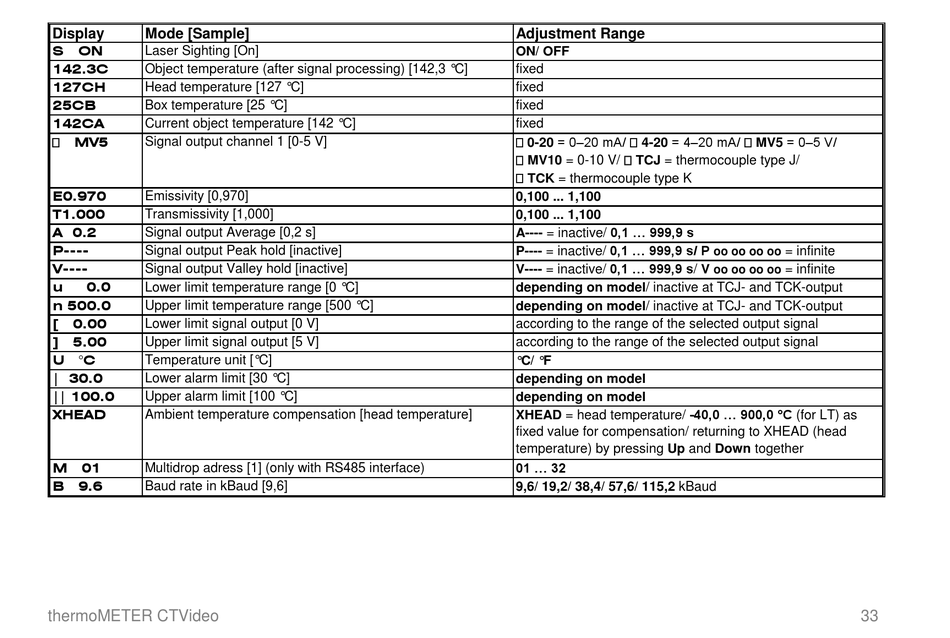

Display Mode [Sample]
S ON
Laser Sighting [On]
142.3C
Object temperature (after signal processing) [142,3 °C]
127CH
Head temperature [127 °C]
25CB
Box temperature [25 °C]
142CA
Current object temperature [142 °C]
MV5
Signal output channel 1 [0-5 V]
E0.970
Emissivity [0,970]
T1.000
Transmissivity [1,000]
A 0.2
Signal output Average [0,2 s]
P----
Signal output Peak hold [inactive]
V----
Signal output Valley hold [inactive]
u 0.0
Lower limit temperature range [0 °C]
n 500.0
Upper limit temperature range [500 °C]
[ 0.00
Lower limit signal output [0 V]
] 5.00
Upper limit signal output [5 V]
U °C
Temperature unit [°C]
| 30.0
Lower alarm limit [30 °C]
|| 100.0
Upper alarm limit [100 °C]
XHEAD
Ambient temperature compensation [head temperature]
M 01
Multidrop adress [1] (only with RS485 interface)
B 9.6
Baud rate in kBaud [9,6]
thermoMETER CTVideo
Adjustment Range
ON/ OFF
fixed
fixed
fixed
fixed
0-20 = 0–20 mA/
4-20 = 4–20 mA/
MV10 = 0-10 V/ TCJ = thermocouple type J/
TCK = thermocouple type K
0,100 ... 1,100
0,100 ... 1,100
A---- = inactive/ 0,1 ... 999,9 s
P---- = inactive/ 0,1 ... 999,9 s/ P
V---- = inactive/ 0,1 ... 999,9 s/ V
depending on model/ inactive at TCJ- and TCK-output
depending on model/ inactive at TCJ- and TCK-output
according to the range of the selected output signal
according to the range of the selected output signal
°C/ °F
depending on model
depending on model
XHEAD = head temperature/ -40,0 ... 900,0 °C (for LT) as
fixed value for compensation/ returning to XHEAD (head
temperature) by pressing Up and Down together
01 ... 32
9,6/ 19,2/ 38,4/ 57,6/ 115,2 kBaud
MV5 = 0–5 V/
= infinite
oo oo oo oo
= infinite
oo oo oo oo
