thermoMETER LS
Operators manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS and is the answer not in the manual?

Questions and answers

Summary of Contents for MICRO-EPSILON LS

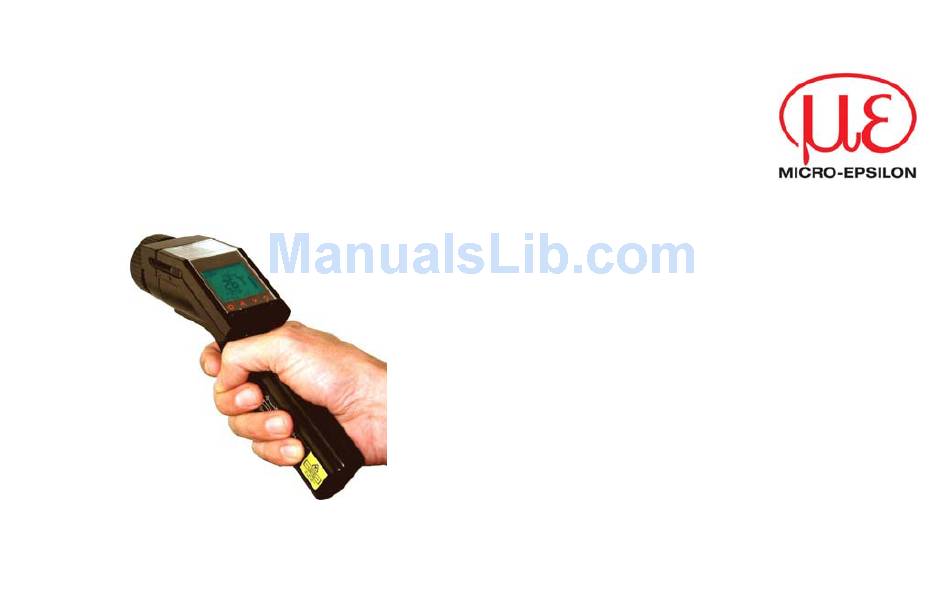

  • Page 1 LS Operators manual...
  • Page 2: Table Of Contents

    Optics ............................ 17 Setup Menu 1........................19 Emissivity Setting ........................20 High-Alarm ..........................21 Low-Alarm ..........................22 Long-Term Measurement (Lock Mode) ................23 Setup Menu 2........................25 Temperature Unit ........................26 Buzzer ........................... 27 Flip-Display..........................28 Ambient Temperature Compensation................... 29 thermoMETER LS...
  • Page 3 Scaling of the temperature axis .................... 47 7.7.3 Stop Measurement........................ 48 7.7.4 Saving of Data........................49 7.7.5 Opening of Files ........................50 7.7.6 Diagram Settings........................50 7.7.7 Measurement Configuration ....................51 7.7.8 Device Setup ......................... 52 Device Information ........................ 53 thermoMETER LS...
  • Page 4 Basics of Infrared Thermometry.................... 59 Emissivity ..........................60 10.1 Definition ..........................60 10.2 Determination of unknown Emissivity’s ................61 10.3 Characteristic Emissivities..................... 62 Appendix A – Emissivity Table Metals....................63 Appendix B – Emissivity Table Non Metals ................... 64 thermoMETER LS...
  • Page 5 EMC: EN 61326-1 Safety Regulations: EN 61010-1:1993/ A2:1995 The product accomplishes the requirements of the EMC Directive 89/336/EEC. Scope of Supply Micro-Epsilon Messtechnik GmbH & Co.KG • LS unit Königbacher Str. 15 • 2 batteries (type AA) D – 94496 Ortenburg •...
  • Page 6 You will find the serial number on the unit. Always use this number when you contact the customer service concerning maintenance, additional order of components, spare parts or repairs. Thank you for choosing the thermoMETER LS infrared thermometer. Comments on this manual Read the manual carefully before the initial start-up.
  • Page 7 Orientation Icons for easy finding of Important information and notes Operating elements on the LS unit │ Buttons in the software [► Reference to other chapters] [Menu: Hint to menu items in the software] DJUSTABLE ALUES Readings on the unit display │ Readings in software screens...
  • Page 8 MICRO-EPSILON will specifically not be responsible for eventual consequential damages. MICRO-EPSILON always strives to supply the customers with the finest and most advanced equipment. Development and refinement is therefore performed continuously and the right to design changes without prior notice is accordingly reserved. For translations in other languages, the data and statements in the German language operation manual are to be taken as authoritative.
  • Page 9: Basic Operation

    (please remove). If the batteries are low the battery symbol will appear in the display. Please exchange the batteries immediately if the symbol is flashing. Do not use old and new batteries together. Use only alkaline or rechargeable batteries [Type: Mignon AA, R6, UM3]. thermoMETER LS...
  • Page 10: User Interface

    Basic Operation User interface Precision glass optics Optics toggle switch SF/ CF Tripod mount Trigger Display Up and Down buttons Mode (I and II) buttons Handle and battery compartment USB interface t/c input thermoMETER LS...
  • Page 11: Display

    IR-temperature and unit (°C/ °F) Lower display: HOLD, emissivity, probe temperature, Tamb-value, material and location name Assignment of buttons: Mode I I , Mode II II , Up Λ and Down V Bar graph display Up and Down buttons Mode buttons thermoMETER LS...
  • Page 12: Measurement

    The temperature of the object is shown in the display [2]. The LS can also be used in vertical position (measurement downwards). With this handling small objects like electronic SMD components can easily be aimed and measured.
  • Page 13: Measurement Functions

    (no segment) and maximum reading (all segments). Hold function: The temperature will be displayed for 7 seconds after the Trigger is released. The display shows HOLD. The unit automatically switches off after this time if no button is pressed. thermoMETER LS...
  • Page 14 Maximum reading Minimum reading Average reading [AVG] Difference reading [MAX] [MIN] [DIF] MAX: maximum value determined during AVG: average value (related to duration of measurement measurement) MIN: minimum value determined during DIF: the difference between MIN and MAX measurement thermoMETER LS...
  • Page 15 Recall (Last Value) The last measured value remains stored in the LS after switch off. To recall this value please press (in the switched off condition) the I - or II -button. The unit will be set into the HOLD mode.
  • Page 16: Display Backlight

    (only if the trigger is pulled) indicates the active laser. Default setting: WARNING: Do not point the laser directly at the eyes of persons or animals! Do not stare into the laser beam. Avoid indirect exposure via reflective surfaces! thermoMETER LS...
  • Page 17: Optics

    Measurement Optics The LS has switchable optics. The two possible operating modes are indicated as SF mode (Standard Focus) and CF mode (Close Focus). In the SF mode (standard operating mode) objects ≥ 16mm can be measured. The measurement spot will be exactly marked with the patented crosshair laser, i.e.
  • Page 18 D:S (focus point) = 75:1/ 16 mm@1200 mm D:S (focus point) = 62:1/ 1 mm@62 mm D:S (far field) = 36:1 D:S (far field) = 4:1 D = Distance from front of the unit to the object S = Spotsize thermoMETER LS...
  • Page 19: Setup Menu 1

    To activate the setup menu the unit must be in the HOLD mode. ⇒Measure mode Trigger⇒S I ⇒S ⇒next menu item If none of these buttons is pressed the settings or changes done before will not be saved and the unit switches off after approx. 30 s. thermoMETER LS...
  • Page 20: Emissivity Setting

    It can range between 0 and 1 (0 and 100 %) [► Emissivity]. Setting range: 0,100...1,100 (values > 1,000 = amplification) Default setting: 0,950 HOLD⇒ II ⇒ε flashes⇒ Λ ⇒ ε INCREASE ⇒ V ⇒ ε DECREASE thermoMETER LS...
  • Page 21: High-Alarm

    [► Buzzer] will be generated: Setting range: -35...900°C Default setting: 900°C HOLD⇒ II ⇒ I ⇒H flashes⇒ Λ ⇒ INCREASE ALUE ⇒ V ⇒ DECREASE ALUE ⇒ II ⇒A ⇒alarm symbol [beside H] on/ off CTIVATION EACTIVATION thermoMETER LS...
  • Page 22: Low-Alarm

    [► Buzzer] will be generated: Setting range: -35...900°C Default setting: -35°C HOLD⇒ II ⇒2x I ⇒L flashes⇒ Λ ⇒ INCREASE ALUE ⇒ V ⇒ DECREASE ALUE ⇒ II ⇒A ⇒alarm symbol [beside L] on/ off CTIVATION EACTIVATION thermoMETER LS...
  • Page 23: Long-Term Measurement (Lock Mode)

    The laser is only working if the trigger is pulled. Setting range: On/ Off Default setting: HOLD⇒ II ⇒3x I ⇒Lock symbol flashes⇒ Λ ⇒O ⇒ V ⇒O after setting to On: 2x I ⇒HOLD+Lock⇒Trigger⇒starting Measurement mode+Lock Trigger⇒starting Measurement mode+Lock thermoMETER LS...
  • Page 24 You can deactivate the Lock function in the same order, but starting from Measurement mode+Lock. The data logger functions are also available in the Lock mode [► Data Logger]. For a long-term temperature measurement of an object it is recommended to mount the unit on a tripod. thermoMETER LS...
  • Page 25: Setup Menu 2

    In this menu Temperature unit, Buzzer, Flip display, Ambient temperature compensation and Factory default settings can be set up. HOLD⇒ II ⇒4x I ⇒2. Menu The procedure is the same as described in the setup menu 1: ⇒Measurement mode Trigger⇒S I ⇒S ⇒next menu item thermoMETER LS...
  • Page 26: Temperature Unit

    Temperature Unit With this function you can switch the temperature unit in the display between °C und °F. Setting range: °C/ °F Default setting: °C 2. Menu⇒ II ⇒Temperature unit flashes ⇒ Λ ⇒°C/ °F ⇒ V ⇒°C/ °F thermoMETER LS...
  • Page 27: Buzzer

    Independent from this the key tone (confirmation by pressing Mode, Up and Down button) will remain On. Setting range: On/ Off Default setting: 2. Menu⇒ II ⇒ I ⇒Buzzer symbol flashes ⇒ Λ ⇒O ⇒ V ⇒O thermoMETER LS...
  • Page 28: Flip-Display

    Setup Menu 2 Flip-Display The LS has a so called Flip display (turn around display). As the unit can be used in horizontal and in vertical position (preferably in combination with the CF mode), the ability to switch allows a comfortable operation in both positions.
  • Page 29: Ambient Temperature Compensation

    [Tamb]: Setting range: -35...900°C Default setting: deactivated An activation of this function on the LS for the first time is only possible with the supplied software [► Device Setup]. 2. Menu⇒ II ⇒3x I ⇒Tamb ⇒ Λ ⇒ INCREASE ALUE ⇒...
  • Page 30: Reset

    2. Menu⇒ II ⇒3 or 4 x I ⇒RES⇒ II ⇒RES flashes⇒ II ⇒R ESET ⇒ I ⇒HOLD ⇒Trigger⇒Measure mode depends on the status of Tamb function The stored values in the data logger will not be deleted with the reset function. thermoMETER LS...
  • Page 31: Data Logger

    Data Logger Data Logger The LS has an internal data logger with a maximum capacity of 100 measurement protocols. Every protocol contains the following values: Position number [P 00...P 99], object temperature, MAX-, MIN-, AVG- and DIF-value, emissivity, probe temperature (if connected), material and location name Storing Data To store any data the unit must be in the HOLD mode.
  • Page 32: Material And Location Names

    Material and Location Names You can assign a 4-digit alpha numeric description to any data logger position. This description will be shown in the bottom display and has the following presetting: P000 (for position 1) – P099 (for position 100) thermoMETER LS...
  • Page 33 Disc symbol + choosen position [Pxx]⇒2x II ⇒1. character flashes ⇒ Λ ⇒ CHANGE ALUE ⇒ V ⇒ CHANGE ALUE ⇒ II ⇒next character flashes ⇒ Λ ⇒ CHANGE ALUE ⇒ V ⇒ CHANGE ALUE after input of all characters: ⇒ I ⇒S thermoMETER LS...
  • Page 34: Data Logger Recall

    P -1⇐ V ⇐P xx⇒ Λ ⇒P +1 TObj Material and location name ⇑ ⇓ ⇑ TObj Emissivity ⇑ ⇑ ⇓ Trigger+ Λ Λ ⇓ ⇓ MAX/ TObj TObj/ MAX/ MIN/ AVG/ DIF TExt [probe temperature] 3+ 4 thermoMETER LS...
  • Page 35 Data Logger To leave the data logger mode please press again the Trigger+ V simultaneously. If no button is pressed, the unit switches off after approx. 30 s. thermoMETER LS...
  • Page 36: Thermocouple Probe

    Thermocouple Probe Thermocouple Probe The LS has an input for thermocouple probes. You will find the connection at the end of the handle [► User Interface]. You can connect the supplied insertion probe as well as any other t/c probe type To show the t/c temperature in the display, proceed as follows: Trigger+ Λ...
  • Page 37: Software Ir-Connect

    CD-ROM. Follow the instructions of the wizard until the installation is finished. The installation wizard will place a launch icon on the desktop and in the start menu: [Start]\Programs\Optris GmbH\IR-Connect. If you want to uninstall the software from your system please use the uninstall icon in the start menu. thermoMETER LS...
  • Page 38: Connection To The Computer

    The connection cable supplied is not a standard USB cable! As long as the LS is connected to your computer it will be powered via the USB interface. In this case operation is also possible if no batteries are inside the unit. At digital communication the unit display shows the HOLD –mode but the unit is measuring continuously and is sending temperature data via...
  • Page 39 Software IR-Connect If you cannot establish a communication in spite of correct connection between LS and computer please choose the correct COM port under Menu: Setup\ Interface. If the USB adapter cable is connected this port is marked [Infrared Thermometer Adapter]: Language: You can select the desired language under Menu: Setup\ Language.
  • Page 40: Data Logger Functions

    Software IR-Connect Data Logger Functions To download the logger data from the unit please press the Logger -button [Menu: Measurement\ Download logger data]. All data from the logger will be displayed in an extra window as a table: thermoMETER LS...
  • Page 41 Logger temperatures, on which the set High-Alarm value has been exceeded, will be shown in the table red and bold. Logger temperatures, on which the set Low-Alarm value has been fallen below, will be shown in the table blue and bold. thermoMETER LS...
  • Page 42 Clear Logger... After confirmation of the security query all logger data inside the LS will be deleted [unit display shows: CLR]. The status line inside the data logger window (beneath the table) shows the location and file name of the current data.
  • Page 43: Time Stamp

    Software IR-Connect Time Stamp If you store data inside your LS for the first time (after insertion of the batteries), an internal timer will be started automatically. When connected to a computer the timer will be synchronized with the computer time. Thus, every logger entry is stored with date and time of the measurement.
  • Page 44: Material- And Location Names

    If a wrong input is made (no character/ more than 4 characters/ invalid character) the position number in the table appears red and the table cannot be closed with OK. saves the changed table inside the LS Standard loads the standard table (factory default) in the connected unit...
  • Page 45: Digital Displays

    Software IR-Connect Digital Displays If the LS is connected to your computer and you start the software, the current temperature TObj will be shown as digital display (top right). You can add additional displays for the internal temperature TInt and the temperature of a connected t/c probe TExt [Menu: View\ Digital displays].
  • Page 46: Diagram Functions

    7.7.1 Starting the Measurement To start a measurement, please press the Start button in the tool bar [Menu: Measurement\ Start]. Control elements of the time axis: Scroll bar Zoom in (increase) Zoom out (decrease) Whole range H: Hold/ C: Continue thermoMETER LS...
  • Page 47: Scaling Of The Temperature Axis

    After the respective Zoom out (decrease) peak has left the diagram in the further process Whole range of the measurement, the range will be readapted. This option enables an optimum display of the temperature graph. thermoMETER LS...
  • Page 48: Stop Measurement

    Control elements (temperature axis) or [Menu: Diagram]. 7.7.3 Stop Measurement To stop the current measurement please press the Stop button [Menu: Measurement\ Stop]. The Save button [Menu: File\ Save as] opens an explorer window to select destination and file name [file type: *.dat]. thermoMETER LS...
  • Page 49: Saving Of Data

    If none of both options is activated, a new measurement will be started after termination of one measurement and pressing of the Start button. In this case the former data are deleted! thermoMETER LS...
  • Page 50: Opening Of Files

    [TObj, TInt, TExt] Pen Width Pen width of the temperature graphs [1...5] Color Color of the temperature graph and digital displays Initial time Time frame on the x-axis, which should be displayed at the beginning of a measurement thermoMETER LS...
  • Page 51: Measurement Configuration

    Max data count and Recording interval A change of the parameter Max data count will have influence on the Memory and Recording time. A change of the parameter Recording interval will have influence on the Recording time only. thermoMETER LS...
  • Page 52: Device Setup

    Flip mode The first activation of Ext. Ambient Temp. will initiate this feature inside the LS unit. From this time the feature will appear in the Setup Menu 2 on the unit, also if deactivated again in the device setup [►...
  • Page 53: Device Information

    Device type Description from the manufacturer Firmware Rev. Revision number of the internal software Hardware Rev. Revision number of the internal hardware Serial No. Serial number of the unit IR Temperature range Measurement range (IR) thermoMETER LS...
  • Page 54: Specification

    ± 0.75 °C or ± 0.75 % of reading (whichever is greater) Response time: 150 ms (95 % signal) LCD Flip Display with backlight (horizontal and vertical viewing Display: directions controlled by position sensor) Display backlight: Green and alarm colours (red / blue) Bar graph display: Auto scalling thermoMETER LS...
  • Page 55 (operating with laser and no backlight) (operating without laser and backlight) Ambient temperature: 0 – 50 °C Storage temperature: -30 … 65 °C (without batteries) Relative humidity: 10 – 95 %, non condensing EMI: 89/336/EWG Weight: 420 g thermoMETER LS...
  • Page 56: Factory Default Settings

    Emissivity: 0.950 Lock: Optics: Buzzer: High alarm: 900 °C/ deactivated Laser: Low alarm: -35 °C/ deactivated Display backlight: Temperature unit: °C Display turn: Auto The Reset function will set the unit back to these default values (exception: optics). thermoMETER LS...
  • Page 57: Troubleshooting

    Choose target within Measurement range Measuring range Battery symbol is on or Low batteries Check/ replace batteries flashing Blank display Empty batteries Check/ replace batteries immediately Laser does not work Low batteries/ See above Laser deactivated Activate the laser thermoMETER LS...
  • Page 58: Maintenance

    In case of problems or questions, which may arise when you use the optris ® LS, please contact our service department. The customer service staff will support you with questions concerning the optimization of the work with the infrared thermometer, calibration procedures or with repairs.
  • Page 59: Principle Of Operation

    Consequently, these products help to measure the temperature of inaccessible or moving objects without difficulties. Infrared thermometers basically consist of the following components: • lens • spectral filter • detector • electronics (amplifier/ linearization/ signal processing) thermoMETER LS...
  • Page 60: Emissivity

    A low emissivity (reflective surfaces) carries the risk of inaccurate measuring results by interfering infrared radiation emitted by background objects (flames, heating systems, chamottes). To minimize measuring errors in such cases, the handling should be performed very carefully and the unit should be protected against reflecting radiation sources. thermoMETER LS...
  • Page 61: Determination Of Unknown Emissivity's

    Adjust the emissivity of your infrared thermometer to 0,98 and take the temperature of the colored surface. Afterwards, determine the temperature of a directly adjacent area and modify the emissivity until the measured value corresponds to the temperature of the colored surface. thermoMETER LS...
  • Page 62: Characteristic Emissivities

    • temperature • measuring angle • geometry of the surface • thickness of the material • constitution of the surface (polished, oxidized, rough, sandblast) • spectral range of the measurement • transmissivity (e.g. with thin films) thermoMETER LS...
  • Page 63: Appendix A - Emissivity Table Metals

    0.5 – 0.7 Titanium Polished 0.05 – 0.2 Oxidized 0.5 – 0.9 Oxidized 0.5 – 0.6 Forged, blunt Wolfram Polished 0.03 – 0.1 Iron, casted Non oxidized Zinc Polished 0.02 Oxidized 0.6 – 0.95 Oxidized Lead Polished 0.05 – 0.1 thermoMETER LS...
  • Page 64: Appendix B - Emissivity Table Non Metals

    0.95 Graphite 0.7 – 0.8 Rubber 0.95 Carborundum Sand Ceramic 0.95 Snow Concrete 0.95 Soil 0.9 – 0.98 Glass 0.85 Textiles 0.95 Grit 0.95 Water 0.93 Gypsum 0.8 – 0.95 Wood Natural 0.9 – 0.95 0.98 Limestone 0.98 thermoMETER LS...
