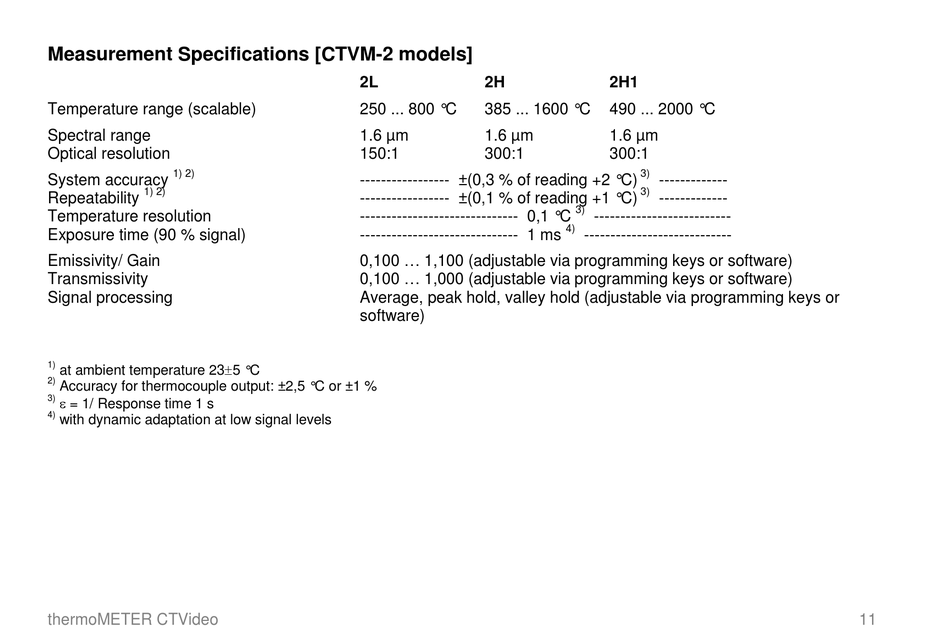

Measurement Specifications [CTVM-2 models]

Temperature range (scalable)
Spectral range
Optical resolution
1) 2)
System accuracy
1) 2)
Repeatability
Temperature resolution
Exposure time (90 % signal)
Emissivity/ Gain
Transmissivity
Signal processing
1)
at ambient temperature 235 °C
2)
Accuracy for thermocouple output: ±2,5 °C or ±1 %
 = 1/ Response time 1 s
3)
4)
with dynamic adaptation at low signal levels
thermoMETER CTVideo
2L 2H
250 ... 800 °C 385 ... 1600 °C
1.6 µm 1.6 µm
150:1 300:1
----------------- ±(0,3 % of reading +2 °C)
----------------- ±(0,1 % of reading +1 °C)
------------------------------ 0,1 °C
------------------------------ 1 ms
0,100 ... 1,100 (adjustable via programming keys or software)
0,100 ... 1,000 (adjustable via programming keys or software)
Average, peak hold, valley hold (adjustable via programming keys or
software)
2H1
490 ... 2000 °C
1.6 µm
300:1
3)
-------------
3)
-------------
3)
--------------------------
4)
----------------------------
11
