LCD after Switching on the Instrument

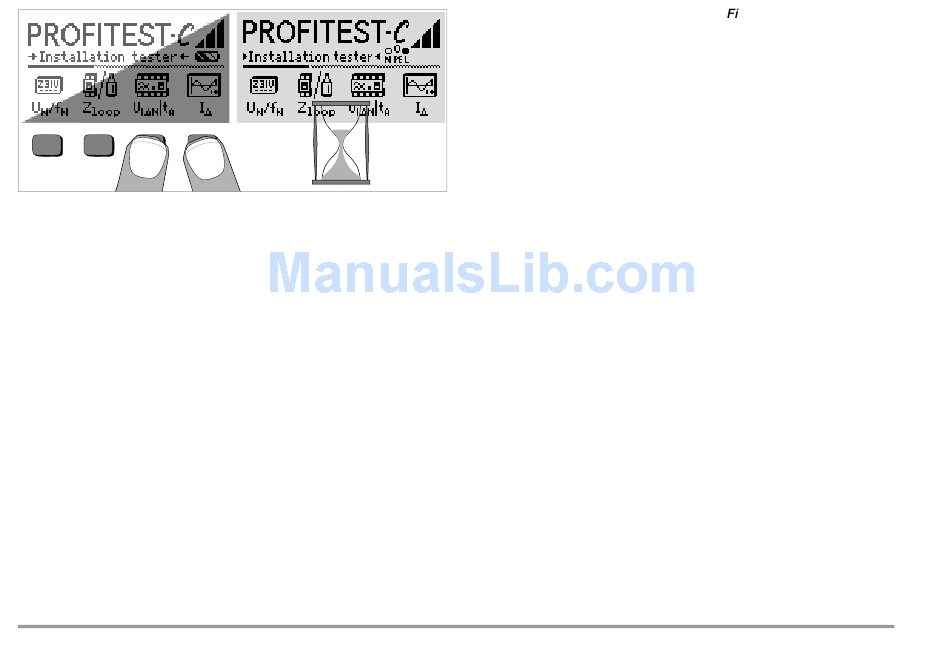

Please proceed as follows if the LCD display is not legible, i.e. too bright
or too dark, after switching on the test instrument:
1 Simultaneously press the two right-hand keys to delete the memory
which might be faulty.
2 Wait a few seconds to allow the display to be updated.
3 Readjust the contrast if necessary, see page 9.
Instructions for the Plug-on of the Accessory Adapter
• Interface converter IrDa-USB (Z501J)
➭
Connect the adapter with the IR interface of the test instrument, see
drawing on page 2: Insert the guide rail of the adapter in the opening
provided on top of the tester so that the adapter is located in the mid-
dle of the housing, resting on the two rubber cushions. Then push the
adapter down to ensure that it is safely fastened.
4
PC software WinProfi for communication with PRO TEST
The free PC starter software WinProfi* is used for communication with
®
your PROFiTEST C test instrument. WinProfi is available on our homepage
with the following content and functions:
• up-to-date test instrument software
– for loading another language
– for loading software version updates,
• Exchange of measured data between test instrument and PC
The following interface adapter is required for communication between
test instrument and PC:
– IrDa-USB Converter (Z501J): IrDa (tester) – USB (PC)
Up-to-date PC software (free of charge starter or demo software for data
management, report and list generation) is available from our homepage
for download.
* WinProfi can be used currently up to Windows 7 (32 bit)
Data Backup
Measurement data and electrical circuit assignments can be safely stored
in a RAM as long as the associated battery supplies the required voltage.
We advise you to regularly transmit your stored data to a PC in order to
prevent potential loss of data in the test instrument. We assume no
responsibility for any data loss.
For data processing and management we recommend the following PC
software programs:
™/ ™
• PC.doc-WORD EXCEL (report and list generation)
™
• PC.doc-ACCESS (test data management)
• ELEKTROmanager/PROTOKOLLmanager for PROFiTEST
®
C
®
...
