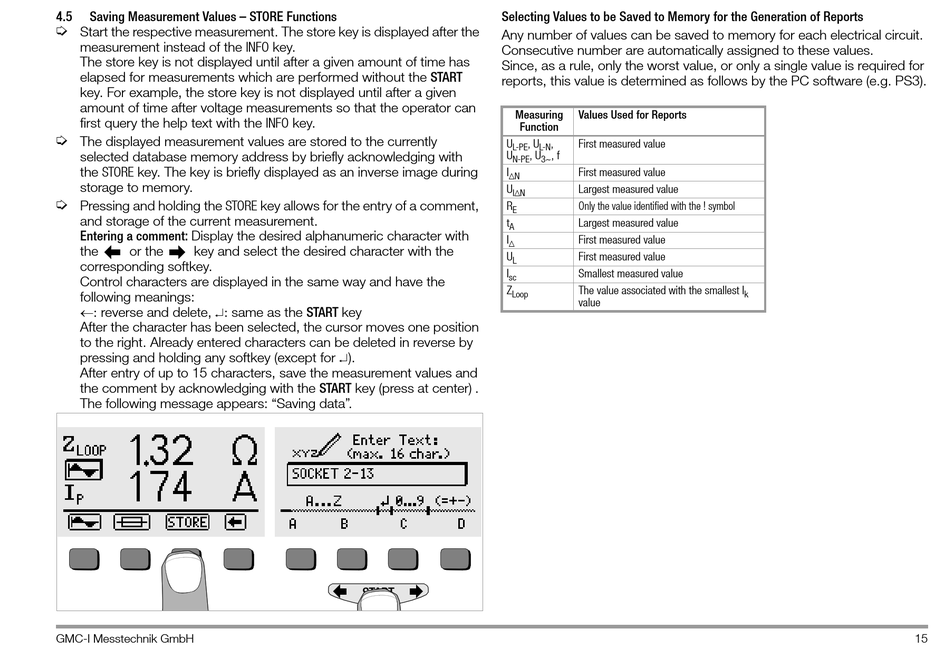

4.5 Saving Measurement Values – STORE Functions
➭
Start the respective measurement. The store key is displayed after the
measurement instead of the INFO key.
The store key is not displayed until after a given amount of time has
elapsed for measurements which are performed without the START
key. For example, the store key is not displayed until after a given
amount of time after voltage measurements so that the operator can
first query the help text with the INFO key.
➭
The displayed measurement values are stored to the currently
selected database memory address by briefly acknowledging with
the STORE key. The key is briefly displayed as an inverse image during
storage to memory.
➭
Pressing and holding the STORE key allows for the entry of a comment,
and storage of the current measurement.
Entering a comment: Display the desired alphanumeric character with
the or the key and select the desired character with the
corresponding softkey.
Control characters are displayed in the same way and have the
following meanings:
 reverse and delete,  same as the START key
After the character has been selected, the cursor moves one position
to the right. Already entered characters can be deleted in reverse by
pressing and holding any softkey (except for ).
After entry of up to 15 characters, save the measurement values and
the comment by acknowledging with the START key (press at center) .
The following message appears: "Saving data".
GMC-I Messtechnik GmbH
Selecting Values to be Saved to Memory for the Generation of Reports
Any number of values can be saved to memory for each electrical circuit.
Consecutive number are automatically assigned to these values.
Since, as a rule, only the worst value, or only a single value is required for
reports, this value is determined as follows by the PC software (e.g. PS3).
Measuring
Function
U , U
L-PE L-N
U , U
N-PE
I
N
U
IN
R
E
t
A
I

U
L
I
sc
Z
Loop
START
Values Used for Reports
, First measured value
, f
3~
First measured value
Largest measured value
Only the value identified with the ! symbol
Largest measured value
First measured value
First measured value
Smallest measured value
The value associated with the smallest I
value
k
