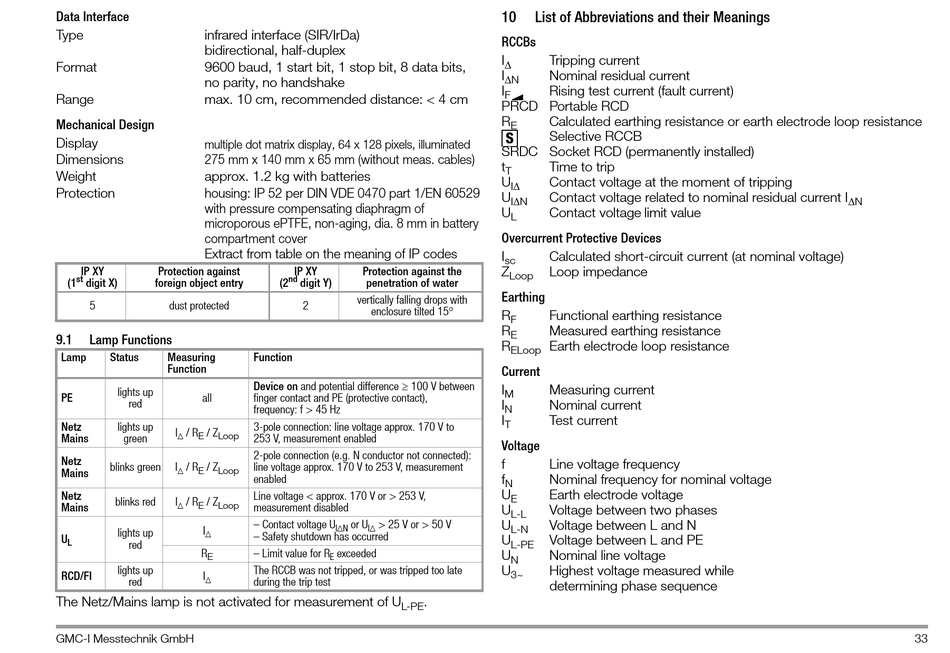

Data Interface
Type
infrared interface (SIR/IrDa)
bidirectional, half-duplex
Format
9600 baud, 1 start bit, 1 stop bit, 8 data bits,
no parity, no handshake
Range
max. 10 cm, recommended distance: < 4 cm
Mechanical Design
Display
multiple dot matrix display, 64 x 128 pixels, illuminated
Dimensions
275 mm x 140 mm x 65 mm (without meas. cables)
Weight
approx. 1.2 kg with batteries
Protection
housing: IP 52 per DIN VDE 0470 part 1/EN 60529
with pressure compensating diaphragm of
microporous ePTFE, non-aging, dia. 8 mm in battery
compartment cover
Extract from table on the meaning of IP codes
IP XY
Protection against
st
(1
digit X)
foreign object entry
5
dust protected
9.1
Lamp Functions
Lamp
Status
Measuring
Function
lights up
PE
all
red
Netz
lights up
I
/ R
/ Z
E
Loop
Mains
green
Netz
blinks green
I
/ R
/ Z
E
Loop
Mains
Netz
blinks red
I
/ R
/ Z
E
Loop
Mains
I
lights up
U
L
red
R
E
lights up
RCD/FI
I
red
The Netz/Mains lamp is not activated for measurement of U
GMC-I Messtechnik GmbH
IP XY
Protection against the
nd
(2
digit Y)
penetration of water
vertically falling drops with
2
enclosure tilted 15
Function
Device on and potential difference 100 V between
finger contact and PE (protective contact),
frequency: f > 45 Hz
3-pole connection: line voltage approx. 170 V to
253 V, measurement enabled
2-pole connection (e.g. N conductor not connected):
line voltage approx. 170 V to 253 V, measurement
enabled
Line voltage < approx. 170 V or > 253 V,
measurement disabled
– Contact voltage U
or U
> 25 V or > 50 V
IN
I
– Safety shutdown has occurred
– Limit value for R
exceeded
E
The RCCB was not tripped, or was tripped too late
during the trip test
.
L-PE
10
List of Abbreviations and their Meanings
RCCBs
I
Tripping current
I
Nominal residual current
N
I
Rising test current (fault current)
F
PRCD Portable RCD
R
Calculated earthing resistance or earth electrode loop resistance
E
Selective RCCB
S
SRDC Socket RCD (permanently installed)
t
Time to trip
T
U
Contact voltage at the moment of tripping
I
U
Contact voltage related to nominal residual current I
IN
U
Contact voltage limit value
L
Overcurrent Protective Devices
I
Calculated short-circuit current (at nominal voltage)
sc
Z
Loop impedance
Loop
Earthing
R
Functional earthing resistance
F
R
Measured earthing resistance
E
R
Earth electrode loop resistance
ELoop
Current
I
Measuring current
M
I
Nominal current
N
I
Test current
T
Voltage
f
Line voltage frequency
f
Nominal frequency for nominal voltage
N
U
Earth electrode voltage
E
U
Voltage between two phases
L-L
U
Voltage between L and N
L-N
U
Voltage between L and PE
L-PE
U
Nominal line voltage
N
U
Highest voltage measured while
3~
determining phase sequence
N
33
