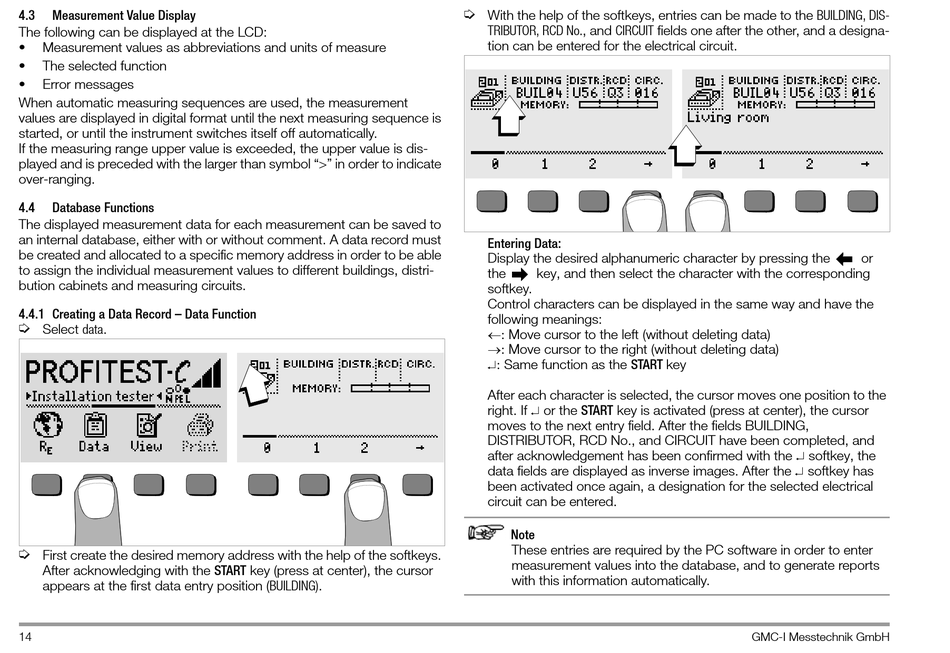

4.3

Measurement Value Display

The following can be displayed at the LCD:
• Measurement values as abbreviations and units of measure
• The selected function
• Error messages
When automatic measuring sequences are used, the measurement
values are displayed in digital format until the next measuring sequence is
started, or until the instrument switches itself off automatically.
If the measuring range upper value is exceeded, the upper value is dis-
played and is preceded with the larger than symbol ">" in order to indicate
over-ranging.
4.4

Database Functions

The displayed measurement data for each measurement can be saved to
an internal database, either with or without comment. A data record must
be created and allocated to a specific memory address in order to be able
to assign the individual measurement values to different buildings, distri-
bution cabinets and measuring circuits.
4.4.1 Creating a Data Record – Data Function
➭
Select data.
➭
First create the desired memory address with the help of the softkeys.
After acknowledging with the START key (press at center), the cursor
appears at the first data entry position (BUILDING).
14
➭
With the help of the softkeys, entries can be made to the BUILDING, DIS-
TRIBUTOR, RCD No., and CIRCUIT fields one after the other, and a designa-
tion can be entered for the electrical circuit.
Entering Data:
Display the desired alphanumeric character by pressing the
the key, and then select the character with the corresponding
softkey.
Control characters can be displayed in the same way and have the
following meanings:
 Move cursor to the left (without deleting data)
 Move cursor to the right (without deleting data)
 Same function as the START key
After each character is selected, the cursor moves one position to the
right. If  or the START key is activated (press at center), the cursor
moves to the next entry field. After the fields BUILDING,
DISTRIBUTOR, RCD No., and CIRCUIT have been completed, and
after acknowledgement has been confirmed with the  softkey, the
data fields are displayed as inverse images. After the  softkey has
been activated once again, a designation for the selected electrical
circuit can be entered.
Note
These entries are required by the PC software in order to enter
measurement values into the database, and to generate reports
with this information automatically.
or
