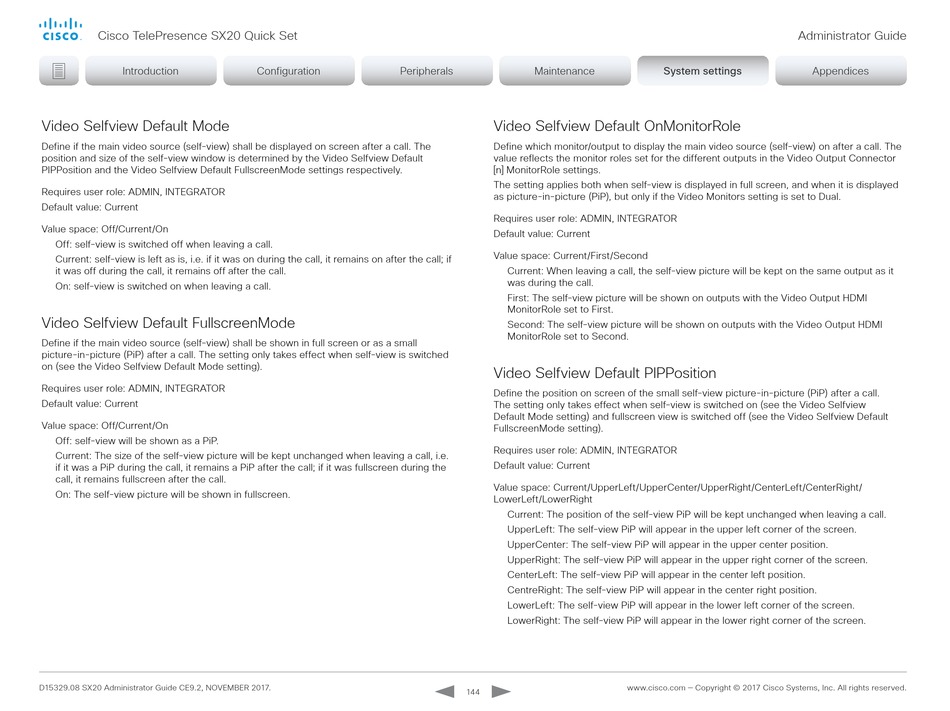

Video Selfview Default Mode

Define if the main video source (self-view) shall be displayed on screen after a call. The
position and size of the self-view window is determined by the Video Selfview Default
PIPPosition and the Video Selfview Default FullscreenMode settings respectively.
Requires user role: ADMIN, INTEGRATOR
Default value: Current
Value space: Off/Current/On
Off: self-view is switched off when leaving a call.
Current: self-view is left as is, i.e. if it was on during the call, it remains on after the call; if
it was off during the call, it remains off after the call.
On: self-view is switched on when leaving a call.

Video Selfview Default FullscreenMode

Define if the main video source (self-view) shall be shown in full screen or as a small
picture-in-picture (PiP) after a call. The setting only takes effect when self-view is switched
on (see the Video Selfview Default Mode setting).
Requires user role: ADMIN, INTEGRATOR
Default value: Current
Value space: Off/Current/On
Off: self-view will be shown as a PiP.
Current: The size of the self-view picture will be kept unchanged when leaving a call, i.e.
if it was a PiP during the call, it remains a PiP after the call; if it was fullscreen during the
call, it remains fullscreen after the call.
On: The self-view picture will be shown in fullscreen.
D15329.08 SX20 Administrator Guide CE9.2, NOVEMBER 2017.
Configuration Peripherals Maintenance

Video Selfview Default OnMonitorRole

Define which monitor/output to display the main video source (self-view) on after a call. The
value reflects the monitor roles set for the different outputs in the Video Output Connector
[n] MonitorRole settings.
The setting applies both when self-view is displayed in full screen, and when it is displayed
as picture-in-picture (PiP), but only if the Video Monitors setting is set to Dual.
Requires user role: ADMIN, INTEGRATOR
Default value: Current
Value space: Current/First/Second
Current: When leaving a call, the self-view picture will be kept on the same output as it
was during the call.
First: The self-view picture will be shown on outputs with the Video Output HDMI
MonitorRole set to First.
Second: The self-view picture will be shown on outputs with the Video Output HDMI
MonitorRole set to Second.

Video Selfview Default PIPPosition

Define the position on screen of the small self-view picture-in-picture (PiP) after a call.
The setting only takes effect when self-view is switched on (see the Video Selfview
Default Mode setting) and fullscreen view is switched off (see the Video Selfview Default
FullscreenMode setting).
Requires user role: ADMIN, INTEGRATOR
Default value: Current
Value space: Current/UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/
LowerLeft/LowerRight
Current: The position of the self-view PiP will be kept unchanged when leaving a call.
UpperLeft: The self-view PiP will appear in the upper left corner of the screen.
UpperCenter: The self-view PiP will appear in the upper center position.
UpperRight: The self-view PiP will appear in the upper right corner of the screen.
CenterLeft: The self-view PiP will appear in the center left position.
CentreRight: The self-view PiP will appear in the center right position.
LowerLeft: The self-view PiP will appear in the lower left corner of the screen.
LowerRight: The self-view PiP will appear in the lower right corner of the screen.
