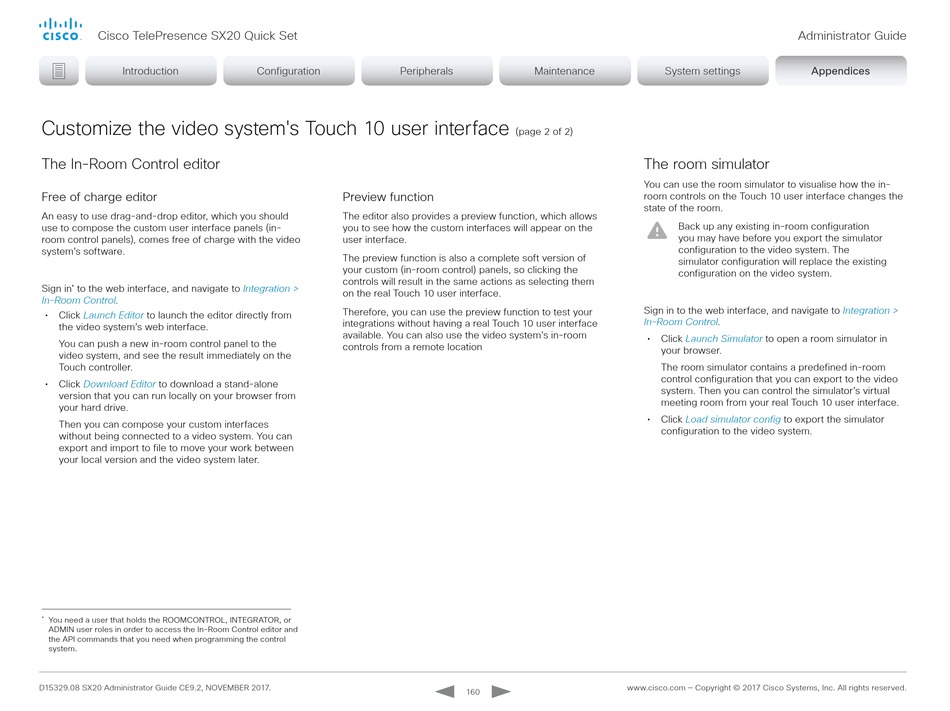

Cisco TelePresence SX20 Quick Set Administrator's Manual page 160

Cisco TelePresence SX20 Quick Set

Introduction
Customize the video system's Touch 10 user interface
The In-Room Control editor
Free of charge editor
An easy to use drag-and-drop editor, which you should
use to compose the custom user interface panels (in-
room control panels), comes free of charge with the video
system's software.
Sign in to the web interface, and navigate to
*
In-Room Control.
• Click Launch Editor to launch the editor directly from
the video system's web interface.
You can push a new in-room control panel to the
video system, and see the result immediately on the
Touch controller.
• Click Download Editor to download a stand-alone
version that you can run locally on your browser from
your hard drive.
Then you can compose your custom interfaces
without being connected to a video system. You can
export and import to file to move your work between
your local version and the video system later.
* You need a user that holds the ROOMCONTROL, INTEGRATOR, or
ADMIN user roles in order to access the In-Room Control editor and
the API commands that you need when programming the control
system.
D15329.08 SX20 Administrator Guide CE9.2, NOVEMBER 2017.
Configuration Peripherals
Preview function
The editor also provides a preview function, which allows
you to see how the custom interfaces will appear on the
user interface.
The preview function is also a complete soft version of
your custom (in-room control) panels, so clicking the
controls will result in the same actions as selecting them
Integration >
on the real Touch 10 user interface.
Therefore, you can use the preview function to test your
integrations without having a real Touch 10 user interface
available. You can also use the video system's in-room
controls from a remote location
Maintenance
(page 2 of 2)
The room simulator
You can use the room simulator to visualise how the in-
room controls on the Touch 10 user interface changes the
state of the room.
Sign in to the web interface, and navigate to
In-Room
www.cisco.com — Copyright © 2017 Cisco Systems, Inc. All rights reserved.
160
Administrator Guide
System settings Appendices Appendices
Back up any existing in-room configuration
you may have before you export the simulator
configuration to the video system. The
simulator configuration will replace the existing
configuration on the video system.
Control.
• Click Launch Simulator to open a room simulator in
your browser.
The room simulator contains a predefined in-room
control configuration that you can export to the video
system. Then you can control the simulator's virtual
meeting room from your real Touch 10 user interface.
• Click Load simulator config to export the simulator
configuration to the video system.
Integration >
