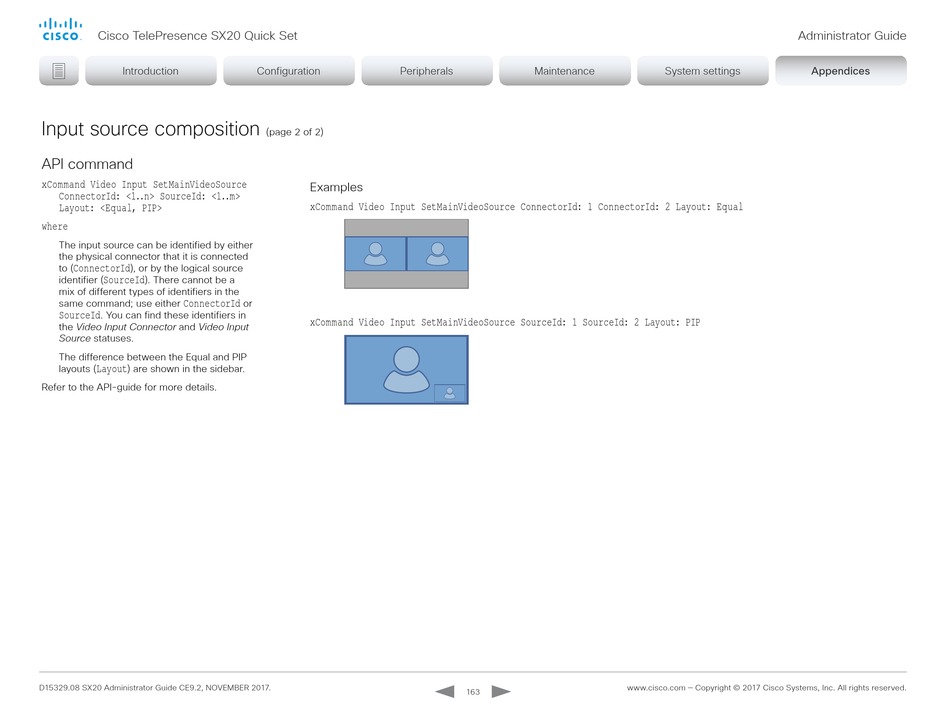

Input source composition
API command
xCommand Video Input SetMainVideoSource
ConnectorId: <1..n> SourceId: <1..m>
Layout: <Equal, PIP>
where
The input source can be identified by either
the physical connector that it is connected
to ( ), or by the logical source
ConnectorId
identifier ( ). There cannot be a
SourceId
mix of different types of identifiers in the
same command; use either
ConnectorId
. You can find these identifiers in
SourceId
the Video Input Connector and Video Input
Source statuses.
The difference between the Equal and PIP
layouts ( ) are shown in the sidebar.
Layout
Refer to the API-guide for more details.
D15329.08 SX20 Administrator Guide CE9.2, NOVEMBER 2017.
Configuration Peripherals
(page 2 of 2)
Examples
xCommand Video Input SetMainVideoSource ConnectorId: 1 ConnectorId: 2 Layout: Equal
or
xCommand Video Input SetMainVideoSource SourceId: 1 SourceId: 2 Layout: PIP
