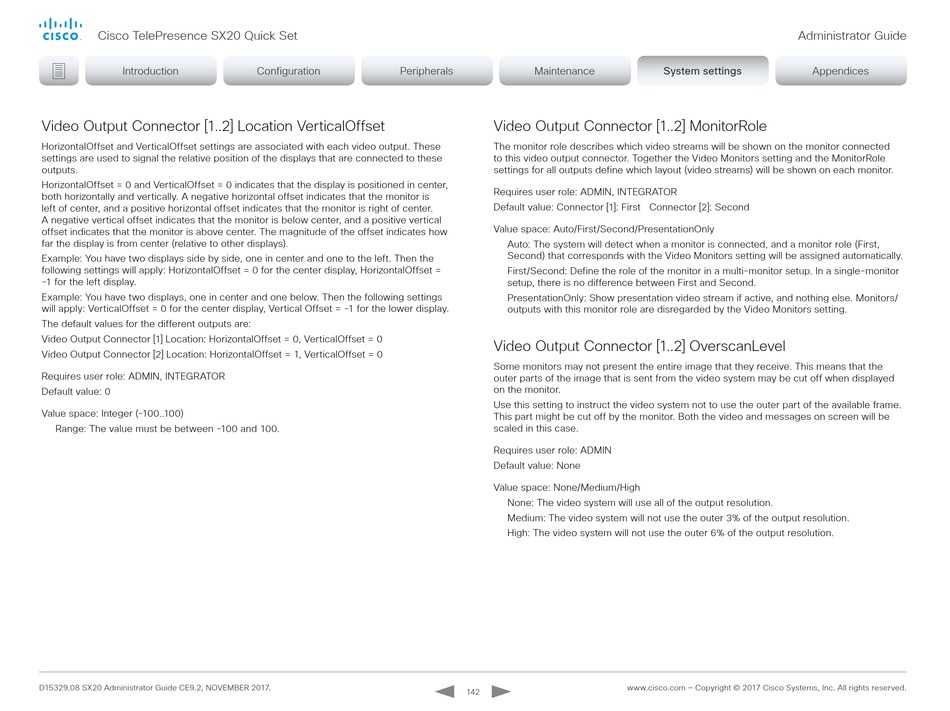

Video Output Connector [1..2] Location VerticalOffset

HorizontalOffset and VerticalOffset settings are associated with each video output. These
settings are used to signal the relative position of the displays that are connected to these
outputs.
HorizontalOffset = 0 and VerticalOffset = 0 indicates that the display is positioned in center,
both horizontally and vertically. A negative horizontal offset indicates that the monitor is
left of center, and a positive horizontal offset indicates that the monitor is right of center.
A negative vertical offset indicates that the monitor is below center, and a positive vertical
offset indicates that the monitor is above center. The magnitude of the offset indicates how
far the display is from center (relative to other displays).
Example: You have two displays side by side, one in center and one to the left. Then the
following settings will apply: HorizontalOffset = 0 for the center display, HorizontalOffset =
-1 for the left display.
Example: You have two displays, one in center and one below. Then the following settings
will apply: VerticalOffset = 0 for the center display, Vertical Offset = -1 for the lower display.
The default values for the different outputs are:
Video Output Connector [1] Location: HorizontalOffset = 0, VerticalOffset = 0
Video Output Connector [2] Location: HorizontalOffset = 1, VerticalOffset = 0
Requires user role: ADMIN, INTEGRATOR
Default value: 0
Value space: Integer (-100..100)
Range: The value must be between -100 and 100.
D15329.08 SX20 Administrator Guide CE9.2, NOVEMBER 2017.
Configuration Peripherals Maintenance
Video Output Connector [1..2] MonitorRole
The monitor role describes which video streams will be shown on the monitor connected
to this video output connector. Together the Video Monitors setting and the MonitorRole
settings for all outputs define which layout (video streams) will be shown on each monitor.
Requires user role: ADMIN, INTEGRATOR
Default value: Connector [1]: First Connector [2]: Second
Value space: Auto/First/Second/PresentationOnly
Auto: The system will detect when a monitor is connected, and a monitor role (First,
Second) that corresponds with the Video Monitors setting will be assigned automatically.
First/Second: Define the role of the monitor in a multi-monitor setup. In a single-monitor
setup, there is no difference between First and Second.
PresentationOnly: Show presentation video stream if active, and nothing else. Monitors/
outputs with this monitor role are disregarded by the Video Monitors setting.
Video Output Connector [1..2] OverscanLevel
Some monitors may not present the entire image that they receive. This means that the
outer parts of the image that is sent from the video system may be cut off when displayed
on the monitor.
Use this setting to instruct the video system not to use the outer part of the available frame.
This part might be cut off by the monitor. Both the video and messages on screen will be
scaled in this case.
Requires user role: ADMIN
Default value: None
Value space: None/Medium/High
None: The video system will use all of the output resolution.
Medium: The video system will not use the outer 3% of the output resolution.
High: The video system will not use the outer 6% of the output resolution.
