Page 5: Product Overview
1. Product Overview Here is what you can find in this section: 1.1 Components and Associated Products 1.2 Terms and Symbols 2N TELEKOMUNIKACE a.s., www.2n.cz 5/272...
Page 6: Basic Features

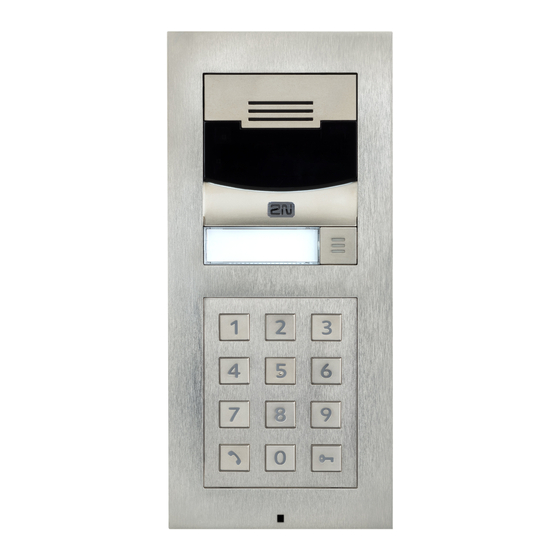

Basic Features ® Helios IP Verso is an elegant and reliable intercom equipped with lots of useful functions. Thanks to SIP support and compatibility with major brands of PBX ® manufacturers, it can benefit from using VoIP networks. Helios IP Verso...
Page 7 ® The installation of Helios IP Verso is very easy, all you have to do is assemble the required arts and modules and attach the network cable. The modules are plug&play, so there is no need to configure them manually. The intercom can be supplied from a 12 V DC power source, or using a PoE switch.
Page 8: Advantages Of Use
HTTP server for configuration SNTP client for time synchronisation RTSP server for audio and video streaming, ONVIF compatible SMTP client for email sending, Picture to Email feature TFTP/HTTP client for automated firmware and configuration upgrade and update 2N TELEKOMUNIKACE a.s., www.2n.cz 8/272...
Page 9: Components And Associated Products
There must be just one (with/without a camera) main unit in every installation. The main unit installation requires two frame/box positions; the other position, however, is left for additional module installation. One blind module is supplied with the main unit. 2N TELEKOMUNIKACE a.s., www.2n.cz 9/272...
Page 10 Frames Part No. 9155011 Flush mounting frame, 1 module Part No. 9155012 Flush mounting frame, 2 modules Part No. 9155013 Flush mounting frame, 3 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 10/272...
Page 11 Part No. 9155021 Surface mounting frame, 1 module Part No. 9155022 Surface mounting box, 2 modules Part No. 9155023 Surface mounting box, 3 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 11/272...
Page 12 ) – 1-module flush mounting box (Part No. 9155014 2-module frame (Part No. 9155012 ) – 2-module flush mounting box (Part No. 9155015 3-module frame (Part No. 9155013 ) – 3-module flush mounting box (Part No. 9155016 2N TELEKOMUNIKACE a.s., www.2n.cz 12/272...
Page 13: Extending Modules
Extending Modules Part No. 9155030 ® Helios IP Verso Infopanel The Infopanel module helps you place such information into the intercom installation as house number, opening hours and similar data. The Infopanel backlight is software controlled. Part No. 9155031 ®...
Page 14 Part No. 9155034 ® Helios IP Verso – I/O module The module provides logical inputs and outputs for sensor integration or door control. The module is installed under another module, i.e. needs no separate position. Part No. 9155035 ® Helios IP Verso –...
Page 15 Part No. 9155038 ® Helios IP Verso – Tamper Switch The module secures your system against tampering by detecting intercom opening or top frame removing. The module is installed on a special place and needs no separate position. Part No. 9155039 Blind module (One blind module is supplied with the main unit.)
Page 16 The induction loop module is used to transmit an audio signal directly into a hearing aid via a magnetic field. Part No. 9155042 ® Helios IP Verso – secured RFID Card Reader, 13 MHz, NFC ready Compatible with firmware 2.13 and higher.
Page 17 Part No. 9155054 3 m Extension cable Only one extension cable allowed. Maximum bus length is 7 m. Part No. 9155055 5 m Extension cable Only one extension cable allowed. Maximum bus length is 7 m. 2N TELEKOMUNIKACE a.s., www.2n.cz 17/272...
Page 18: Mounting Accessories
Designed for flush or plasterboard mounting of 2-module sets and delivered including accessories for multiple box assemblies Part No. 9155016 Flush mounting box 3 modules Designed for flush or plasterboard mounting of 3-module sets and delivered including accessories for multiple box assemblies 2N TELEKOMUNIKACE a.s., www.2n.cz 18/272...
Page 19 For glass or not flat surface installation Part No. 9155063 Backplate 3 modules For glass or not flat surface installation Part No 9155064 Backplate 2 (w) x 2 (h) modules For glass or not flat surface installation 2N TELEKOMUNIKACE a.s., www.2n.cz 19/272...
Page 20 For glass or not flat surface installation Choose the proper frame and, if necessary, mounting box type depending on your ® ® particular Helios IP Verso installation needs. Helios IP Verso is designed for outdoor applications and requires no additional roof.
Page 21: Internal Units
On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall. 2N TELEKOMUNIKACE a.s., www.2n.cz 21/272...
Page 22: Voip Phones
IP network. Touchscreen and keyboard control. Part No. 91378358 Grandstream GXV3275 VoIP telephone GXV3275 is the successor to the popular GXV3175 model, which allows comfortable video calls in the IP network. Touchscreen control. 2N TELEKOMUNIKACE a.s., www.2n.cz 22/272...
Page 23: Electric Locks
BEFO 11211MB with mechanical blocking 12 V / 230 mA DC low consumption Enables mechanically close or open the lock. When opened, the lock is open all the time. When closed, it behaves as standart electrical lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 23/272...
Page 24 A regular lock with a built-in contact to indicate whether the door is open or closed. Part No. 932072E 31211 fail-safe 12 V / 170 mA DC The failsafe lock is closed when electricity is switched on. When electricity is interrupted, the lock is opened. 2N TELEKOMUNIKACE a.s., www.2n.cz 24/272...
Page 25 The failsafe lock is closed when electricity is switched on. When electricity is interrupted, the lock is opened. It contains a built-in contact to indicate whether the door is open or closed. FAQ: Electric locks – Difference between locks in 2N Helios IP accesories 2N TELEKOMUNIKACE a.s., www.2n.cz 25/272...
Page 26: Power Supply
Part No. 91341481E Stabilised 12 V / 2 A power supply needs to be used when no PoE is available. Part No. 932928 For external power supply of the lock with 12 V AC voltage. 2N TELEKOMUNIKACE a.s., www.2n.cz 26/272...
Page 27: Two-Wire Connection
(2 wires) from your original door bell or door intercom to connect any IP device. You don’t have to ® configure anything, and you only need one 2N 2Wire unit at each end of the cable and a power source connected to at least one of these units.
Page 28 13.56 MHz and 125 kHz cards using a web ® interface or the Access Commander application. It reads the same types of cards as card readers in 2N Helios IP intercoms. Part No. 9134173 Mifare RFID card, 13.56 MHz 2N TELEKOMUNIKACE a.s., www.2n.cz 28/272...
Page 29 Part No. 9134174 Mifare RFID card, 13.56 MHz 2N TELEKOMUNIKACE a.s., www.2n.cz 29/272...
Page 30: External Switches
Suitable for system management and the addition of ® EM41xx cards via the PC application, Access Commander Part No. 9134165E RFID card, 125 kHz Part No. 9134166E RFID key fob, 125 kHz External switches 2N TELEKOMUNIKACE a.s., www.2n.cz 30/272...
Page 31 Part No. 9137411E External IP Relay – 4 outputs, PoE Standalone IP device which can be controlled by HTTP commands sent by Helios IP intercom, which can thus control devices on unlimited distance. 2N TELEKOMUNIKACE a.s., www.2n.cz 31/272...
Page 32: Induction Loop
It has to be used with Part No. 9155041 . A 40 cm long interconnecting cable is included. Dimensions: 233 (W) x 233 (H) mm FAQ: Induction loop – How to connect it with 2N Helios IP 2N TELEKOMUNIKACE a.s., www.2n.cz 32/272...
Page 33: Sensors And Switches
Part No. 9159012 Magnetic door contact Set for installation on a door, enabling the status of door opening to be ascertained. Used when the intercom is used for door protection, to detect when the door is not 2N TELEKOMUNIKACE a.s., www.2n.cz 33/272...
Page 34: Additional Modules
Wiegand bus. The 2N Helios IP Wiegand Isolator protects the interconnected devices against communication errors and/or damage. For more accessories and particular advice please contact your local distributor of 2N products. 2N TELEKOMUNIKACE a.s., www.2n.cz 34/272...
Page 35: Terms And Symbols
Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/272...
Page 36: Description And Installation
2. Description and Installation Here is what you can find in this section: 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Extending Module Connection 2.5 Completion 2N TELEKOMUNIKACE a.s., www.2n.cz 36/272...
Page 37: Product Completeness Check
Product Completeness Check Before you start please check whether the contents of the package of your new ® Helios IP Verso complies with the following list. ® 1x 2N Helios IP Verso 2N TELEKOMUNIKACE a.s., www.2n.cz 37/272...
Page 38: Mechanical Installation
What you need for mounting: a properly cut hole as instructed in the box package Plaster, mounting glue, mounting foam or mortar as necessary ® Helios IP Verso , flush mounting boxes and frames 1x module: box Part No. 9155014 , frame Part No.
Page 39: Surface Mounting
Surface mounting concrete and steel structures, entry barrier columns, interior, etc. What you need for mounting: ® Helios IP Verso plus the respective frames 1x module: frame Part No. 9155021 2x modules: frame Part No. 9155022 3x modules: frame Part No. 9155023...
Page 40: General Mounting Principles
You are advised to buy the flush mounting boxes in advance and commission your building company to do the masonry for you. This approach helps you put your intercom exactly in the vertical position. 2N TELEKOMUNIKACE a.s., www.2n.cz 40/272...
Page 41 Having removed the front panel, make sure that no dirt gets inside the product (especially onto the sealing surface). ® Never turn Helios IP Verso to align the box assembly after mounting. Make sure that the flush mounting boxes have been installed accurately.
Page 42: Module Installation
2.2.1 One Module Box 2.2.2 Two modules boxes 2.2.3 More Two Modules Boxes 2.2.4 Three Modules Box 2.2.5 More Three Modules Boxes 2.2.6 Tamper and I/O Module 2.2.1 One Module Box Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 42/272...
Page 43 2N TELEKOMUNIKACE a.s., www.2n.cz 43/272...
Page 44 2N TELEKOMUNIKACE a.s., www.2n.cz 44/272...
Page 45: Flush Mounting Box Mounting - Plasterboard
Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 45/272...
Page 46 2N TELEKOMUNIKACE a.s., www.2n.cz 46/272...
Page 47 2N TELEKOMUNIKACE a.s., www.2n.cz 47/272...
Page 48: Flush Module Mounting
Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 48/272...
Page 49 2N TELEKOMUNIKACE a.s., www.2n.cz 49/272...
Page 50 2N TELEKOMUNIKACE a.s., www.2n.cz 50/272...
Page 51 2N TELEKOMUNIKACE a.s., www.2n.cz 51/272...
Page 52 2N TELEKOMUNIKACE a.s., www.2n.cz 52/272...
Page 53: Surface Module Mounting
Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 53/272...
Page 54 2N TELEKOMUNIKACE a.s., www.2n.cz 54/272...
Page 55 2N TELEKOMUNIKACE a.s., www.2n.cz 55/272...
Page 56 2N TELEKOMUNIKACE a.s., www.2n.cz 56/272...
Page 57 2N TELEKOMUNIKACE a.s., www.2n.cz 57/272...
Page 58 2.2.2 Two modules boxes Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 58/272...
Page 59 2N TELEKOMUNIKACE a.s., www.2n.cz 59/272...
Page 60 2N TELEKOMUNIKACE a.s., www.2n.cz 60/272...
Page 61 2N TELEKOMUNIKACE a.s., www.2n.cz 61/272...
Page 62 2N TELEKOMUNIKACE a.s., www.2n.cz 62/272...
Page 63 2N TELEKOMUNIKACE a.s., www.2n.cz 63/272...
Page 64 2N TELEKOMUNIKACE a.s., www.2n.cz 64/272...
Page 65: Flush Mounting Box Mounting - Plasterboard
Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 65/272...
Page 66 2N TELEKOMUNIKACE a.s., www.2n.cz 66/272...
Page 67 2N TELEKOMUNIKACE a.s., www.2n.cz 67/272...
Page 68 2N TELEKOMUNIKACE a.s., www.2n.cz 68/272...
Page 69 2N TELEKOMUNIKACE a.s., www.2n.cz 69/272...
Page 70 2N TELEKOMUNIKACE a.s., www.2n.cz 70/272...
Page 71: Flush Module Mounting
Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 71/272...
Page 72 2N TELEKOMUNIKACE a.s., www.2n.cz 72/272...
Page 73 2N TELEKOMUNIKACE a.s., www.2n.cz 73/272...
Page 74 2N TELEKOMUNIKACE a.s., www.2n.cz 74/272...
Page 75 2N TELEKOMUNIKACE a.s., www.2n.cz 75/272...
Page 76 2N TELEKOMUNIKACE a.s., www.2n.cz 76/272...
Page 77 2N TELEKOMUNIKACE a.s., www.2n.cz 77/272...
Page 78 2N TELEKOMUNIKACE a.s., www.2n.cz 78/272...
Page 79 2N TELEKOMUNIKACE a.s., www.2n.cz 79/272...
Page 80 2N TELEKOMUNIKACE a.s., www.2n.cz 80/272...
Page 81: Surface Module Mounting
Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 81/272...
Page 82 2N TELEKOMUNIKACE a.s., www.2n.cz 82/272...
Page 83 2N TELEKOMUNIKACE a.s., www.2n.cz 83/272...
Page 84 2N TELEKOMUNIKACE a.s., www.2n.cz 84/272...
Page 85 2N TELEKOMUNIKACE a.s., www.2n.cz 85/272...
Page 86 2N TELEKOMUNIKACE a.s., www.2n.cz 86/272...
Page 87 2N TELEKOMUNIKACE a.s., www.2n.cz 87/272...
Page 88 2N TELEKOMUNIKACE a.s., www.2n.cz 88/272...
Page 89 2N TELEKOMUNIKACE a.s., www.2n.cz 89/272...
Page 90 2N TELEKOMUNIKACE a.s., www.2n.cz 90/272...
Page 91 2.2.3 More Two Modules Boxes Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 91/272...
Page 92 2N TELEKOMUNIKACE a.s., www.2n.cz 92/272...
Page 93 2N TELEKOMUNIKACE a.s., www.2n.cz 93/272...
Page 94 2N TELEKOMUNIKACE a.s., www.2n.cz 94/272...
Page 95 2N TELEKOMUNIKACE a.s., www.2n.cz 95/272...
Page 96 2N TELEKOMUNIKACE a.s., www.2n.cz 96/272...
Page 97 2N TELEKOMUNIKACE a.s., www.2n.cz 97/272...
Page 98 2N TELEKOMUNIKACE a.s., www.2n.cz 98/272...
Page 99 2N TELEKOMUNIKACE a.s., www.2n.cz 99/272...
Page 100: Flush Mounting Box Mounting - Plasterboard
Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 100/272...
Page 101 2N TELEKOMUNIKACE a.s., www.2n.cz 101/272...
Page 102 2N TELEKOMUNIKACE a.s., www.2n.cz 102/272...
Page 103 2N TELEKOMUNIKACE a.s., www.2n.cz 103/272...
Page 104 2N TELEKOMUNIKACE a.s., www.2n.cz 104/272...
Page 105 2N TELEKOMUNIKACE a.s., www.2n.cz 105/272...
Page 106 2N TELEKOMUNIKACE a.s., www.2n.cz 106/272...
Page 107 2N TELEKOMUNIKACE a.s., www.2n.cz 107/272...
Page 108: Flush Module Mounting
Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 108/272...
Page 109 2N TELEKOMUNIKACE a.s., www.2n.cz 109/272...
Page 110 2N TELEKOMUNIKACE a.s., www.2n.cz 110/272...
Page 111 2N TELEKOMUNIKACE a.s., www.2n.cz 111/272...
Page 112 2N TELEKOMUNIKACE a.s., www.2n.cz 112/272...
Page 113 2N TELEKOMUNIKACE a.s., www.2n.cz 113/272...
Page 114 2N TELEKOMUNIKACE a.s., www.2n.cz 114/272...
Page 115 2N TELEKOMUNIKACE a.s., www.2n.cz 115/272...
Page 116 2N TELEKOMUNIKACE a.s., www.2n.cz 116/272...
Page 117 2N TELEKOMUNIKACE a.s., www.2n.cz 117/272...
Page 118 2N TELEKOMUNIKACE a.s., www.2n.cz 118/272...
Page 119 2N TELEKOMUNIKACE a.s., www.2n.cz 119/272...
Page 120 2N TELEKOMUNIKACE a.s., www.2n.cz 120/272...
Page 121: Surface Module Mounting
Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 121/272...
Page 122 2N TELEKOMUNIKACE a.s., www.2n.cz 122/272...
Page 123 2N TELEKOMUNIKACE a.s., www.2n.cz 123/272...
Page 124 2N TELEKOMUNIKACE a.s., www.2n.cz 124/272...
Page 125 2N TELEKOMUNIKACE a.s., www.2n.cz 125/272...
Page 126 2N TELEKOMUNIKACE a.s., www.2n.cz 126/272...
Page 127 2N TELEKOMUNIKACE a.s., www.2n.cz 127/272...
Page 128 2N TELEKOMUNIKACE a.s., www.2n.cz 128/272...
Page 129 2N TELEKOMUNIKACE a.s., www.2n.cz 129/272...
Page 130 2N TELEKOMUNIKACE a.s., www.2n.cz 130/272...
Page 131 2N TELEKOMUNIKACE a.s., www.2n.cz 131/272...
Page 132 2N TELEKOMUNIKACE a.s., www.2n.cz 132/272...
Page 133 2.2.4 Three Modules Box Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 133/272...
Page 134 2N TELEKOMUNIKACE a.s., www.2n.cz 134/272...
Page 135 2N TELEKOMUNIKACE a.s., www.2n.cz 135/272...
Page 136 2N TELEKOMUNIKACE a.s., www.2n.cz 136/272...
Page 137 2N TELEKOMUNIKACE a.s., www.2n.cz 137/272...
Page 138 2N TELEKOMUNIKACE a.s., www.2n.cz 138/272...
Page 139 2N TELEKOMUNIKACE a.s., www.2n.cz 139/272...
Page 140: Flush Mounting Box Mounting - Plasterboard
Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 140/272...
Page 141 2N TELEKOMUNIKACE a.s., www.2n.cz 141/272...
Page 142 2N TELEKOMUNIKACE a.s., www.2n.cz 142/272...
Page 143 2N TELEKOMUNIKACE a.s., www.2n.cz 143/272...
Page 144 2N TELEKOMUNIKACE a.s., www.2n.cz 144/272...
Page 145 2N TELEKOMUNIKACE a.s., www.2n.cz 145/272...
Page 146: Flush Module Mounting
Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 146/272...
Page 147 2N TELEKOMUNIKACE a.s., www.2n.cz 147/272...
Page 148 2N TELEKOMUNIKACE a.s., www.2n.cz 148/272...
Page 149 2N TELEKOMUNIKACE a.s., www.2n.cz 149/272...
Page 150 2N TELEKOMUNIKACE a.s., www.2n.cz 150/272...
Page 151 2N TELEKOMUNIKACE a.s., www.2n.cz 151/272...
Page 152 2N TELEKOMUNIKACE a.s., www.2n.cz 152/272...
Page 153 2N TELEKOMUNIKACE a.s., www.2n.cz 153/272...
Page 154 2N TELEKOMUNIKACE a.s., www.2n.cz 154/272...
Page 155 2N TELEKOMUNIKACE a.s., www.2n.cz 155/272...
Page 156 2N TELEKOMUNIKACE a.s., www.2n.cz 156/272...
Page 157 2N TELEKOMUNIKACE a.s., www.2n.cz 157/272...
Page 158 2N TELEKOMUNIKACE a.s., www.2n.cz 158/272...
Page 159: Surface Module Mounting
Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 159/272...
Page 160 2N TELEKOMUNIKACE a.s., www.2n.cz 160/272...
Page 161 2N TELEKOMUNIKACE a.s., www.2n.cz 161/272...
Page 162 2N TELEKOMUNIKACE a.s., www.2n.cz 162/272...
Page 163 2N TELEKOMUNIKACE a.s., www.2n.cz 163/272...
Page 164 2N TELEKOMUNIKACE a.s., www.2n.cz 164/272...
Page 165 2N TELEKOMUNIKACE a.s., www.2n.cz 165/272...
Page 166 2N TELEKOMUNIKACE a.s., www.2n.cz 166/272...
Page 167 2N TELEKOMUNIKACE a.s., www.2n.cz 167/272...
Page 168 2N TELEKOMUNIKACE a.s., www.2n.cz 168/272...
Page 169 2N TELEKOMUNIKACE a.s., www.2n.cz 169/272...
Page 170 2N TELEKOMUNIKACE a.s., www.2n.cz 170/272...
Page 171 2N TELEKOMUNIKACE a.s., www.2n.cz 171/272...
Page 172 2N TELEKOMUNIKACE a.s., www.2n.cz 172/272...
Page 173 2.2.5 More Three Modules Boxes Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 173/272...
Page 174 2N TELEKOMUNIKACE a.s., www.2n.cz 174/272...
Page 175 2N TELEKOMUNIKACE a.s., www.2n.cz 175/272...
Page 176 2N TELEKOMUNIKACE a.s., www.2n.cz 176/272...
Page 177 2N TELEKOMUNIKACE a.s., www.2n.cz 177/272...
Page 178 2N TELEKOMUNIKACE a.s., www.2n.cz 178/272...
Page 179 2N TELEKOMUNIKACE a.s., www.2n.cz 179/272...
Page 180 2N TELEKOMUNIKACE a.s., www.2n.cz 180/272...
Page 181 2N TELEKOMUNIKACE a.s., www.2n.cz 181/272...
Page 182 Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 182/272...
Page 183 2N TELEKOMUNIKACE a.s., www.2n.cz 183/272...
Page 184 2N TELEKOMUNIKACE a.s., www.2n.cz 184/272...
Page 185 2N TELEKOMUNIKACE a.s., www.2n.cz 185/272...
Page 186 2N TELEKOMUNIKACE a.s., www.2n.cz 186/272...
Page 187 2N TELEKOMUNIKACE a.s., www.2n.cz 187/272...
Page 188 2N TELEKOMUNIKACE a.s., www.2n.cz 188/272...
Page 189 2N TELEKOMUNIKACE a.s., www.2n.cz 189/272...
Page 190 Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 190/272...
Page 191 2N TELEKOMUNIKACE a.s., www.2n.cz 191/272...
Page 192 2N TELEKOMUNIKACE a.s., www.2n.cz 192/272...
Page 193 2N TELEKOMUNIKACE a.s., www.2n.cz 193/272...
Page 194 2N TELEKOMUNIKACE a.s., www.2n.cz 194/272...
Page 195 2N TELEKOMUNIKACE a.s., www.2n.cz 195/272...
Page 196 2N TELEKOMUNIKACE a.s., www.2n.cz 196/272...
Page 197 2N TELEKOMUNIKACE a.s., www.2n.cz 197/272...
Page 198 2N TELEKOMUNIKACE a.s., www.2n.cz 198/272...
Page 199 2N TELEKOMUNIKACE a.s., www.2n.cz 199/272...
Page 200 2N TELEKOMUNIKACE a.s., www.2n.cz 200/272...
Page 201 2N TELEKOMUNIKACE a.s., www.2n.cz 201/272...
Page 202 2N TELEKOMUNIKACE a.s., www.2n.cz 202/272...
Page 203 2N TELEKOMUNIKACE a.s., www.2n.cz 203/272...
Page 204 2N TELEKOMUNIKACE a.s., www.2n.cz 204/272...
Page 205 Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 205/272...
Page 206 2N TELEKOMUNIKACE a.s., www.2n.cz 206/272...
Page 207 2N TELEKOMUNIKACE a.s., www.2n.cz 207/272...
Page 208 2N TELEKOMUNIKACE a.s., www.2n.cz 208/272...
Page 209 2N TELEKOMUNIKACE a.s., www.2n.cz 209/272...
Page 210 2N TELEKOMUNIKACE a.s., www.2n.cz 210/272...
Page 211 2N TELEKOMUNIKACE a.s., www.2n.cz 211/272...
Page 212 2N TELEKOMUNIKACE a.s., www.2n.cz 212/272...
Page 213 2N TELEKOMUNIKACE a.s., www.2n.cz 213/272...
Page 214 2N TELEKOMUNIKACE a.s., www.2n.cz 214/272...
Page 215 2N TELEKOMUNIKACE a.s., www.2n.cz 215/272...
Page 216 2N TELEKOMUNIKACE a.s., www.2n.cz 216/272...
Page 217 2N TELEKOMUNIKACE a.s., www.2n.cz 217/272...
Page 218 2N TELEKOMUNIKACE a.s., www.2n.cz 218/272...
Page 219 2.2.6 Tamper and I/O Module 2N TELEKOMUNIKACE a.s., www.2n.cz 219/272...
Page 220 2N TELEKOMUNIKACE a.s., www.2n.cz 220/272...
Page 221: Electric Installation
2.3 Electric Installation ® This subsection describes how to install the modules, how to connect the 2N Helios IP Verso main unit to the power supply and LAN and how to connect other elements. Mounting Preparation Unscrew the second module cover on the main unit base.
Page 222: Lan Connection
Main Unit Power Supply Connection ® Helios IP Verso can be powered either from an external 12 V / 2 A DC source or directly from the LAN equipped with PoE 802.3af supporting network elements. Owing to different power outputs, the power supply selection affects the maximum count and applicability of the modules connected of the main unit.
Page 223: Main Unit Connector Configuration
< 1.5 V OUT1 OUT1 terminals of active input for 2N® Helios IP Security Relay or electric lock connection 8 up to 12 V DC depending on power supply (PoE: 10 V; adaptor: power supply voltage minus 2 V), max 400 mA...
Page 224 LINE LINE OUT connector (1 V MIC connector for microphone connection ® Helios IP Verso bus connector Wiring Diagram of IN1 connector in active mod Wiring Diagram of IN1 connector in passive mod Device Restart Factory Reset ® Helios IP Verso is equipped with a RESET button.
Page 225 Wait until the red and green LEDs on the device come on simultaneously (approx. 20 s). Wait until the red LED goes off (approx. 5 s). Wait until the green LED goes off and the red LED comes on again (another 5 s). Release the RESET button. 2N TELEKOMUNIKACE a.s., www.2n.cz 225/272...
Page 226 In case of resetting the factory default settings on a device with a version of firmware 2.18 or higher it is necessary to reprogram the ® Helios IP Security Relay using the instructions from section 2N TELEKOMUNIKACE a.s., www.2n.cz 226/272...
Page 227: Available Switches
Passive relay switch: NO and NC contacts, up to 30 V / 1 A AC/DC Module* relay1 (Part No. ext. Passive relay switch: NO and NC contacts, up to 30 V / 1 A AC/DC 9155034) relay2 More modules marked by * can be used. 2N TELEKOMUNIKACE a.s., www.2n.cz 227/272...
Page 228 For this way of protection we recommend a diode 1 A / 1000 V (e.g., 1N4007, 1N5407, 1N5408) connected antiparallel to the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 228/272...
Page 229: Extending Module Connection
2.4 Extending Module Connection ® Helios IP Verso allows to connect following extending modules: Infopanel Keypad RFID card reader 125 kHz RFID card reader 13.56 MHz RFID card reader 13.56 MHz NFC Secured RFID card reader 13.56 MHz Bluetooth Module...
Page 230: Module Power Supply
Module Power Supply ® Except for the protection switch module, all the Helios IP Verso modules are powered from the bus. The available bus power output depends on the power supply type. Main units 571v3 and higher can use a 3A power supply to increase the bus power available for the modules connected.
Page 231 LED – call 0.072 LED – ringing 0.072 LED – lock 0.072 LED – secured 0.096 Button backlight 0.072 name tag backlight 0.072 Unit backlight 0.072 Relay 1 0.132 OUT 1 Audio 2.94 Total 13.84 2N TELEKOMUNIKACE a.s., www.2n.cz 231/272...
Page 232 Bluetooth Module 0.15 Specimen configuration consumption computation Module Minimum consumption Maximum consumption Main unit 2.38 13.84 RFID card reader 13.56 MHz (583v2) 0.42 0.89 I/O module (577v2) 0.35 0.66 5-button module (578v2) 0.15 0.98 2N TELEKOMUNIKACE a.s., www.2n.cz 232/272...
Page 233: Infopanel Module
0.13 W for relay closing (not calculated for minimum consumption). Infopanel Module ® The Infopanel module (Part No. 9155030) is one of the Helios IP Verso intercom elements and is used for inserting and backlighting printed information. ® The module contains two Helios IP Verso bus connectors.
Page 234: Keypad Module
The module package includes a 220 mm long interconnecting cable. RFID Card Reader Module 125 kHz ® The 125 kHz RFID Card Reader (Part No. 9155032) is one of the 2N Helios IP Verso intercom elements and is used for reading RFID card Ids in the 125 kHz band.
Page 235: Secured Rfid Card Reader 13.56 Mhz
JIS X 6319 Felica RFID Card Reader 13.56 MHz NFC ® The 13.56 MHz RFID Card Reader (Part No. 9155040) is one of the 2N Helios IP Verso intercom elements and is used for reading RFID card Ids in the 13.56 MHz band.
Page 236: Induction Loop Module
Short circuit resistence: without limitation Bluetooth Module The Bluetooth Smart model ( obj. č. 9155046 ) is one of the 2N intercom elements and is used for reading users secure ID numbers from the application of smart phones Android and iOS. ®...
Page 237 8 and higher I/O Module ® The I/O module (Part No. 9155034) is one of the Helios IP Verso intercom elements and is used for extending the number of inputs and outputs. ® The module contains two Helios IP Verso bus connectors.
Page 238: Button Module
Touch Display ® The Touch Display (Part No. 9155036) module is designed for the 2N Helios IP Verso communicator. This module can be used as: Infopanel module – displays user defined image sequences Keypad module – virtual touch keypad Button module –...
Page 239: Wiegand Module
Wiegand device (RFID card reader, ® fingerprint or other biometric data reader) and/or connecting the 2N Helios IP Verso system to an external security exchange. All the inputs and outputs are galvanically ®...
Page 240 Isolated input for open LED IN, input activated by GND2 (negated) LED IN Isolated input for open LED IN, input activated by +U WIEGAND OUT active supply LED indicator TAMPER Tamper switch (Part No. 9155038 ) input 2N TELEKOMUNIKACE a.s., www.2n.cz 240/272...
Page 241: Tamper Switch Module
Tamper Switch Module ® The Tamper Switch module (Part No. 9155038) is one of the 2N Helios IP Verso intercom elements and helps secure the system against tampering. The module contains two switches that open whenever the front frame is...
Page 242: Security Relay
Helios IP Security Relay is a device installed between an intercom (outside ® the secured area) and the electric lock (inside the secured area). The 2N Helios IP Security Relay includes a relay that can only be activated if the valid opening code is received from the intercom.
Page 243: Status Signalling
HeliosIP’ terminals. Press the Departure button to activate the output for 5 seconds. Status signalling: Green LED Red LED Status blinking Operational mode Activated output blinking blinking Programming mode – waiting for initialisation blinking Error – wrong code received 2N TELEKOMUNIKACE a.s., www.2n.cz 243/272...
Page 244 Helios IP Security Relay using the instructions above. ® FAQ: 2N Helios IP Security Relay – what it is and how to use it with 2N Helios IP intercom? ® Video Tutorial: Door intercoms 2N Helios IP – Security Relay 2N TELEKOMUNIKACE a.s., www.2n.cz...
Page 245 Connection: 2N TELEKOMUNIKACE a.s., www.2n.cz 245/272...
Page 246: Installation Completion
Nametag inserting/replacing: Remove the frame. Lift up the button door. The 5-button module buttons have just one door. Remove the used nametag and insert a new one. Close the button door. 2N TELEKOMUNIKACE a.s., www.2n.cz 246/272...
Page 247: Frame Replacement
Make sure that the bases are levelled properly to avoid water leakage and electronic damage. The examples in the figures below show incorrectly assembled bases. This happens, in particular, where the screws are tightened first. 2N TELEKOMUNIKACE a.s., www.2n.cz 247/272...
Page 248 2N TELEKOMUNIKACE a.s., www.2n.cz 248/272...
Page 249: Function And Use
3. Function and Use ® This section describes the basic and extending functions of the the 2N Helios IP Verso product. Here is what you can find in this section: 3.1 Configuration 3.2 Intercom Control as Viewed by External User 3.3 Touch Display Intercom Control As Viewed by External User...
Page 250: Ip Address Retrieval
Press the quick dial button on the main unit 5 times. ® Helios IP Verso will read its IP address. If the address is 0.0.0.0, it means that the intercom has not obtained the IP address from the DHCP server.
Page 251: Dynamic/Static Ip Address Switching
Up to 2 s intervals are allowed between the presses. Dynamic/Static IP Address Switching Take the following steps to switch the dynamic and static IP address mode in ® Helios IP Verso ® Connect (or, if connected, disconnect and reconnect) Helios IP Verso to the power supply.
Page 252 IP address: 192.168.1.100 Network mask: 255.255.255.0 Default gateway: 192.168.1.1 Note Be sure to press the button sequence within thirty seconds after the sound signal for security reasons. Up to 2 s intervals are allowed between the presses. 2N TELEKOMUNIKACE a.s., www.2n.cz 252/272...
Page 253: Intercom Control As Viewed By External User
Keyboard subsection of Configuration Manual. Calling to Phone Book Position ® Helios IP Verso Phone Book can contain up to 1999 programmable positions. The quick dial buttons can only be used for positions 1 through 146, depending on the number of actually installed buttons. You can dial the other positions using the...
Page 254: Incoming Call Answering/Rejecting
Door Opening (Switch Activation) by Code ® Helios IP Verso is equipped with a door unlocking switch. Enter the valid code (refer to the Intercom Configuration / Hardware / Switches subsection of Configuration Manual) using the numeric keypad to activate this switch.
Page 255: Profile Activation/Deactivation
A valid code is signalled by the sound according to the code type. An invalid code or interruption longer than as defined in Timeout for Entering Numbers is signalled by the sound. 2N TELEKOMUNIKACE a.s., www.2n.cz 255/272...
Page 256 Until the display configuration is loaded, Helios IP Verso displays no users ® to be called in the Directory menu. If configured properly, the 2N Helios IP Verso starts displaying an Ad menu or the Directory/Keypad introductory menu or separate ®...
Page 257 You can also enable Scramble keypad in the Keypad mode via the web interface to scramble the numerical keypad buttons before every new display in order to prevent third persons from seeing the code to be entered. 2N TELEKOMUNIKACE a.s., www.2n.cz 257/272...
Page 258: Intercom Control As Viewed By Internal User
Door Opening (Switch Activation) by Code ® Helios IP Verso is equipped with a door unlocking switch. Enter the valid code (refer to the Intercom Configuration / Hardware / Switches subsection of Configuration Manual) using your phone keypad to activate this switch.
Page 259 A valid code is signalled by the sound according to the code type. An invalid code or interruption longer than as defined in Timeout for Entering Numbers is signalled by the sound. 2N TELEKOMUNIKACE a.s., www.2n.cz 259/272...
Page 260 Use suitable cleaning agents for glass lens cleaning (cleaners for glasses, optic devices screens, etc.) Clean the device in dry weather in order to make waste water evaporate quickly. Warning Prevent water from getting inside the intercom. Do not use alcohol-based cleaners. 2N TELEKOMUNIKACE a.s., www.2n.cz 260/272...
Page 261 3.6 Downloads Templates Nameplates Infopanel label Software 2N® Helios IP USB driver 1.0.6 2N® Helios IP eye 1.1.4.0.19 2N® Helios IP network scanner 3.0.4 2N TELEKOMUNIKACE a.s., www.2n.cz 261/272...
Page 262: Technical Parameters
JPEG resolution: up to 1280 (H) × 960 (V) Video resolution: 640 (H) × 480 (V) Frame rate: up to 30 snapshots/s Sensor sensitivity: 5.6 V/lux-sec (550 nm) View angle: 128 ° (H), 95 ° (V), 134 ° (D) 2N TELEKOMUNIKACE a.s., www.2n.cz 262/272...
Page 263 LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 Recommended cabling: Cat-5e or higher Supported protocols: SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF Passive switch: NO/NC contact, up to 30 V / 1 A AC/DC 2N TELEKOMUNIKACE a.s., www.2n.cz 263/272...
Page 264 Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultralight C ISO/IEC 14443B CEPAS, HID iCLASS JIS X 6319 Felica ISO/IEC 18092 SmartPhone with NFC/HCE support, since Android version 4.3 Touch display Resolution: 320 px x 214 px H x V 2N TELEKOMUNIKACE a.s., www.2n.cz 264/272...
Page 265 2 moduls: 108 (W) x 238 (H) x 45 (D) mm 3 moduls: 108 (W) x 343 (H) x 45 (D) mm Weight: max net weight: 2 kg / max gross weight: 2.5 kg – based on configuration Covering level: IP54 Resistance level: IK08 2N TELEKOMUNIKACE a.s., www.2n.cz 265/272...
Page 266: Supplementary Information
5. Supplementary Information Here is what you can find in this section: 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 266/272...
Page 267: Troubleshooting
5.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 267/272...
Page 268: Directives, Laws And Regulations
5.2 Directives, Laws and Regulations Europe ® Helios IP Verso conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 - on radio equipment and telecommunications terminal equipment and the mutual...
Page 269 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 269/272...
Page 270: General Instructions And Cautions
The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 270/272...
Page 271: Electric Waste And Used Battery Pack Handling
Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 271/272...
Page 272 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v2.9 2N TELEKOMUNIKACE a.s., www.2n.cz 272/272...

2N Helios IP Verso Installation Manual

Quick Links

Need help?

Questions and answers

Related Manuals for 2N Helios IP Verso

Summary of Contents for 2N Helios IP Verso

Table of Contents
