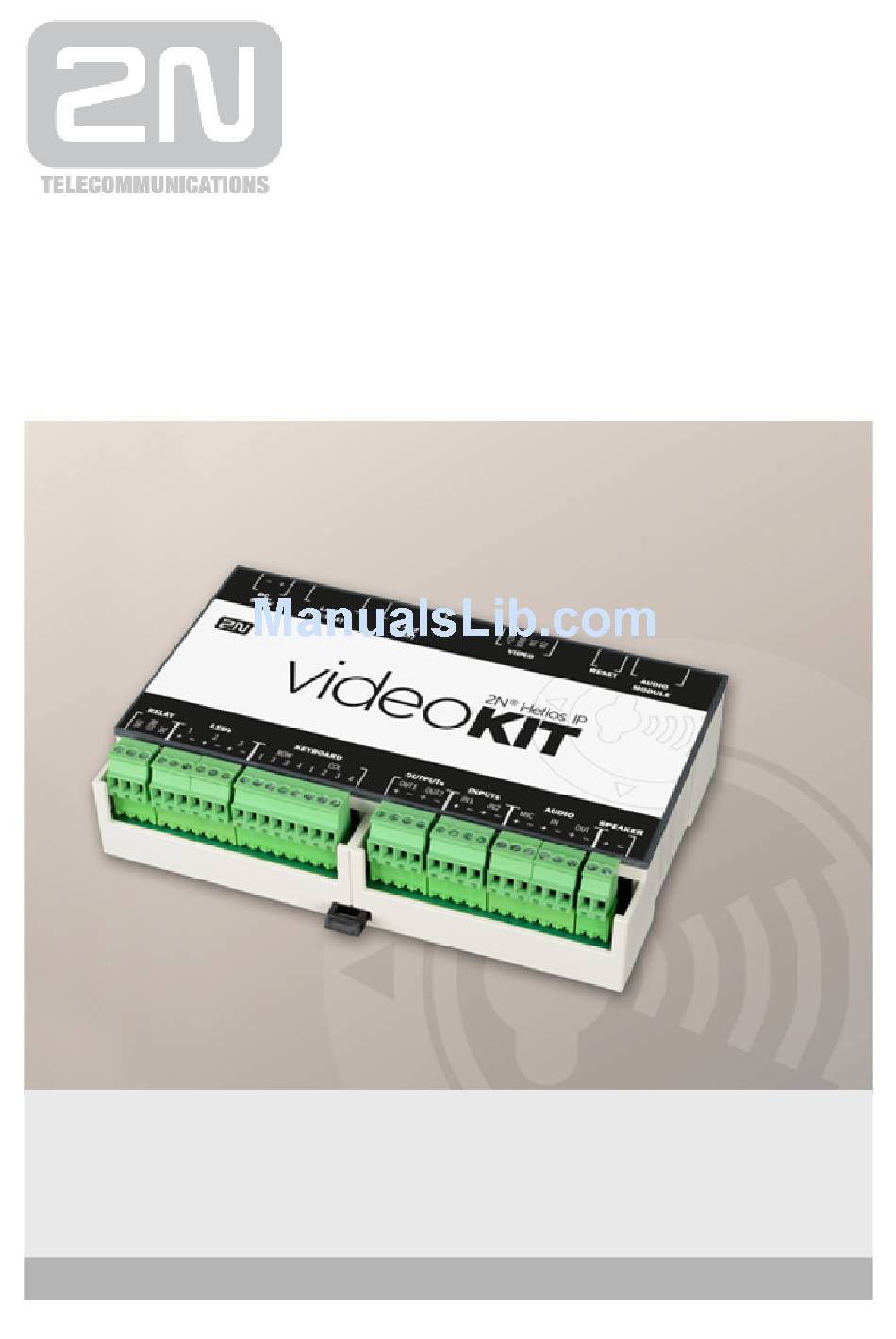

- Page 1 ® Helios IP Video Kit Door Access Intercom Installation Manual Version 1.0.2 www.2n.cz ...
- Page 2 2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www.faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...“.
-
Page 3: Table Of Contents
Content 1. Product Overview ........4 1.1 Components and Associated Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ... -
Page 4: Product Overview

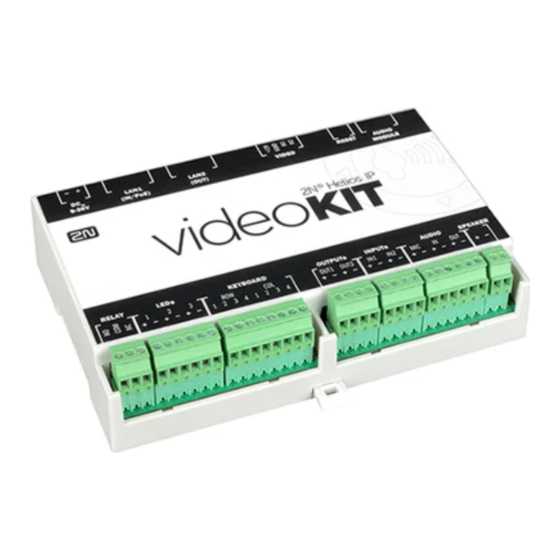

Helios IP Video Kit is equipped with two galvanically isolated digital inputs and three status signalling outputs. ® Helios IP Video Kit is very easy to install. All you have to do is connect it to your LAN using the LAN cable. An integrated two-port LAN switch simplifies installation ®... -
Page 5: Advantages Of Use
LAN infrastructure. Supply the intercom either from a 9-36V source or directly from your POE supporting LAN. ® Use a PC web browser to configure your Helios IP Video Kit . Apply the Manager to administer extensive intercom installations easily and quickly. -
Page 6: Components And Associated Products
Intercom module in plastic box Intercom module without box VoIP Telephones 91378351 91378354 Grandstream GXV3140 VoIP video telephone Grandstream GXV3175 VoIP telephone Electric Locks 932070E 932080E 932090E BEFO 1211 12V / 600 BEFO 1221with BEFO 1211MBwith mechanical momentum pin blocking ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 7: Power Supply
Adapter 12 V/2 A 91378100E 932928E A stabilised power supply has to be used if the 91378100US 12 V transformer Ethernet PoE injector (PoE) power supply is not available. Additional Modules 9159010 9137410E Security Relay External IP relay ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 8: Terms And Symbols
Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 9: Description And Installation
2. Description and Installation Product Completeness Check ® Before installing this product, please check whether the Helios IP Video Kit deliv ery complies with the following packing list. ® 1x 2N Helios IP Video Kit 1x Short Installation Manual Here is what you can find in this section: 2.1 Mechanical Installation... -
Page 10: Mechanical Installation
PCB mounting (for Part No. 9154101 only) Use 4 – 6 distance columns and proper screws (not included in the delivery) to mount the PCB to the support. Fix the distance columns as shown in the figure. ® TELEKOMUNIKACE a.s., www.2n.cz... - Page 11 When the proper mounting instructions are not met, water might get in and destroy the electronics. It is because the intercom circuits are under continuous voltage and water infiltration causes an electro-chemical reaction. The manufacturer's warranty shall be void for products damaged in this way! ® TELEKOMUNIKACE a.s., www.2n.cz...
-
Page 12: Electric Installation
2.2 Electric Installation ® This subsection describes how to connect the Helios IP Video Kit into your Local Area Network (LAN) and how to connect supply voltage and other electric interfaces. Device and PCB Connectors ® Figs. 1 and show the layout of the... - Page 13 ® Helios IP Video Kit is equipped with two LAN interfaces (LAN1 and LAN2) and an integrated Ethernet switch. You can use only LAN1 interfaces for LAN connection. LAN1 is the only interface provided with PoE. LAN2 helps connect another LAN device on the installation site.
- Page 14 Connection of External Power Supply ® Helios IP Video Kit can be supplied either from an external 9-36/2A DC source or directly from the LAN provided with the PoE 802.3af supporting network elements. External Power Supply Connect the external 12V power supply to the DC in terminals. Use safety low-voltage voltage (SELV, 9-36V) dimensioned for the minimum current consumption of 1.5A (Part...
- Page 15 Connection of Keypad/Buttons ® Helios IP Video Kit is equipped with an interface for connection of an external matrix keypad or up to 16 separate buttons; see the figure below: The buttons are connected in a 4x4 matrix to the ROW1-4 (output) and COL1-4 (inputs) terminals.
- Page 16 Connection of External Amplifier ® Helios IP Video Kit is equipped with a line output for connection of an external power amplifier on the LINE OUT+ and LINE OUT- terminals. Connection of External Audio Source ®...
- Page 17 Connection to Digital Inputs ® Helios IP Video Kit is equipped with two digital inputs on the IN1+- and IN2+- terminals. The digital inputs recognise the following two logic levels: log. 0 for voltage under 1.1V a log. 1 for voltage over 3V. Keep the voltage polarity to make the function ®...
-
Page 18: Configuration
Dynamic IP address mode, i.e. it obtains the IP address automatically if there is an adequately set DHCP server in the ® LAN. If no such server is available, set the Static IP address mode to your 2N Helios IP Video Kit Refer to the Configuration manual 2N®... - Page 19 Wait until the red LED goes off (approx. 5s). Wait until the green LED goes off and the red LED comes on again (approx. 5s). Wait until the green LED goes off (another 5s). 5 s5 s5 sabout 10sHold RESET Release the RESET button. ® TELEKOMUNIKACE a.s., www.2n.cz...
-
Page 20: Technical Parameters
Parameters – 10/100BASE-TX with Auto-MDIX, RJ-45 Recommended cabling – Cat-5e or higher Video Interface Video input count – 2 (IN1, IN2) Video input format – PAL or NTSC composite signal Camera power supply – 12V, max 500mA (+12V, VGND) ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 21: Audio Interface
Characteristics – Uin < 1.1V (L), Uin > 3V (H), max. Uin = 32V Relay Output Output count – 1 (NC, NO, COM terminals) Output function – User programmable Limits (DC) – Up to 30VDC/1A Limits (AC) – Up to 125VAC/0.3A ® TELEKOMUNIKACE a.s., www.2n.cz... - Page 22 IP20 (Part No. 9154100) IP00 (Part No. 9154101) Note If you feed the device from a DC power source and the supply voltage is lower than 12V, then the output voltage is limited to the supply voltage value. ® TELEKOMUNIKACE a.s., www.2n.cz...
-
Page 23: Supplementary Information
4. Supplementary Information Here is what you can find in this section: 4.1 Troubleshooting 4.2 Directives, Laws and Regulations 4.3 General Instructions and Cautions ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 24: Troubleshooting
4.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 25: Directives, Laws And Regulations
4.2 Directives, Laws and Regulations Europe ® Helios IP Video Kit conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 – on radio equipment and telecommunications terminal equipment and the mutual... - Page 26 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. ® TELEKOMUNIKACE a.s., www.2n.cz...
-
Page 27: General Instructions And Cautions
The manufacturer also assumes no responsibility for additional costs incurred by the consumer as a result of making calls using a line with an increased tariff. ® TELEKOMUNIKACE a.s., www.2n.cz... -
Page 28: Electric Waste And Used Battery Pack Handling
Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. ® TELEKOMUNIKACE a.s., www.2n.cz... - Page 29 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz 1940v1.0.0 ® TELEKOMUNIKACE a.s., www.2n.cz...
