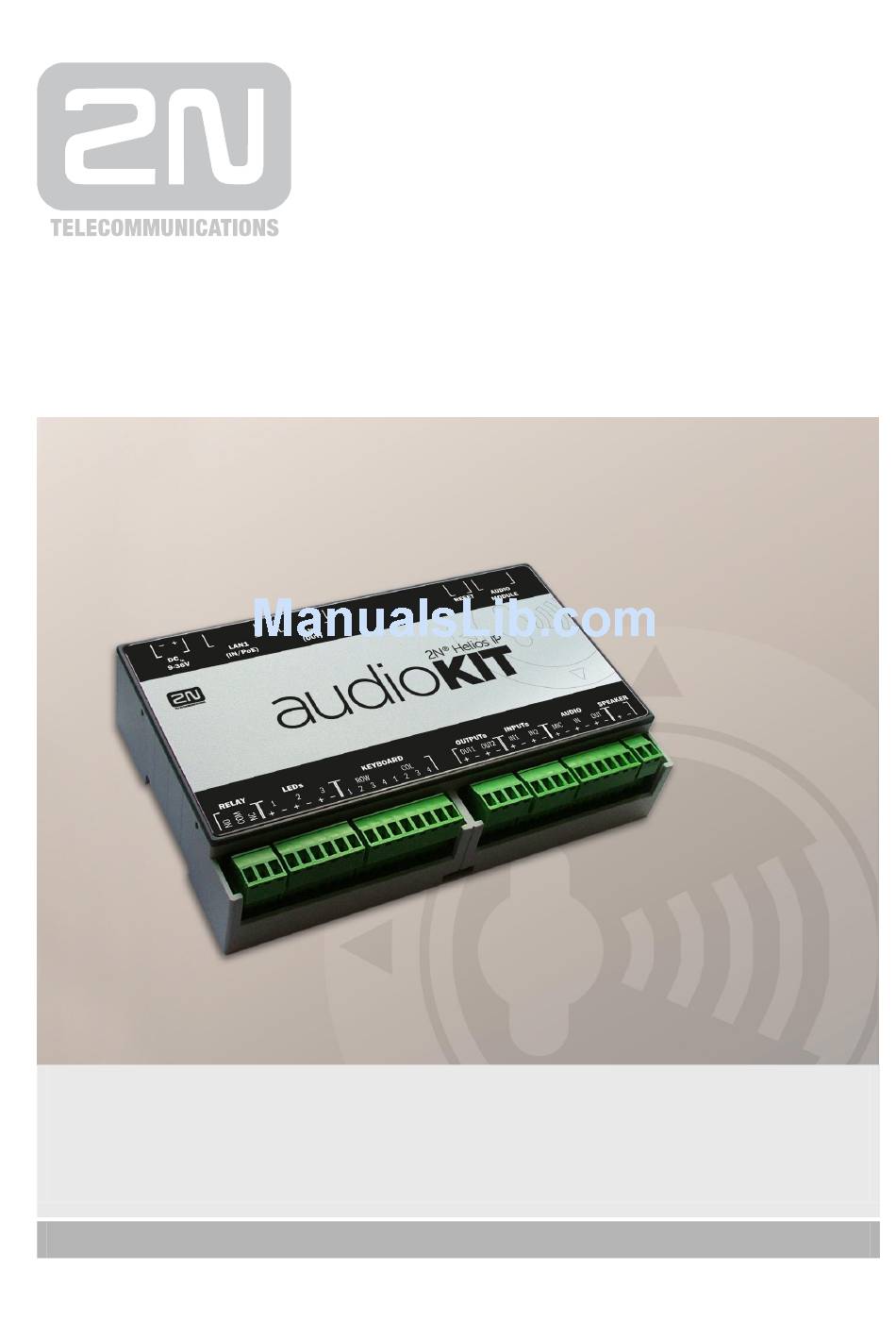

- Page 1 ® Helios IP Audio Kit IP Intercom Module Installation Manual www.2n.cz Version 1.0.0...
- Page 2 The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years and represented a symbol of stability and prosperity on the telecommunications market for almost two decades.
-
Page 3: Table Of Contents
Product Description ....................... 2 Basic Features........................2 Advantages of Use ......................3 Upgrade ........................... 4 ® Helios IP Audio Kit Components and Associated Products ......5 Basic Units ........................5 VoIP Telephones ......................6 Electric Locks ........................6 Power Supply ........................6 Additional Modules ...................... -
Page 4: Product Overview
Helios IP Audio Kit product, outline its application options and highlight the advantages following from its use. Here is what you can find in this section: Product Description Upgrade ® Helios IP Audio Kit Components and Associated Products ... -
Page 5: Product Description
® Helios IP Audio Kit is very easy to install. All you have to do is connect it to your LAN using the LAN cable. An integrated two-port LAN switch simplifies installation on sites with a limited LAN infrastructure. Supply the intercom either from a 9-36V source or directly from your POE supporting LAN. -
Page 6: Advantages Of Use
Product Description Advantages of Use Industrial design and variable mounting options Wide supply power range + PoE supply Integrated 10W power amplifier External amplifier connection External microphone/audio signal source connection Galvanically isolated relay output Two controlled active 12V outputs ... -
Page 7: Upgrade
Upgrade 1.2 Upgrade The manufacturer reserves the right to modify the product in order to improve its qualities. Version Changes... -
Page 8: Helios Ip Audio Kit Components And Associated Products
2N® Helios IP Audio Kit Components and Associated Products ® 1.3 2N Helios IP Audio Kit Components and Associated Products Basic Units 9154100 9154101 Intercom module in Intercom module plastic box without box... -
Page 9: Voip Telephones
2N® Helios IP Audio Kit Components and Associated Products VoIP Telephones 91378350 91378351 Grandstream GXV3140 Grandstream GXV3175 VoIP video telephone VoIP telephone Electric Locks 932070E 932080E 932090E BEFO 1211 12V / 600 mA BEFO 1221 BEFO 1211MB with momentum pin... -
Page 10: Additional Modules
2N® Helios IP Audio Kit Components and Associated Products Additional Modules 9159010 9137410E Security Relay External IP relay... -
Page 11: Terms And Symbols
Terms and Symbols 1.4 Terms and Symbols Symbols Safety Warning Always abide by this information to prevent injury of persons! Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. ... -
Page 12: Description And Installation
Description and Installation ® In this section we describe the 2N Helios IP Audio Kit product and its installation. Here is what you can find in this section: Before You Start Mechanical Installation Electric Installation ... -
Page 13: Before You Start
Before You Start 2.1 Before You Start Product Completeness Check ® Before installing this product, please check whether the 2N Helios IP Audio Kit delivery complies with the following packing list. ® 1 2N Helios IP Audio Kit 1 Short Installation Manual... -
Page 14: Mechanical Installation
Mechanical Installation 2.2 Mechanical Installation Mounting Types Refer to the table below for a list of mounting types and necessary components. Make sure that the installation site is not exposed to flowing or condensed water. Wall mounting Use the proper wall mounting screws and dowels (not included in the delivery). - Page 15 Mechanical Installation Caution The warranty does not apply to the product defects and failures arisen as result improper mounting contradiction herewith). manufacturer is neither liable for damage caused by theft within an area that is accessible after the attached electric lock is switched. The product is not designed as a burglar protection device except when used in combination with a standard lock, which has the security function.
-
Page 16: Electric Installation

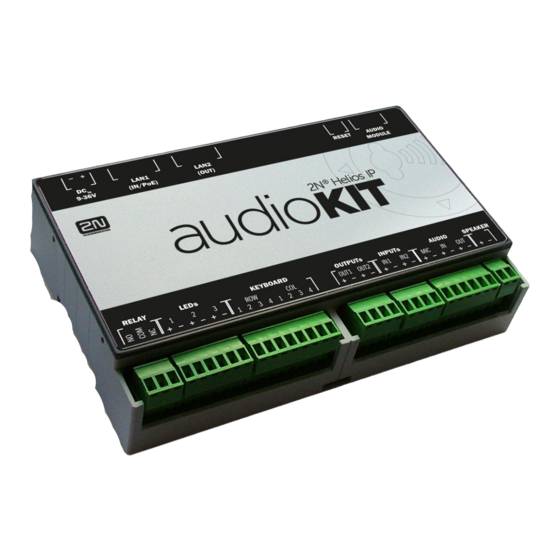

Helios IP Audio Kit into your Local Area Network (LAN) and how to connect supply voltage and other electric interfaces. Device and PCB Connectors ® Figs. 2.1 and 2.2 show the layout of the 2N Helios IP Audio Kit connectors and terminals. ®... - Page 17 Electric Installation Legend Group Terminals Function DC in 9-36V/1.5A power input LAN1 LAN connection with PoE function LAN2 LAN connection Integrated red and green LED indicators RESET RESET multifunction button AUDIO Connection of an audio module with microphone, MODULE loudspeaker, buttons and LEDs RELAY NO, COM, NC Programmable relay switch with an accessible N/O and...
- Page 18 Helios IP Audio Kit to the LAN via the LAN1 interface to supply it successfully. Caution In case you feed your 2N® Helios IP Audio Kit via PoE or from a limited- power external power supply, monitor the power consumption of the whole system.
- Page 19 ® Helios IP Configuration Manual for details. Connection of Keypad/Buttons ® Helios IP Audio Kit is equipped with an interface for connection of an external matrix keypad or up to 16 separate buttons; see the figure below: COL1 COL2 COL3...
- Page 20 Connection of External Loudspeaker ® Helios IP Audio Kit is equipped with an integrated 10W power amplifier of class D. The amplifier output is available on the SPEAKER+ and SPEAKER- terminals. The maximum power is achievable with a 4Ω loudspeaker only. The higher the loudspeaker impedance, the lower the maximum power output;...
- Page 21 Connection to Digital Inputs ® Helios IP Audio Kit is equipped with two digital inputs on the IN1+- and IN2+- terminals. The digital inputs recognise the following two logic levels: log. 0 for voltage under 1.1V a log. 1 for voltage over 3V. Keep the voltage polarity to make the function work properly.
-
Page 22: Device Configuration
Helios IP Audio Kit is in the Dynamic IP address mode, i.e. it obtains the IP address automatically if there is an adequately set DHCP server in the ® LAN. If no such server is available, set the Static IP address mode to your 2N Helios ®... - Page 23 Electric Installation about 10s Hold RESET The following network parameters will be set after restart: IP address: 192.168.1.100 Nework mask: 255.255.255.0 Default gateway: 192.168.1.1 Follow the instructions below to switch on the Dynamic IP address mode (DCHP OFF): Press the RESET button. ...
-
Page 24: Technical Parameters
Technical Parameters ® In this section we describe the technical parameters of the 2N Helios IP Audio Kit product. -
Page 25: Technical Parameters
Technical Parameters 3.1 Technical Parameters Supported Protocols LAN interface IPv4, ARP, TCP, UDP, DHCP Device configuration HTTP/HTTPS Call signalling SIP 2.0 (UDP) Audio data RTP (G.711) transmission Audio streaming RTSP Time synchronisation SNTP Auto provisioning TFTP E-mail sending SMTP Power Supply External power supply Typ. - Page 26 The manufacturer reserves the right to modify the product in order to improve its qualities. 2N Helios IP Audio Kit contains no environmentally harmful components. When the product’s service life is exhausted, dispose of it in accordance with applicable legal...
-
Page 28: Supplementary Information
Supplementary Information ® This section provides supplementary information on the 2N Helios IP Audio Kit product. Here is what you can find in this section: Applicable Directives, Laws and Regulations ... -
Page 29: Directives, Laws And Regulations
Directives, Laws and Regulations 4.1 Directives, Laws and Regulations ® Helios IP Audio Kit conforms to the following directives, laws and regulations: Act No. 22/1997 Coll. Of January 24, 1997 on technical requirements of products and amendments to some laws Directive 1999/5/EC of the European Parliament and of the Council, of 9 ... -
Page 30: Troubleshooting
Troubleshooting 4.2 Troubleshooting For tips concerning solutions of other potential problems see faq.2n.cz. -
Page 31: General Instructions And Cautions
General Instructions and Cautions 4.3 General Instructions and Cautions Please read this Installation Manual carefully before using the product. Follow all instructions and recommendations included herein. Any use of the product that is in contradiction with the instructions provided herein may result in malfunction, damage or destruction of the product. -
Page 32: Electric Waste And Used Battery Pack Handling
General Instructions and Cautions Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental-friendly disposal. - Page 33 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Praha 4, Česká Republika Tel.: +420 261 301 111, Fax: +420 261 301 999 E-mail: obchod@2n.cz Web: www.2n.cz 1889v1...
