Publickey Authentication Enabled Stelnet Server Configuration Example - HPE FlexNetwork 5510 HI Series Security Configuration Manual

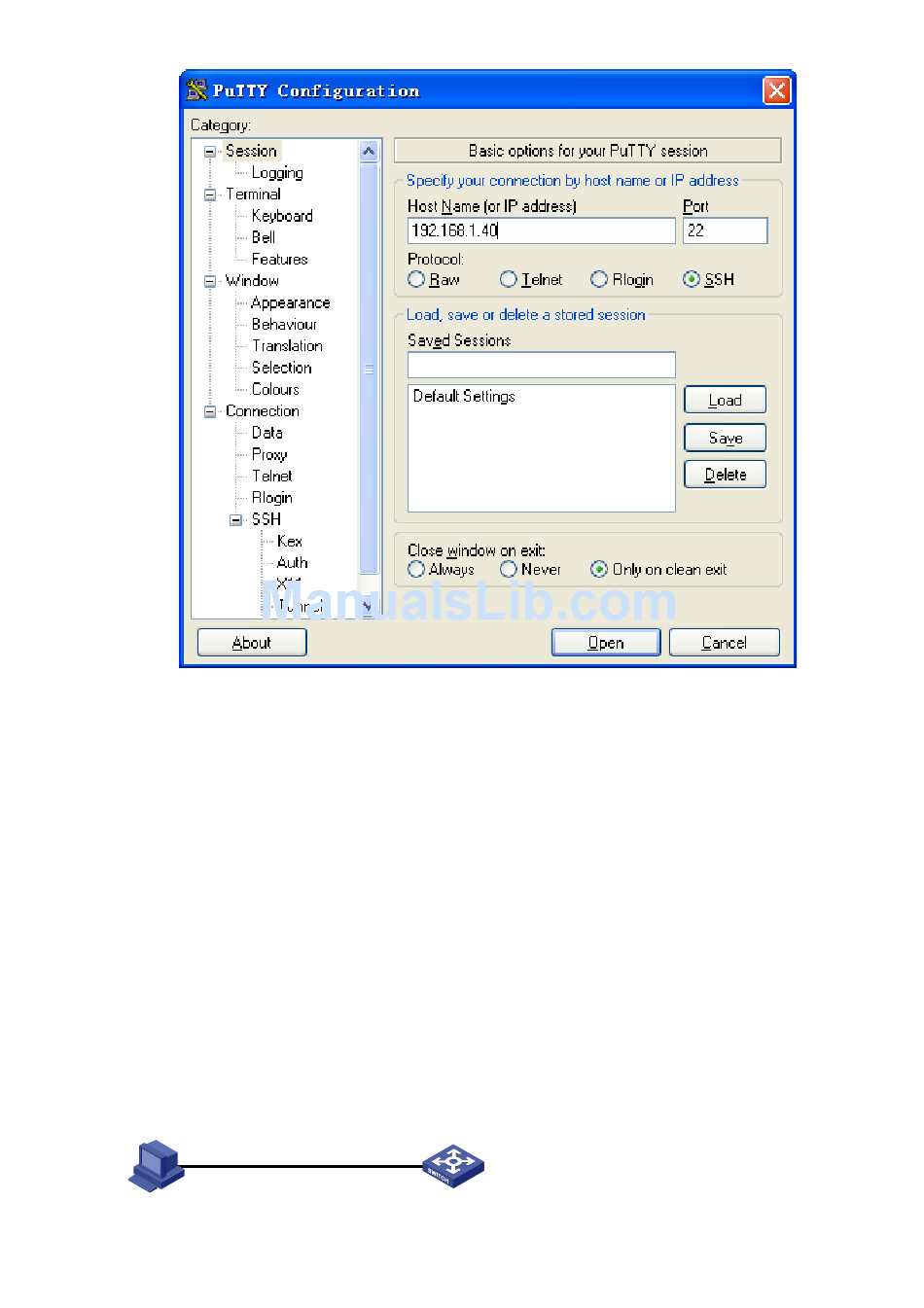

Figure 96 Specifying the host name (or IP address)
c. Click Open to connect to the server.
If the connection is successfully established, the system notifies you to enter the username and
password. After entering the username (client001 in this example) and password (aabbcc in
this example), you can enter the CLI of the server.
Publickey authentication enabled Stelnet server
configuration example
Network requirements
As shown in
•
You can log in to the switch through the Stelnet client (SSH2) that runs on the host.
•
After login, you are assigned the user role network-admin for configuration management.
•
The switch acts as the Stelnet server and uses publickey authentication and the RSA public key
algorithm.
Figure 97 Network diagram
Stelnet client
192.168.1.56/24
Host
Figure 97:
Vlan-int2
192.168.1.40/24
Stelnet server
Switch
356
