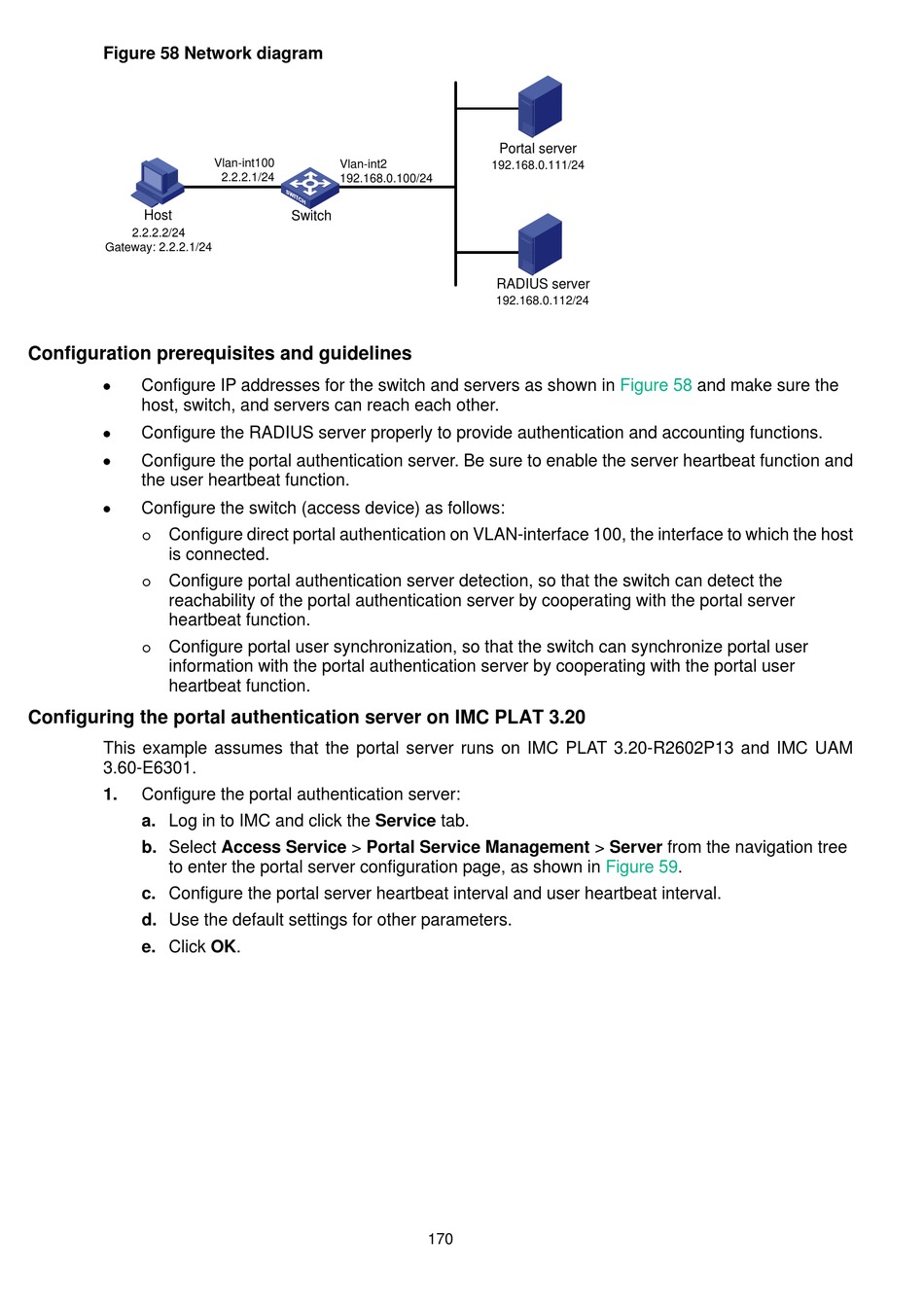

Figure 58 Network diagram
Host
2.2.2.2/24
Gateway: 2.2.2.1/24
Configuration prerequisites and guidelines
•
Configure IP addresses for the switch and servers as shown in
host, switch, and servers can reach each other.
•
Configure the RADIUS server properly to provide authentication and accounting functions.
•
Configure the portal authentication server. Be sure to enable the server heartbeat function and
the user heartbeat function.
•
Configure the switch (access device) as follows:
Configure direct portal authentication on VLAN-interface 100, the interface to which the host

is connected.
Configure portal authentication server detection, so that the switch can detect the

reachability of the portal authentication server by cooperating with the portal server
heartbeat function.
Configure portal user synchronization, so that the switch can synchronize portal user

information with the portal authentication server by cooperating with the portal user
heartbeat function.
Configuring the portal authentication server on IMC PLAT 3.20
This example assumes that the portal server runs on IMC PLAT 3.20-R2602P13 and IMC UAM
3.60-E6301.
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select Access Service > Portal Service Management > Server from the navigation tree
to enter the portal server configuration page, as shown in
c. Configure the portal server heartbeat interval and user heartbeat interval.
d. Use the default settings for other parameters.
e. Click OK.
Vlan-int100
Vlan-int2
2.2.2.1/24
192.168.0.100/24
Switch
Portal server
192.168.0.111/24
RADIUS server
192.168.0.112/24
170
Figure 58 and make sure the
Figure 59.
