HPE FlexNetwork 5510 HI Series Security Configuration Manual page 185

g. Set whether to support the portal server heartbeat and user heartbeat functions.
In this example, select Yes for both Support Server Heartbeat and Support User
Heartbeat.
h. Click OK.

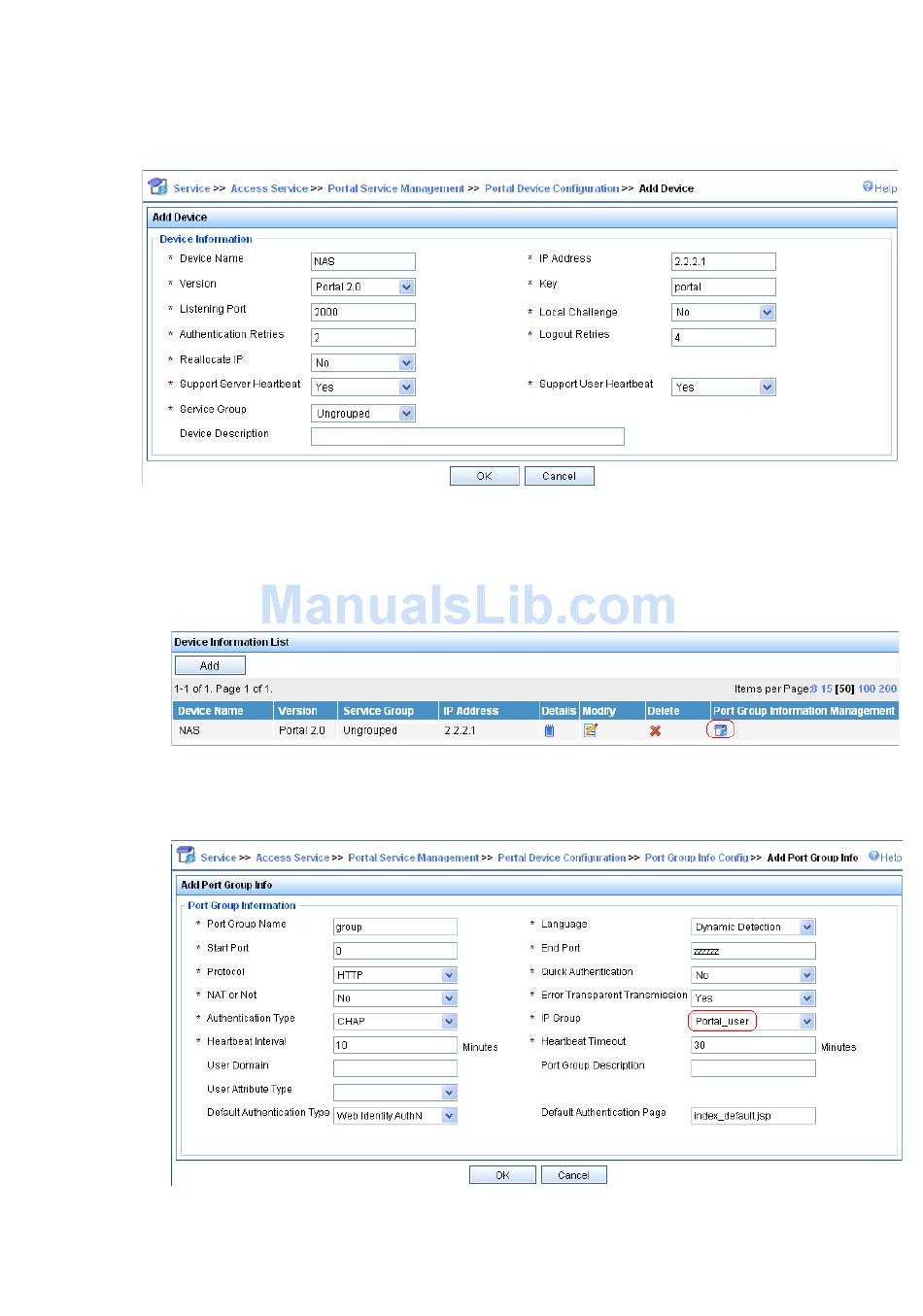

Figure 61 Adding a portal device
4. Associate the portal device with the IP address group:
a. As shown in Figure
of device NAS to enter the port group configuration page.
Figure 62 Device list
b. Click Add to enter the page shown in
Figure 63 Port group configuration
c. Enter the port group name.
d. Select the configured IP address group.
62, click the icon in the Port Group Information Management column
Figure
172
63.
